Shape Cutting Control

Software Version 7.50

Making people and machines more productive through process Automation

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the MicroEdge and is the answer not in the manual?

Questions and answers

Summary of Contents for Hypertherm MicroEdge

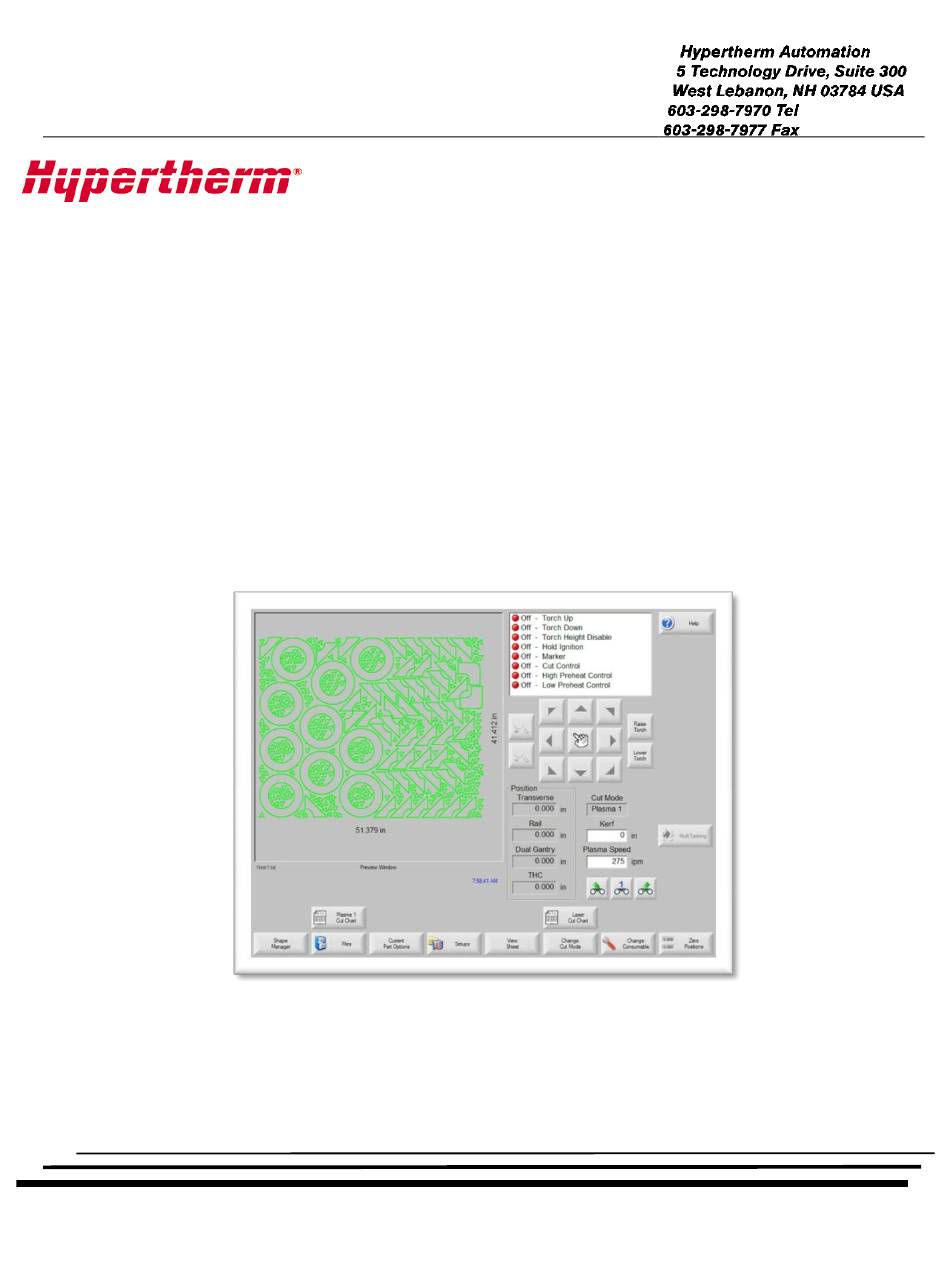

Page 1 Shape Cutting Control Software Version 7.50 Making people and machines more productive through process Automation...
Page 2 SERCOS Interface™ is a trademark of SERCOS North America. Indramat™ is a trademark of Bosch Rexroth. Pacific Scientific™ is a trademark of Danaher Motion. Hypertherm Automation CNC products may be covered by one or all of the following ATENTS US Patents - US 6772040, US 6622058 or US6359251.
Page 3: Table Of Contents
SAFETY ..............................1 Read This Manual ..........................1 Dangerous Machinery ......................... 1 High Voltages ............................1 Product Listings........................... 2 MicroEdge and Voyager III ......................2 Edge TI ............................2 OVERVIEW ............................3 Introduction ............................3 ShapeWizard ............................3 Teach/Trace ............................3 Shape Libraries ...........................
Page 4 Table of Contents Text Editor ............................. 22 Shape Wizard ..........................22 Teach Trace ..........................22 Nester............................22 HyperCAD ............................. 23 HyperNEST ........................... 23 Evaluation Timer ........................... 23 Files ..............................24 Load from Disk ..........................24 Save to Disk ..........................24 Download from Host ........................
Page 5 Table of Contents G40 Used in Simple Shapes ......................34 Auto Start after APA ........................34 EIA Code 2 Decimal Shift ......................34 M17, M18 Used as Cut Codes ...................... 34 M76 Rotary Shortest Path ......................34 Show Traverse Segments ......................35 Retain Skew Adjustment .......................
Page 6 Table of Contents Cut Control Used for Marking ....................... 46 Marker Down/Up With Each Marker On/Off.................. 46 Arc On Feedback .......................... 46 Partial Raise ..........................46 Down On During Mark ........................46 Down On Between Marks ......................46 Laser Overview ..........................47 Laser .............................
Page 7 Table of Contents Pulse On Time ..........................55 Pulse Off Time ..........................55 Creep Time ............................ 55 Pierce Complete ..........................55 Next Pulse ............................. 55 Start Corner Power ........................55 Minimum Corner Power ......................... 55 Save Process ..........................56 Rest Process ..........................56 Save Cut Charts ..........................
Page 8 Table of Contents Manual Line Edit ........................... 67 Replace Segment ......................... 68 Insert Before Segment ........................69 Insert After Segment ........................69 Remove Segment ......................... 69 Teach Trace ............................. 69 Start Corner ..........................70 Tracing Pitch ..........................70 Arc Radial Error ..........................71 Auto Closure Detect ........................
Page 9 Table of Contents Hard drive file name ........................94 Resume Last Part .......................... 94 Show Certain Files ........................94 Show All Files ..........................94 Resume Last Part Features ......................94 Rush Job Interrupt ......................... 94 Automated Power Loss Recovery ....................95 Save to Disk ............................
Page 10 Table of Contents VIII L-Bracket w/ Elbow Radii ........................ 153 Slant L-Bracket w/ Elbow Radii ...................... 155 Trapezoid w/ Convex Corners ......................157 Flange Slice ............................ 159 Elbow .............................. 161 Flange Repair Ring ......................... 163 Rectangle w/ Rectangular Hole ...................... 165 Rectangle w/ Circular Hole ......................
Page 11 Table of Contents Number of Columns ........................245 X Pattern Offset/Y Pattern Offset ....................246 Scrap Clearance .......................... 246 X Nest Distance/Y Nest Distance ....................246 Staggered Repeat ........................246 Nested Repeat ..........................247 Pattern Offsets ..........................247 Nest Distance ..........................247 Align ..............................
Page 12 Table of Contents Digital Inputs ..........................285 Digital Outputs ..........................285 Analog Inputs ..........................285 Analog Outputs ........................... 285 Status ............................286 Start............................. 286 Stop ............................. 286 Rate............................. 286 Record ............................286 Stop ............................. 286 Pause ............................286 Play ............................. 286 Fast Forward ..........................
Page 13 Table of Contents Drive Type ........................... 305 Update Rate ..........................305 Baud Rate............................ 305 Light Level ........................... 305 Drive I/O ............................306 RECO/Beckoff I/O at Address 50 ....................306 HPR/4070 at address 60 ......................306 HTA I/O at Address 70 ........................ 306 Speeds ............................
Page 14 Table of Contents Dialog Start ..........................316 Dialog Done ..........................316 Dialog Prompt ..........................316 Dialog Pause ..........................317 Dialog Acknowledge ........................317 End of Transmission ........................317 Using Phoenix Link ........................317 Show Host File Names ....................... 317 File Dump Mode .......................... 317 Allow M65 Auto Reload.......................
Page 15 Table of Contents XIII Home ............................333 Absolute Home Position ......................334 Home Offset Distance ......................... 334 Home Switch Normally ........................ 334 Home Direction ..........................334 Use Marker Pulse ........................334 Use Software Travel Limits ......................334 Maximum Travel Limit ......................... 334 Minimum Travel Limit ........................
Page 16 Table of Contents Station Configuration ........................345 Stations 1-4 / 5-8 ......................... 345 Reset ............................346 Part Program Support ......................... 346 Station Selects ..........................346 Process Selects .......................... 346 Station Configuration Variables ....................346 Overview ............................. 347 ® Command THC Support ......................348 ®...
Page 17 Table of Contents Update Help..........................355 System Tools ..........................355 Restore Last Version ........................355 Make Link Disk ..........................355 ® System Tools – Windows XP ......................356 System Tools ..........................356 Automated Backup ........................356 Backup Hard Drive ........................357 Scan Hard Disk ...........................
Page 18 Table of Contents SENSOR THC ............................ 379 Sensor Torch Height Control Overview ..................379 Cut Setups ............................380 THC Voltage Offset ........................380 Plasma Setups ..........................381 Test Lifter ............................ 381 Retract Delay ..........................382 Auto Voltage Set ......................... 382 Set Arc Voltage ...........................
Page 19 Table of Contents XVII Retract Full/Partial ........................399 Retry On Transfer Fail ......................... 399 Transfer Time ..........................399 Set Arc Current ..........................400 Corner Current Percent ....................... 400 Set Arc Voltage ........................... 400 Homing Speed ..........................400 Nozzle Ohmic Contact ......................... 400 Preflow During IHS ........................
Page 20 Table of Contents XVIII External Fonts ..........................436 Custom Fonts ..........................437 Serial Messaging ..........................438 Overview ............................. 438 Baud Rate ........................... 439 Parity ............................439 Data Bits ............................. 439 Flow Control ..........................439 During Jog on Path ........................440 Retry on Time Out ........................
Page 21 Table of Contents Outputs ............................456 Outputs ............................457 Serial Communication Interface ....................457 Multiple Supplies ......................... 458 Inputs and Outputs ........................458 Raise 1-4 and Lower 1-4 ......................458 Cut Sense 1-4 ..........................458 Ready to Fire PS 1-4 ........................458 Hold Ignition..........................
Page 22 Overburn ............................. 479 Prepared DXF Files ........................480 Drawing Format .......................... 480 Text Commands .......................... 480 Directional Commands........................ 480 MICROEDGE ............................. 483 Overview ............................483 Keyboard Layout ..........................484 System Requirements ........................484 Machine Interface ........................... 485 I/O Configuration ..........................486 I/O Interface ............................
Page 23 Table of Contents Grounding Requirements ......................515 VOYAGER III ............................517 Overview ............................517 Setups ............................. 519 Drive Type ........................... 519 Update Rate ..........................519 Baud Rate............................ 519 Light Level ........................... 520 Drive I/O ............................520 RECO I/O at Address 50 ......................520 HTA I/O at Address 70 ........................
Page 24 Table of Contents XXII...
Page 25: Safety
Safety Safety Read This Manual Read and understand this instructional manual, the cutting machine manuals, and your employer‟s safety practices. Note: This product is not designed to be field serviceable. Please return to an authorized repair center for any required service. Dangerous Machinery Operation and maintenance of automated equipment involves potential hazards.
