INSTALLATION INSTRUCTIONS FOR PART 99-7423
NISSAN Altima
99-7423
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) Radio Housing Trim Plate • C) Radio Housing Brackets
• D) Double DIN Trim Plate • E) Double DIN Brackets • F) ISO Brackets • G) Pocket
• H) (2) Climate Control Trim Panels • I) (2) #8 3/8" Screws
A
F
Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007-2008 METRA ELECTRONICS CORPORATION
APPLICATIONS
2007-2009
B
C
G
TOOLS REQUIRED:
• Phillips Screwdriver • Torx Screwdriver
D
H
www.metraonline.com
E
I
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7423
Summary of Contents for Metra Electronics 99-7423

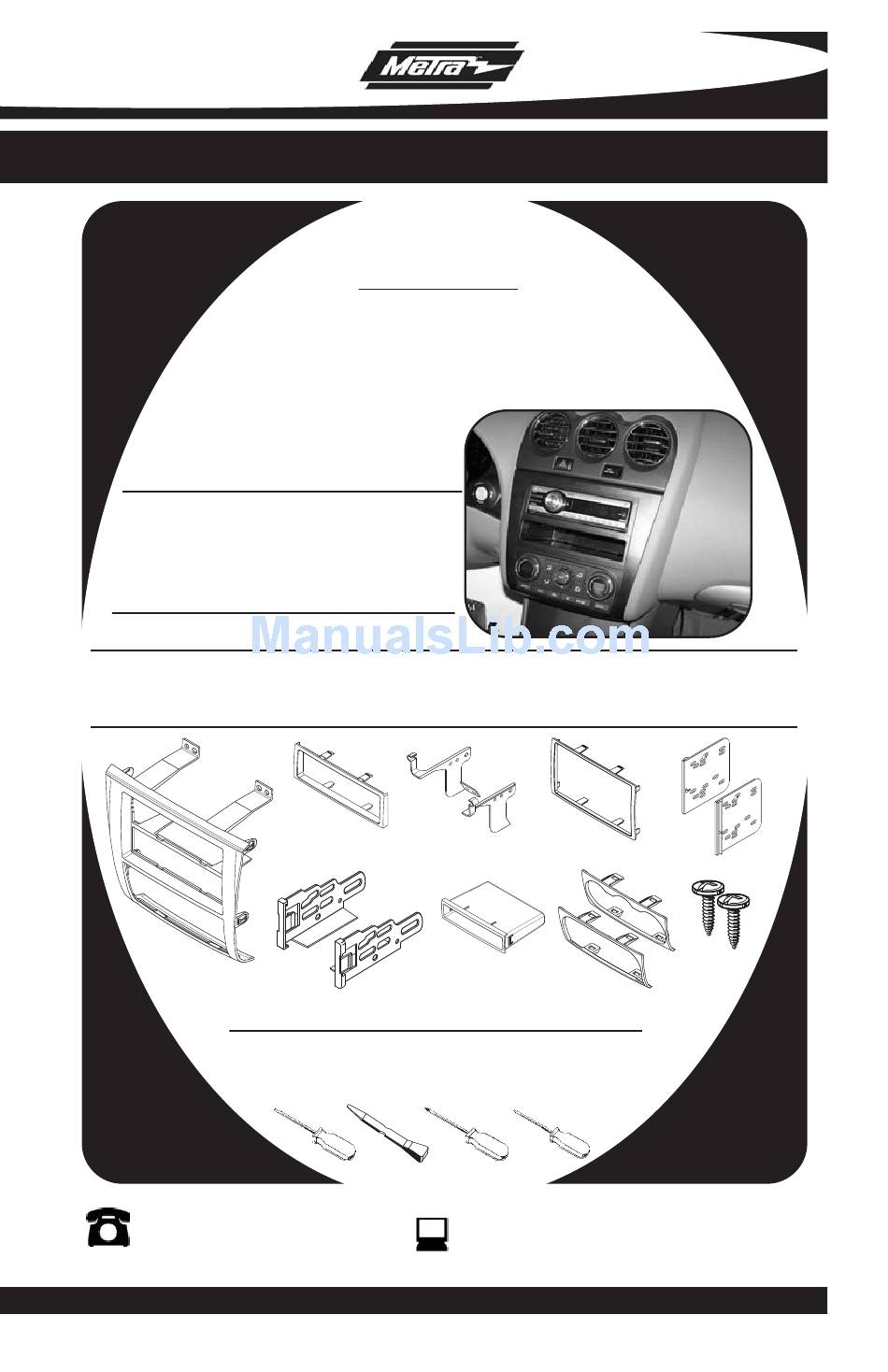

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7423 APPLICATIONS NISSAN Altima 2007-2009 99-7423 KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Radio Housing • B) Radio Housing Trim Plate • C) Radio Housing Brackets •...
-
Page 2: Table Of Contents
99-7423 T ABLE OF CONTENTS Dash Disassembly - NISSAN Altima 2007 -2009 ......... 1 Kit Preparation. -
Page 3: Nissan Altima 2007 -2009
99-7423 DASH DISASSEMBL Y NISSAN AL TIMA 2007-2009 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove trim panel between the shifter and the radio/ cli- mate control panel. (Figure A) Remove (2) Phillips screws exposed behind panel below radio/climate control panel. -
Page 4: Kit Preparation
99-7423 KIT PREPARATION NISSAN AL TIMA 2007-2009 Clip the corresponding climate control trim panel into the radio housing. Note: There are (2) different climate control trim panels. One for auto cli- mate control and one for manual cli- mate control. (Figure A) -
Page 5: Din Radio Provision With Pocket
99-7423 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. -
Page 6: Iso Mount Radio Provision With Pocket
99-7423 KIT ASSEMBL Y ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio with the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until it snaps into place. -
Page 7: Double Din Radio Provision
99-7423 KIT ASSEMBL Y DOUBLE DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Cut and remove the center bar from the radio housing assembly. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing assembly. -
Page 8: Stacked Iso Units Provision
99-7423 KIT ASSEMBL Y STACKED ISO UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. 1 Cut and remove the center bar from the radio housing assembly. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing assembly. -
Page 9: Final Assembly
99-7423 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 10 99-7423 NOTES...
