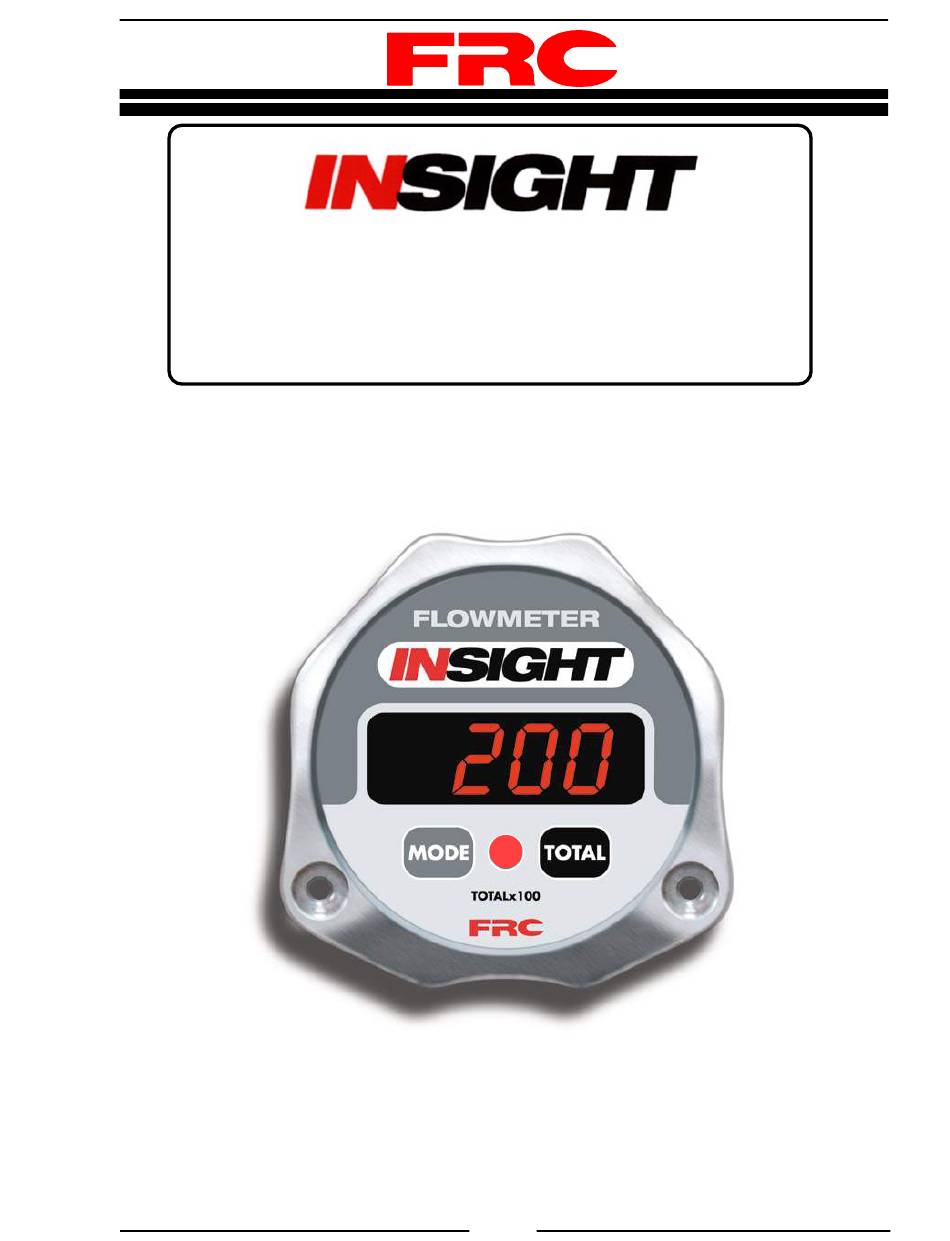

- Page 1 DF4000 Rev0204 DIGITAL FLOWMETER MODEL: DF4000 Insight Series FIRE RESEARCH CORPORATION fireresearch.com 26 Southern Blvd., Nesconset, NY11767 TEL ( 631 ) 724-8888 FAX ( 631 ) 360-9727 TOLL FREE 1-800-645-0074...
-
Page 2: Table Of Contents
DF4000 Rev0204 CONTENTS Table of Contents CONTENTS ....................... 2 List of Tables ......................3 List of Illustrations ....................3 INTRODUCTION ...................... 4 Overview ....................... 4 Features ......................... 4 Specifications ......................5 GENERAL DESCRIPTION ..................6 Components ......................6 Controls and Indicators ..................7 INSTALLATION ...................... -
Page 3: List Of Tables
DF4000 Rev0204 List of Tables Table 1. Program Code Quick Reference ..............23 List of Illustrations Figure 1. Controls and Indicators ................7 Figure 2. Display Module Mounting Dimensions ............ 9 Figure 3. Flow Sensor Location Guidelines............11 Figure 4. Saddle Clamp Installation ................ 13 Figure 5. -
Page 4: Introduction
0.56 inch high. The flowmeter is able to communicate with other display modules over the FRC datalink. This technology allows for remote displays, the display of flow for multiple discharges (summing), and the totalization of flow for multiple discharges (accumulation). -
Page 5: Specifications
DF4000 Rev0204 Specifications Display Module Supply Voltage: 9 - 30 VDC Supply Current: 0.5 Amp Dimensions: Height 3.25 Inches Width 3.26 Inches Depth 2.4 Inches Datalink Protocol: J1939 CAN Flow Sensor Type: Paddlewheel with Brass Housing for Saddle Clamp or Weldment Mount (Stainless Steel Housing Optional) Sensor Material: Acetal (Delrin) with Stainless Steel (316) Shaft... -
Page 6: General Description
DF4000 Rev0204 GENERAL DESCRIPTION Components The INSIGHT flowmeter consists of the following components: Display Module Paddlewheel Flow Sensor and Sensor Housing Asembly Cables Display Module The display module is waterproof and has dimensions of 3.25 inches high by 3.26 inches wide by 2.4 inches deep. It is available with optional NFPA color coded bezels. (The bezels are an intricate part of the display module and must be factory installed.) All controls and indicators are located on the front of the display module. -
Page 7: Controls And Indicators
DF4000 Rev0204 Controls and Indicators All controls and indicators are located on the front of the display module. It contains a digital display, two buttons, and an LED display. (Refer to Figure 1.) Digital Display During normal operation this 4-digit LED display will indicate flow rate. When the display module identification or program access modes are selected the digital display shows module specific information, program codes, settings, and error codes. -
Page 8: Installation
DF4000 Rev0204 INSTALLATION The DF4000 display module and flow sensor are compatible for use with any size piping. Note: Plumbing systems are always unique and may cause small deviations in the factory calibration. It is recommended that the calibration procedure be performed after installation. -
Page 9: Figure 2. Display Module Mounting Dimensions
DF4000 Rev0204 Panel Cutout 2.75" Diameter Hole Tap or Drill Clearence Hole for 10-32 Screw .95" 2.7" 2.13" 1.65" 2.72" 3.25" .25" 3.26" Figure 2. Display Module Mounting Dimensions... -
Page 10: Install Flow Sensor
DF4000 Rev0204 Install Flow Sensor There are several ways to install FRC paddlewheel type flow sensors. Mounting options include saddle clamps, weldments, pipe tees, and special adapters. Each mount will meet particular plumbing requirements. Flow sensors are interchangeable. It is recommended that the calibration be checked if flow sensors are swapped. -
Page 11: Figure 3. Flow Sensor Location Guidelines
DF4000 Rev0204 The preferred location for the mounting of a flow sensor is on the top half of the pipe. The best orientation is vertical. If the sensor is mounted on the bottom of the pipe, it may be susceptible to the accumulation of dirt. - Page 12 DF4000 Rev0204 Saddle Clamp Installation Note: Ensure that the mounting location meets the requirements for uniform water flow. (Refer to Flow Sensor Location.) Note: Ensure that there is enough room for the saddle clamp, sensor, and connector to fit. (Refer to Figure 4.) 1.
-
Page 13: Figure 4. Saddle Clamp Installation
DF4000 Rev0204 Retainer Cap O-Ring Pipe Size Dimensions Paddlewheel (Sch 40) Flow Sensor Alignment Sensor Measurements are in inches. Housing Saddle Clamp Note: Allow a minimum of 2 inches clearance at the sensor top for removal/installation of the connector. Note: When the retainer cap is tightened make sure the sensor rim flat spot does not disengage from the alignment tab and... - Page 14 DF4000 Rev0204 Weldment Installation Note: Ensure that the mounting location meets the requirements for uniform water flow. (Refer to Flow Sensor Location.) Note: Ensure that there is enough room for the weldment, sensor, and connector to fit. (Refer to Figure 5.) 1.
-
Page 15: Figure 5. Weldment Installation
DF4000 Rev0204 Retainer Cap O-Ring Paddlewheel Pipe Size Dimension Flow Sensor (Sch 40) 1.95 to 1.80 1.95 to 1.80 Tru-Seal 1.90 to 1.75 Locknut 1.88 to 1.73 1.88 to 1.73 Alignment 1.85 to 1.70 Measurements are in inches. Sensor Housing Make sure that the alignment tab is centered on the pipe centerline. -
Page 16: Operation
Datalink Interface The FRC datalink interface is standard on all flowmeters and provides a way of connecting multiple display modules on a shared data bus. The DF4000 (digital flowmeter) and FP4000 (pressure gauge/flowmeter) series display modules can operate... -
Page 17: Figure 6. Typical Datalink
DF4000 Rev0204 REMOTE PANEL(S) FLOWMETER FLOWMETER FLOWMETER INSIGHT INSIGHT INSIGHT Function: Function: Function: Function: ID Number: ID Number: ID Number: ID Number: Id 1 Id 2 Id 4 Id 3 Datalink Accumulator display PUMP red LED will be on to PANEL indicate x 100 scale. -
Page 18: Program Features
DF4000 Rev0204 Program Features See Programming section for more detailed information. High and Low Flow Warning (Codes 315 and 316) When the flow rate is above the programmed high flow value a flashing -HI- will show in the digital display. When the flow rate is below the programmed low flow value a flashing -LO- will show in the digital display. -
Page 19: Programming
DF4000 Rev0204 PROGRAMMING The two operator selectable modes are display module identification and program access. These modes are selected and inputs are made by using the two buttons on the front of the display module. The digital display will show stored data and operator inputs. -
Page 20: Figure 7. Typical Programming Displays
DF4000 Rev0204 DISPLAY MODULE IDENTIFICATION MODE DISPLAYS Serial Number: This is set at the factory. Manufactured Date: This is set at the factory (mm.yy). Software Revision: This is set at the factory. Module Function: To change use program access code 313. ID Number: To change use program access code 312. -
Page 21: Program Access Mode
DF4000 Rev0204 Program Access Mode When in the program access mode the digital display will show operator inputs, program options, and error codes. To gain access to the program features a three digit program code must be entered. Review the Program Code Descriptions or refer to Table 1. -
Page 22: Program Code Descriptions
DF4000 Rev0204 Program Code Descriptions When a valid three digit program code has been entered a program value or option will show in the display. The MODE and TOTAL buttons are used change the data. The MODE button will select the digit that is to be changed. The digit will flash. The TOTAL button will change the digit that is flashing or change the option choice. -
Page 23: Table 1. Program Code Quick Reference
Select Different Calibration Point E208 Memory Failure Contact FRC • Refer to Program Code Descriptions for detailed information. • There is a timeout feature that will return the program to normal operation in three seconds if input is not detected at the buttons. - Page 24 DF4000 Rev0204 Code 315 High Flow Warning Factory programmed value: 0 (High flow warning is disabled.) Options: 0001 to 9999 This code will allow the high flow warning to be set. When the flow rate is above the high flow warning program value, the flow display will alternately flash between the flow rate and -HI-.
- Page 25 5% difference between two calibration points.) Select a different point to continue with the calibration procedure. Error Code E208 There is a failure with the internal memory of the module. Contact FRC if this error code is displayed. Exit Program Access Mode Press both the MODE and TOTAL buttons and hold them there until four dashes are shown in the display.
-
Page 26: Calibration
DF4000 Rev0204 CALIBRATION The INSIGHT digital flowmeter is precalibrated and tested at the factory. Plumbing systems are always unique and may cause small deviations in the factory calibration. The flowmeter should be checked after installation for accuracy and calibrated when necessary. - Page 27 DF4000 Rev0204 Flow Calibration, Multiple Point (Code 322) This function allows for the display to be calibrated at multiple flow rates. It corrects for nonlinear flow in difficult to plumb locations to provide an accurate flow rate display. Select flow rates to calibrate (up to 10 calibration points) that are within the most commonly used flow range for the discharge.
-
Page 28: Wiring
DF4000 Rev0204 WIRING DF4000 Connector Signal Description Power 9 - 30 VDC Ground Flow Sensor 5 VDC Flow Sensor Ground Flow Sensor Signal Datalink CAN Low Datalink CAN High Note: Connect the black ground wire (pin 2) to battery negative (–) or a good chassis ground (the chassis ground should have a resistance less than 1 ohm to the battery negative). -
Page 29: Figure 9. Remote Display Wiring
DF4000 Rev0204 Note: The remote display connector pinouts are the same as the primary Remote display connector pinouts. Display Cable To Primary Display Note: Minimum Connector wire size for power Black Wire to Pin 7 is 18 AWG. Red Wire to Pin 8 Black Wire Ground Red Wire... -
Page 30: Parts List
DF4000 Rev0204 PARTS LIST Index FRC Part No. Description DF-4000-X.X Insight Kit (GPM) DF-4010-X.X Insight Kit (LPM) X.X = Pipe Size DF-4000-DM . Insite Display Module (GPM) DFC-XX . Primary Display Cable XX = Cable Length (In Feet) MF-15P . Paddlewheel Flow Sensor... - Page 31 DF4000 Rev0204 This page intentionally left blank.
