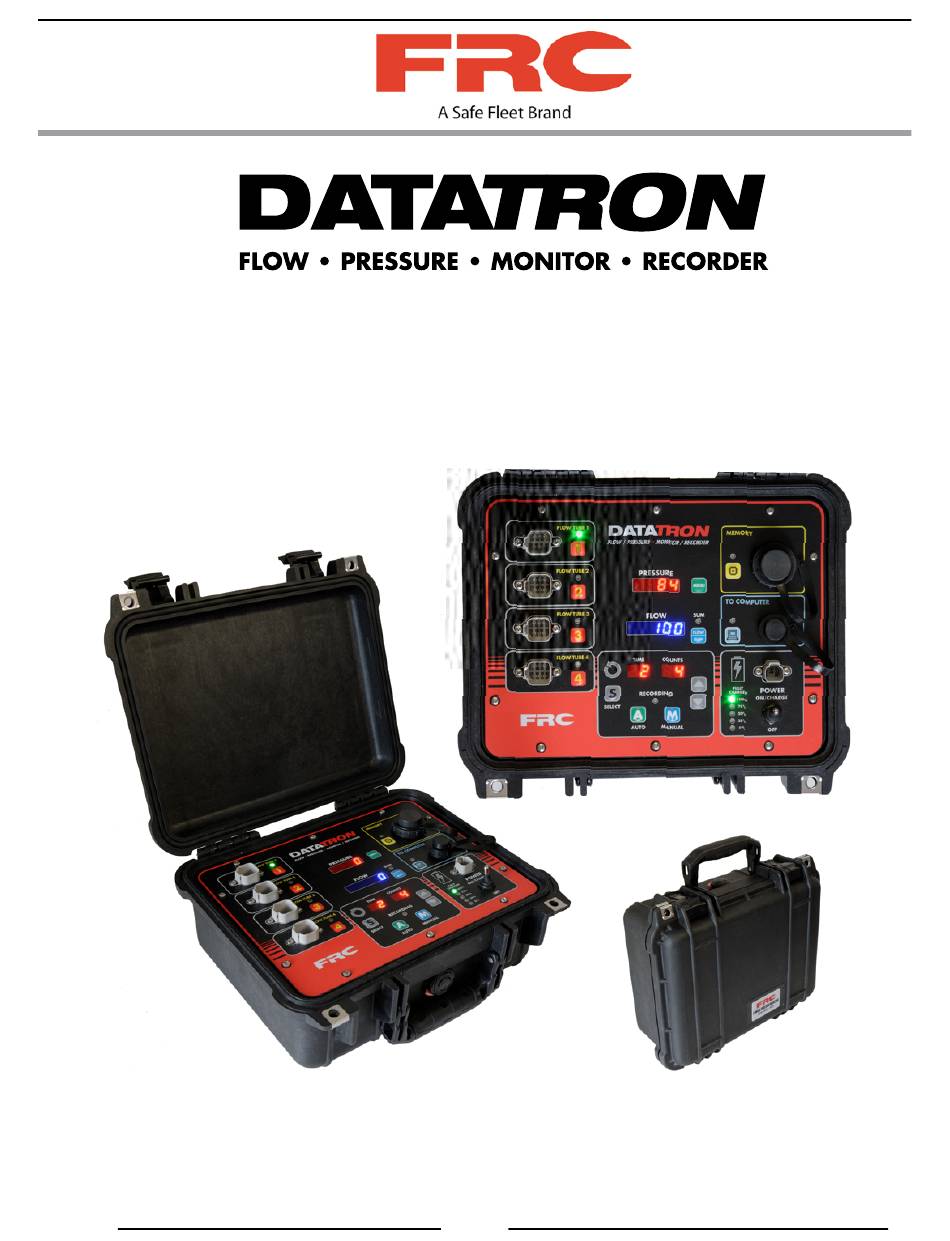

- Page 1 FTC200 Rev151207 Document Number: XE-FTC2PM-R0A PORTABLE SAMPLING FLOW & PRESSURE METER MODEL FTC200 FIRE RESEARCH CORPORATION www.fireresearch.com 26 Southern Blvd., Nesconset, NY 11767 TEL 631.724.8888 FAX 631.360.9727 TOLL FREE 1.800.645.0074...
-
Page 2: Table Of Contents
FTC200 Rev151207 CONTENTS Table of Contents CONTENTS ........................ 2 List of Tables......................3 List of Figures ......................3 INTRODUCTION ...................... 4 Overview ........................ 4 Features ........................4 SYSTEM COMPONENTS ..................5 Panel Diagram (Display Module) ................5 Panel Controls and Ports Summary: ..............6 FIELD OPERATION .................... -
Page 3: List Of Tables
FTC200 Rev151207 List of Tables Table 1. Program Functions P-Codes Quick Reference ........... 16 Table 2. Error Codes and Fault Warnings Troubleshooting ........22 Table 3. Parts List ....................23 Table 4. Pressure Sensor Output Voltage ..............26 List of Figures Figure 1. -
Page 4: Introduction
INTRODUCTION Overview The DataTron FTC200 Portable Flow Meter is an easy-to-use 4-channel portable sampling flow and pressure meter. It can record these values over time internally to automate the process of testing flow and pressure. This enables the operator to press a button and use the same portable tester with different size flow tubes. It provides connections for up to four flow tubes, displays pressure and flow readings for any or all four of the tubes simultaneously. -
Page 5: System Components
FTC200 Rev151207 SYSTEM COMPONENTS Panel Diagram (Display Module) Figure 1. Controls and Indicators... -
Page 6: Panel Controls And Ports Summary
FTC200 Rev151207 Panel Controls and Ports Summary: • CHANNEL CONNECTORS 1 THROUGH 4 • BUTTONS 1 THROUGH 4 – CHANNEL SELECT • LED 1 THROUGH 4, GREEN – CHANNEL SELECTED INDICATORS ◦ Press a button to read the channel’s Flow & Pressure. •... - Page 7 FTC200 Rev151207 Case The DataTron FTC200 4-channel portable sampling flow and pressure meter is mounted inside of a resilient, high impact, structural copolymer case. The case is watertight, airtight, dustproof, chemical resistant and corrosion- proof , and has an automatic purge valve for quick equalization after changes in atmospheric pressure. All controls and indicators are located on the front panel.
- Page 8 FTC200 Rev151207 Flow Tubes Each flow tube will have a mount for a paddlewheel flow sensor and pressure sensor. They must meet all specifications required to ensure proper operation with the flow channels. Refer to the Specifications section for details. Caution: Care should be taken not to drop the flow tubes.
-
Page 9: Field Operation
FTC200 Rev151207 FIELD OPERATION Battery Management System Note: The DataTron may be used while it is charging, and the length of time for the battery to fully charge will not be affected. The charge time is the same when it is in stand-by, or not being used. Note: Please be certain to turn the power to the off position before changing power sources. -
Page 10: Making Connections
FTC200 Rev151207 Making Connections Before taking measurements, make sure the 6-pin Deutsch connector is connected to the flow and pressure channel that will be measured. 1. Plug the pressure sensor cable ending in a 6-pin Deutsch connector (part no. XE- FTIPFPM-C20A) into the flow and pressure channel until the tab firmly locks into position in the port on the DataTron for the selected channel (1 through 4). -
Page 11: Recording
FTC200 Rev151207 Recording The DataTron can be programmed to automatically record the desired count of measurements (from 01-99) separated by the time interval for each count in minutes. Manual Mode 1. Manual Sample - press "MANUAL" to record pressure and flow as a snap-shot of the data recorded into the internal memory. -
Page 12: Data Management
FTC200 Rev151207 Data Management USB Data Retrieval The MEMORY port is compatible with a USB flash drive compliant with USB 2.0 and formatted to the standard FAT32 file system. The USB flash drive allows for transferring recorded internal data to a computer. This data is saved as a CSV file type, which can be viewed with Microsoft Excel or Open Office type programs. - Page 13 FTC200 Rev151207 Computer Interface: 1. There is a computer connector port on the right side of the DataTron named "TO COMPUTER" This port allows for a direct data transfer to your computer (instead of with the USB flash drive). The USB cable is provided as part no.
-
Page 14: Programming
FTC200 Rev151207 PROGRAMMING Programming functions are not allowed when the control module is in the recording mode. All program functions are password protected. The P-code program functions are available to view and change after the password code has been entered (see below). - Page 15 FTC200 Rev151207 OEM/Dealer Password Restricted (Contact FRC) Provides access to system programming P200 and P300 codes. Password Restricted - OEM/Dealer Programs For more information, refer to the OEM/Dealer P200 and P300 Codes listed in the separate OEM programming manual.
-
Page 16: Operator P-100 Codes
FTC200 Rev151207 Operator P-100 Codes • Refer to Program Code Descriptions for detailed information. • When a valid code has been entered and a programed value or option is shown in the display, the timeout feature is disabled. Table 1. Program Functions P-Codes Quick Reference CODE DESCRIPTION MESSAGE DISPLAY... -
Page 17: Set Date And Time (Codes P107 And P108)
FTC200 Rev151207 Set Date and Time (codes P107 and P108) Set Date (Code P107*) Enter password code 1221. (Refer to Enter Password for Program Access.) 1. Press the U P and D O W N arrow buttons and scroll to code P107 in the PRESSURE display. -
Page 18: Firmware Update (Code P109)
1. First make sure to have a USB flash drive compliant with USB 2.0 and formatted to the standard FAT32 file system available. 2. Copy the FTC200.hex file that you received from FRC onto your USB flash drive. 3. Enter the programming mode and scroll through the P-codes and select P109. -
Page 19: Flow Calibration (Code P111)
FTC200 Rev151207 Flow Calibration (code P111) It is recommended that the flowmeter/pressure indicator is checked after installation for accuracy and calibrated when necessary Review the Programming Section procedures for using the Program Access Mode. NOTES: 1. Flow calibration must be done according to the designated preset. (Refer to P301 in the OEM Programming Codes Manual.) For example, if P301 is set for PSI, the flow will be calibrated in GPM. - Page 20 FTC200 Rev151207 Multiple Point Calibration 1. First be certain to connect the flow tube into the desired flow and pressure channel. 2. Flow water through the discharge at the flow rate selected for the calibration point. Ensure a constant pressure is maintained to obtain a steady flow rate. 3.
-
Page 21: Pressure Calibration (Code P112)
FTC200 Rev151207 Pressure Calibration (code P112) NOTES: 1. Pressure calibration is done according to how the Unit of Measure was set in P301—either PSI, BAR or kPa. (Refer to P301 in the OEM Programming Codes Manual.) 2. It is recommended that the calibration of the meter be checked once annually or if the operator feels that the reading might be erroneous. -
Page 22: Error Codes And Fault Warnings Troubleshooting Table
Power Supply Failure, FRC CAN Check connections between flow tube and channel input for a possible short. E342 E401 Internal Error Contact FRC and advise the code number. Internal Error Contact FRC and advise the code number. E402 E403 Internal Error Contact FRC and advise the code number. -
Page 23: Parts List
FTC200 Rev151207 PARTS LIST PART NO. DESCRIPTION XE-FTC200-D0A DM Flow & Pressure 4-Channel Recorder XE-FTIPFPM-C20A Cable, Flow Tester IPF-PM 20-ft XE-XXPSAA30R-150 Battery Charger/Power Supply XE-FTC12V-A1A Charger Cable, DC, Alligator Clips XE-PRO31PT3-S0B Pressure Sensor XE-MF40P-S0A Flow Sensor (Paddlewheel) XE-XXUSBEXT-C10A Cable, Ext. USB Mini-B 10-ft (laptop to FTC200) XE-XXBC-ZA5074-B Charger Cable, DC, Accessory Plug 12V BA XE-XX552-RPA-R... -
Page 24: Specifications
FTC200 Rev151207 Specifications Display Module (mounted inside Pelican Case 1400) Supply Voltage: 10 - 30 VDC Supply Power: 15 Watts Case Exterior Dimensions: 13.37 x 11.62 x 6 inches (L x W x D) 34 x 29.5 x 15.24 cm (L x W x D) Operating Temperature (non-condensing): -30°C to 55°C (-22°F to 131°F) Storage Temperature (non-condensing):... -
Page 25: Flow Sensor
FTC200 Rev151207 Flow Sensor Flow Sensor (Top View) Supply Voltage Signal Output Sensor Cable from Ground 8-Pin Connector Sensor Cable 3-Pin Connector Pin/Wire Description A/Black Ground B/Red Supply Voltage C/White Signal Figure 3. Flow Sensor Wiring... -
Page 26: Pressure Sensor
FTC200 Rev151207 Pressure Sensor Model Number: XE-FTC200-D0A Pressure Range: 0 - 300 PSI Proof Pressure: 800 PSI Type: Stainless Steel Excitation Voltage: 5 VDC Output Voltage: 0-5 VDC- 4.75 VDC (See Table 1) Table 4. Pressure Sensor Output Voltage 0 psi 100 psi 150 psi 200 psi... -
Page 27: Figure 4. Pressure Sensor Wiring
FTC200 Rev151207 Pressure Sensor Pressure Sensor Cable Pressure Sensor 3-Pin Connector Cable Pin/Wire Description A/Black Ground B/Red Supply Voltage C/White Signal Pressure Sensor Top View Ground Supply Voltage Signal Output Pressure Sensor Side View Figure 4. Pressure Sensor Wiring... -
Page 28: Flow Sensor Maintenance
FTC200 Rev151207 FLOW SENSOR MAINTENANCE It is recommended that the flow sensor be cleaned during the yearly calibration check. Depending on the environment that the flow tube is used in, it is possible that mud, grass, algae, or other materials may collect on the paddlewheel of the flow sensor and require it to be cleaned from time to time. Remove the flow sensor and clean the it with a mild soap and clean water. - Page 29 FTC200 Rev151207 NOTES...
- Page 30 FTC200 Rev151207 NOTES...
- Page 31 FTC200 Rev151207 NOTES...
- Page 32 FTC200 Rev151207...
