FD30-F FOLDING DOOR SYSTEM
Installation Manual
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct
installation. Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
● This product is parts set for pivot door system for indoor use.
● Easy door installation and adjustment.
SPECIFICATION
Max.Door width
Max.Door height
Min.Door thickness
Max.Door weight
Height adjustable range
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Prohibited
Caution
WARNING:
If these warnings are not followed, it may result in death or serious injury.
This (folding door system) should be installed by an experienced person who has correct knowledge. If the system is not
installed correctly, the door will not operate smoothly, and or may cause injury.
upon opening/closing the door. A frame with poor strength might result in improper and slower movement of the door. In
the worst case, the door might drop down and cause injury.
Do not try to use this product for any other purposes other than originally intended for. Do not use the parts for applications
Do not disassemble nor modify any parts than those described in this document.
Caution:
If these cautions are not followed, it may result in injury or damage.
that the frame is not warped, since it may affect the movement of the door.
If cutting any parts, make sure to remove any burr before installation. Also check the upper track for any left-over burr or
scrap and remove these.
This folding
ensure that it is well-functioning and safe.
year is recommended).
Do not open / close the door with excessive force as this may result in damage.
(Additional Door)
450 mm
2400 mm
28 mm
15 kg / door
+ 3 mm
Required

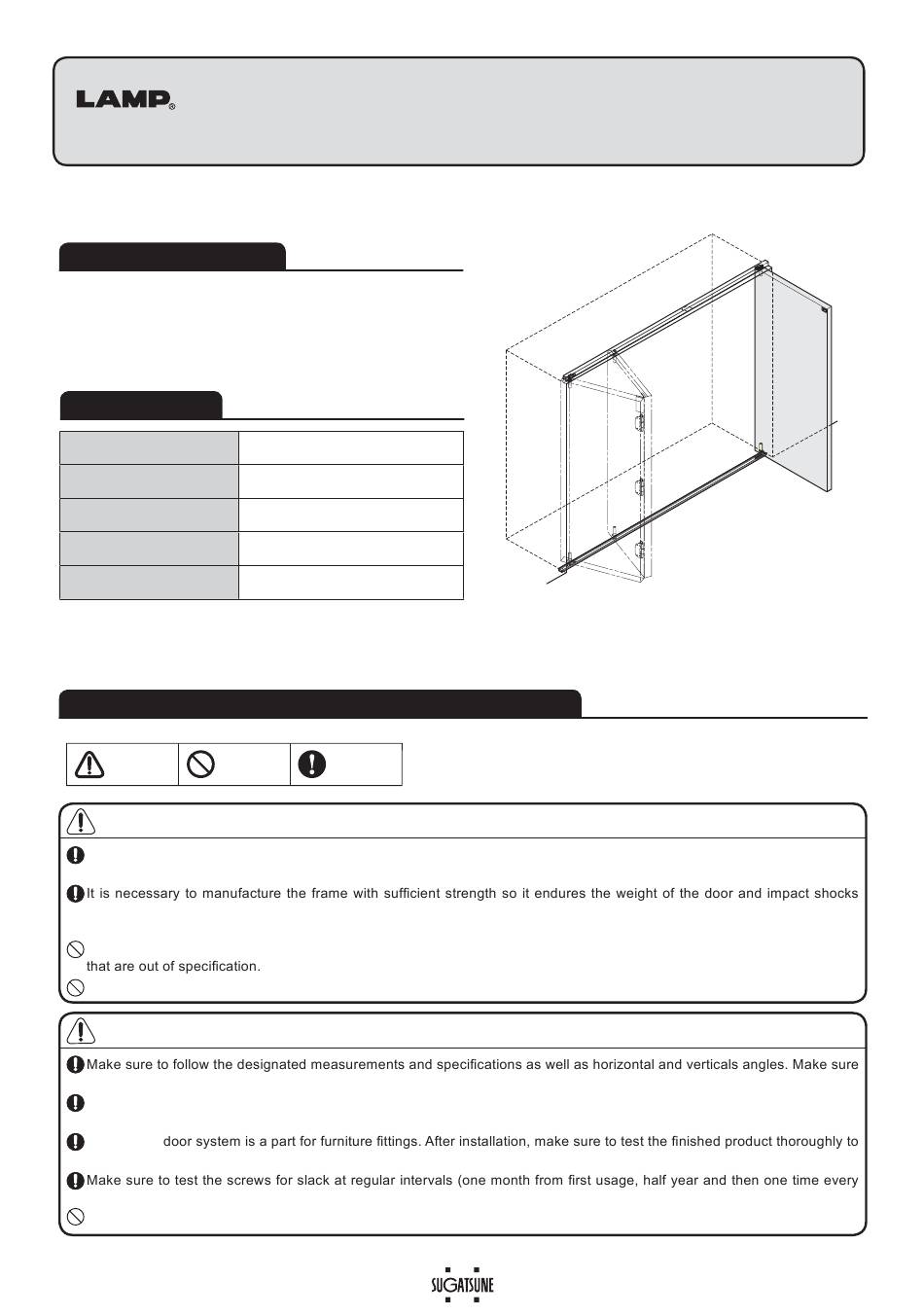

Above illustration shows the combination example of folding door
FD30-FAP(Pivoted folding).
Part No.FD30FPS
