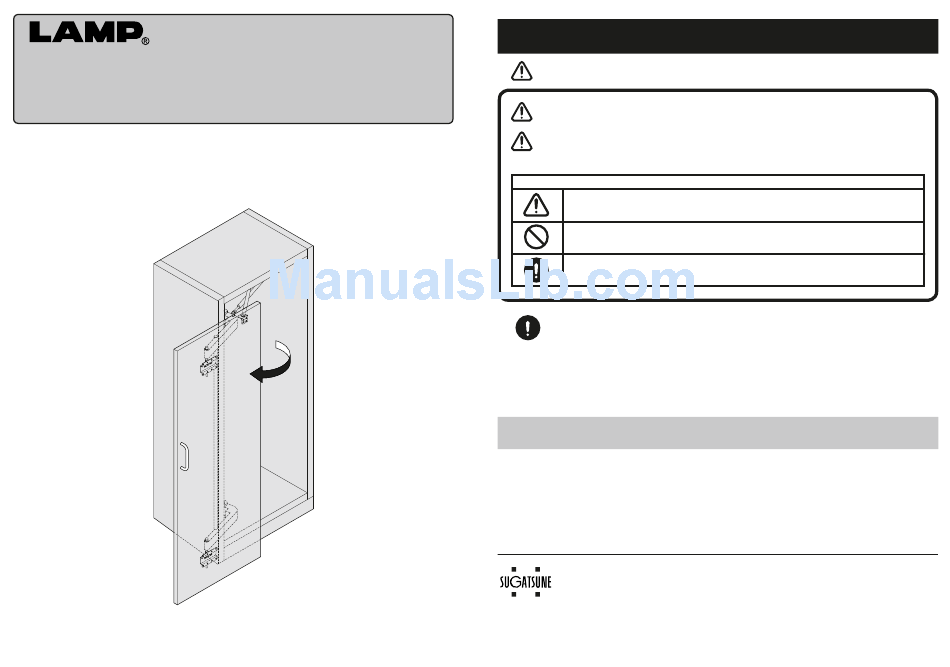

Flat Door Hardware FAD-44,FAD-44L
Flat Door Hardware FAD-44,FAD-44L
Instruction Manual
Instruction Manual
Wooden Frame Type
Wooden Frame Type
Thank you very much for your purchase of our product.
For safe and proper assembly, fully read this manual before installation.
SUGATSUNE KOGYO CO., LTD.
Safety Cautions
Please follow these instructions carefully for proper use.
PAT. P
WARNING
CAUTION
In addition,the following pictographs are used to indicate the types of warnings(cautions).
Meanings of pictographs
Indicates a warning(caution) which you are required to take. It is followed by specific content
of the warning(caution).
Indicates an act which you must not do. It is followed by specific content of the act.
Indicates an instruction which you must follow. It is followed by specific content of the
instruction.
If you need to install this product, ask the dealer that you purchased our product or
technicians who are skilled in the installation work of the product. Improper installation may
lead to a fall of the product during usage, causing an extreme danger.
Notes on works
Handling of product
● The door is not supplied.
● After unpacking the product, check for damages on the parts.
● DO NOT modify the product. Otherwise, its strength may be decreased.
● Ask the technicians who are skilled in the installation work of the product for assembly or installation of the product.
● When working on the product, be sure to observe the instructions in this manual.
For Overseas Customers
SUGATSUNE KOGYO CO., LTD.
1-8-11 HigashiKanda, Chiyoda-ku,
Tokyo 101-8633, Japan
TEL:+81-3-3866-2260
http://www.sugatsune.co.jp
E-mail : export@sugatsune.co.jp
ISO9001(JSAQ384) ISO14001(JSAE597) CERTIFICATE
For your safety, be sure to read the following
safety cautions first.
Indicates a matter which, if neglected, may cause loss of life or serious injuries.
Indicates a matter which, if neglected, may cause injuries or property damage.
For North American Customers
SUGATSUNE AMERICA, INC.
221 East Selandia Lane,
Carson,CA 90746,U.S.A.
FAX:+81-3-3866-4447
TEL: +1-310-329-6373
FAX: +1-310-329-0819
TOLL FREE:(800) 562-5267 (from U.S.A & Canada only)
http://www.sugatsune. com
E-mail : sales@sugatsune.com
2010. 06 PRINTED IN JAPAN 0215-2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lamp FAD-44
Summary of Contents for Lamp FAD-44
- Page 1 For your safety, be sure to read the following Safety Cautions safety cautions first. Flat Door Hardware FAD-44,FAD-44L Flat Door Hardware FAD-44,FAD-44L Please follow these instructions carefully for proper use. Instruction Manual Instruction Manual Wooden Frame Type Wooden Frame Type PAT.
- Page 2 ● Specifications Cabinet inner From 750 mm to 800 mm* Door thickness From 24 to 38 mm * If the overlay distance on both sides of side plate is width Door weight Max. 35 kg / 1 door 25 mm, the door width should be 800 to 850 mm. Door height 2380[2980] mm max.
- Page 3 Installing Parts to Cabinet (Wooden Frame) Installing Parts to Roof of Cabinet (Wooden Frame) (800) Installing parts to side plate of Installing channel rail Channel rail Support arm cabinet (wooden frame) As shown in the figure, fix the “Channel rail” to the bottom of the roof with the supplied countersunk head screws.
- Page 4 Installing Arm Connecting Pipe (800) Length of arm connecting pipe Cut the “Arm connecting pipe” as shown on the figure below. Resin cap Upper arm (w/ stopper) If the pipe is cut, insert the resin caps again. Resin cap Installing arm connecting pipe Fit the “Arm connecting pipe”...
- Page 5 Installing Gas Spring (800) Gas spring holder Upper arm (w/ stopper)
- Page 6 Installing Parts to Door The door is not supplied. Installing the gas spring Fixing positioning unit (arm side) CAUTION E-ring Fully screw the “Screw pin” into the tapped hole on the Fix the “Positioning unit” to the back of the door with the supplied Flat washer Set core material of which strength is enough for secure tightening of self- top face of the “Upper arm”.
- Page 7 Installing Door Support arm Upper arm (w/ stopper) Positioning unit Arm connecting pipe Back face of door Pipe clamp Lower arm Positioning unit...
- Page 8 Adjusting the gap between cabinet (wooden frame) and door Connecting upper and lower arms to positioning unit Hexagon head bolt for connecting Connect the upper and lower arms to the “Positioning unit”. While keeping the door closed with no gap between the door Insert hexagon head bolt with flat washer, then screw it by and cabinet (wooden frame), loosen the “Hexagon socket head hexagon nut.
