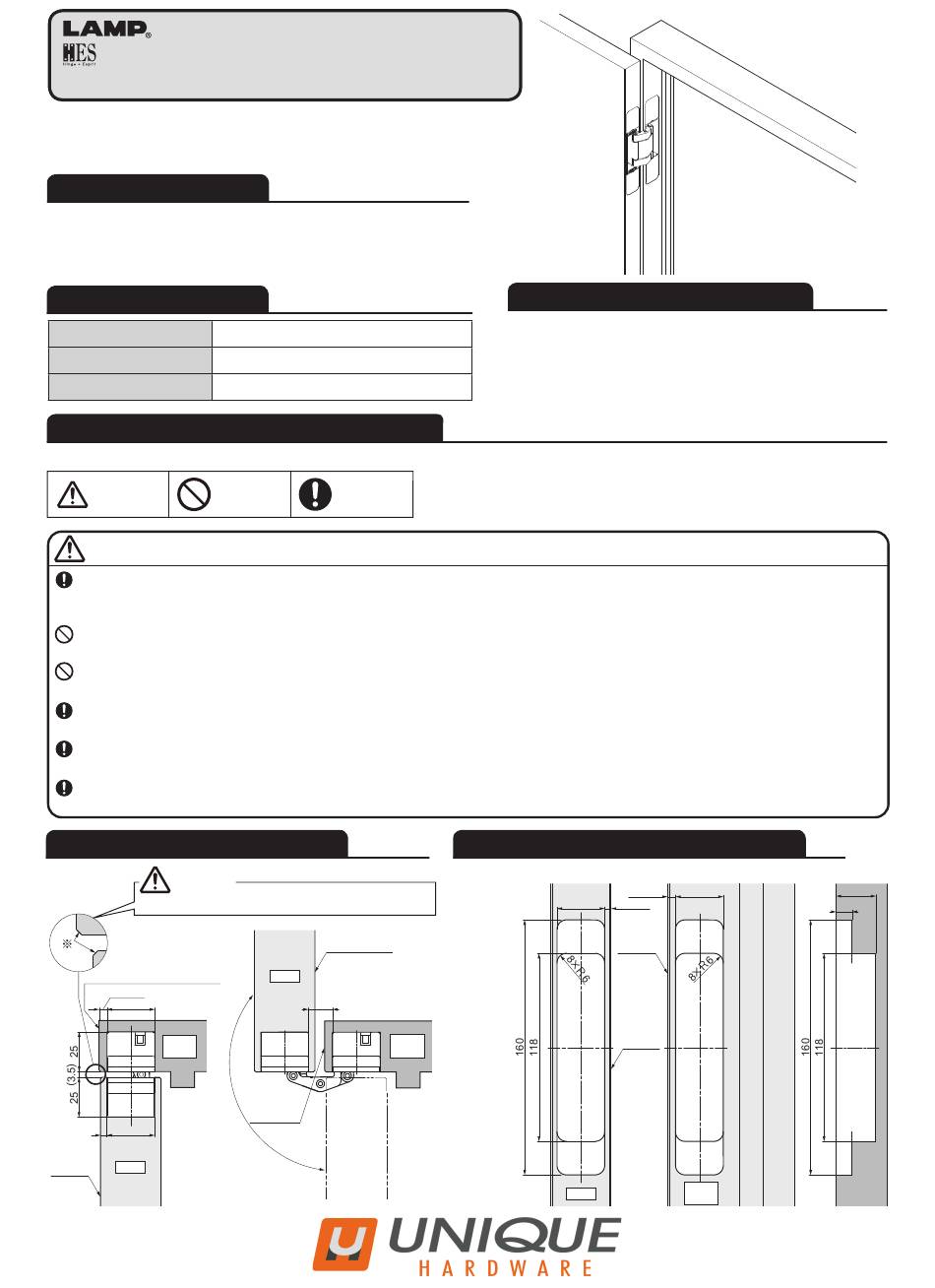

Lamp HES3D-E160 Installation Manual

INSTALLATION MANUAL
FOR HES3D-E160 CONCEALED HINGE
Thank you for selecting our product. Before starting installation,
please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
● This product is a concealed hinge for indoor use, that is
recessed into the cut out on door and doorjamb.
●
T hree dimentional adjustment function allows vertical,
horizontal, and depth adjustment.
DOOR SPECIFICATION
Min. Door thickness
Max. Door weight 55 kg per 2 hinges, 70 kg per 3 hinges
Max. Door size
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Prohibited
Caution
Caution: If not followed, injury or damage may result.
It is necessary to manufacture the frame with sufficient strength so that it endures the weight of the door and any impact upon
opening/closing the door. Only use designated screws and ensure that they are fastened firmly. A frame with poor strength or
loose screws might result in the door falling and causing injury.
Do not try to use this product for anything other than its original purpose. Do not use any part for applications outside of its
specification.
Use in conjunction with a door closer is not recommended. For soft-close option, we recommend Sugatsune LDD-V or LDD-S door
damper.
Make sure to follow the designated dimensions, specifications, and horizontal/vertical angles. Make sure that the frame is not
warped, since it may affect the movement of the door.
This product is a part for architectural fittings. After installation, make sure to test the finished product thoroughly to ensure that it is
well-functioning and safe. Please inform the end user about general precautions and safety to prevent improper use.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time every year
is recommended).
INSTALLATION DRAWING (EXAMPLE)
Caution
※Chamter the marked part with C1, R1,or a larger value.
Reference surface of doorjamb
Max. 5
30
Door
jamb
180°
30
Max. 4
Reference
surface of
Door
door
36 mm
Width: 900 mm, Height: 2400 mm
Required
Reference
surface of door
Door
(15.2)
Door
jamb
Reference
surface of
door frame
COMPONENT PARTS (PER BOX)
・Concealed hinge
・Screw cover
・Template
・Countersunk head tapping screw
5×25 8 pcs x 2 bags
・Hex Key 4mm
CUT OUT DRAWING FOR DOOR AND DOORJAMB
Max. 5
30
Max. 4
Reference
surface of
door frame
Reference
surface of
door
Door
2 pcs
4 pcs x 2 bags
1 pc
1 pc
25
30
10
Door
jamb
1
