Better Homes and Gardens Providence Chaise Lounge Series Assembly Instructions

Wal-mart.Com Assembly Instruction

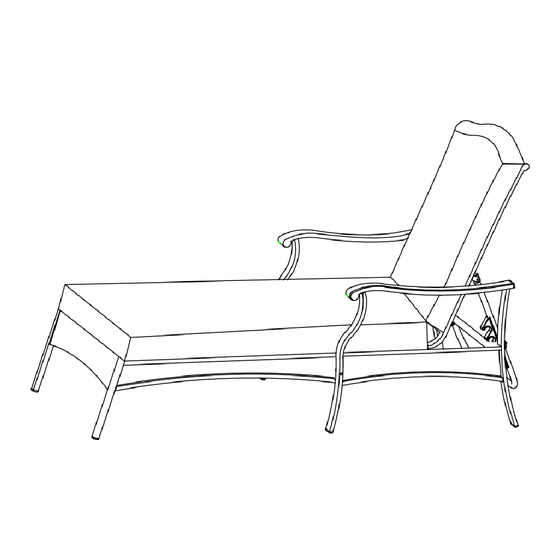

Providence Chaise Lounge Green/Red
Stock# BH15-092-499-02 / BH15-092-499-03
NOTE: Do not completely tighten bolts until all steps are completed.

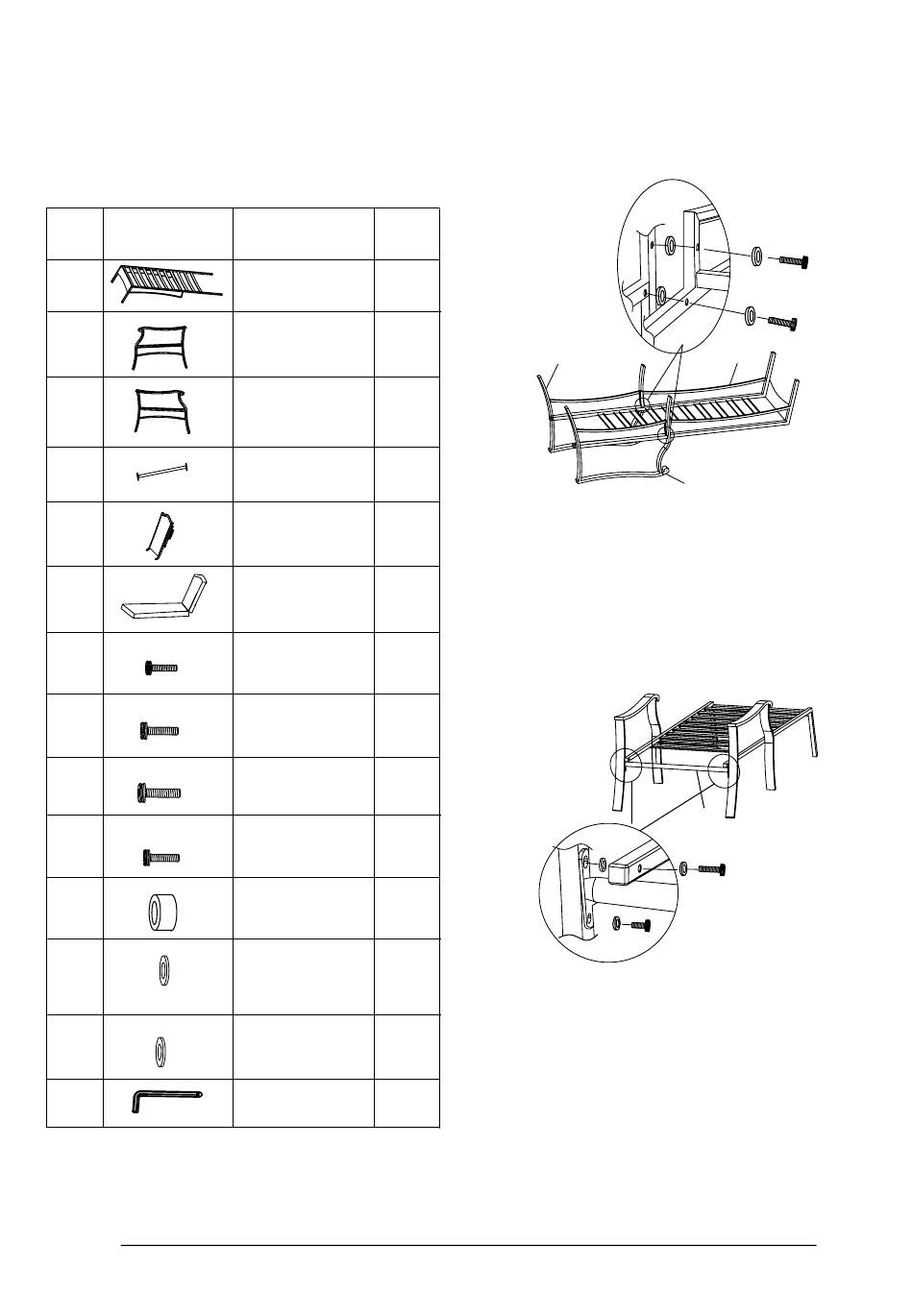

PART
NO.
A
B
C
D
E
F
AA
BB
CC
DD
EE
FF
Thickness 2mm
GG
HH
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905-4107, 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
DESCRIPTION QTY
Seat Frame 1
Right Arm
1
Left Arm
1
Cross Bar
1
Back Frame
1
Cushion
1
M6x15 Bolt 2
M6x38 Bolt
4
M6x45 Bolt
2
M6x23 Bolt
2
Plastic
2
Washer -1
Plastic
12
Washer -2
M6 Washer 4
Allen Wrench 1
Fig. 1
B
Step 1: Place the seat frame (A) upside down on a
soft surface. Attach the right arm (B) to seat frame
(A) by lining up bolt holes. Insert M6x38 bolts (BB)
with plastic washers-2 (FF) and loosely tighten
using allen wrench (HH). Do not over tighten.
Attach the left arm (C) as the above steps.
Please see Fig. 1.
Fig. 2
FF
Fig. 2
AA
GG
Step 2: Place cross bar (D) between right arm (B)
and seat frame (A). Line up bolt holes on cross bar
(D) with corresponding bolt holes of right arm (B).
Secure with M6x15 bolts (AA) and
using allen wrench (HH) to tighten. Insert M6x45
bolts (CC) with plastic
wrench (HH) to tighten seat frame (A) and right arm
(B). Do not over tighten.
Attach the left arm (C) as the above steps.
Please see Fig. 2.
FF
FF
BB
FF
FF
BB
A
C
D
FF
CC
M6 washers (GG)
washers-2 (FF) using allen
