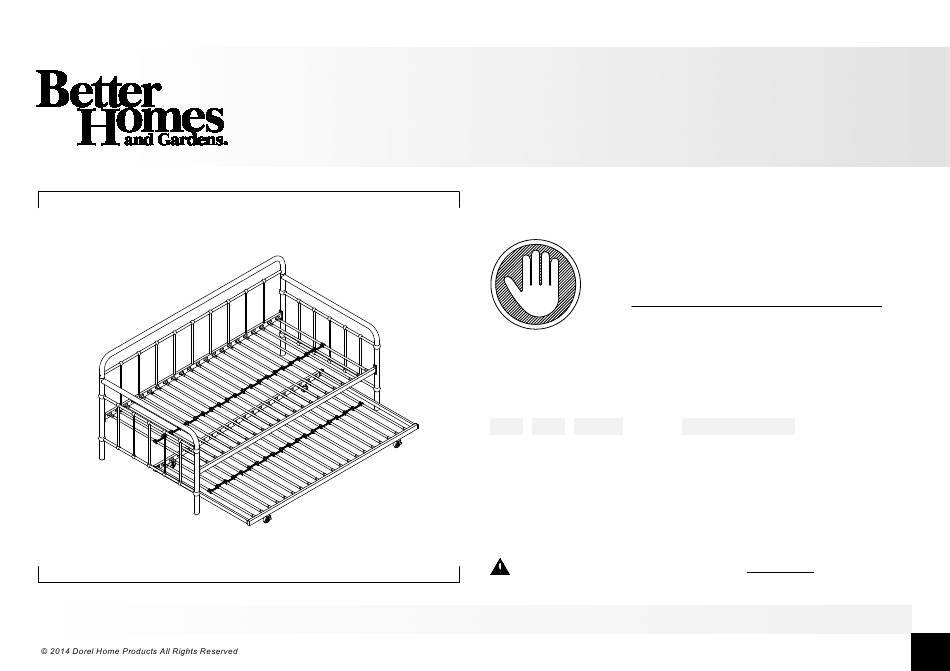

Twin Metal Daybed and Trundle
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4067019W
Kelsey
Lot Number
B344067019W00-10125-M
Black
1

Advertisement

Table of Contents
loading

Related Manuals for Better Homes and Gardens Kelsey 4067019W

Summary of Contents for Better Homes and Gardens Kelsey 4067019W

  • Page 1 4067019W Kelsey Twin Metal Daybed and Trundle Black Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge. Visit www.dhpfurniture.com/eng/support-home or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective 2 (however it is always better parts and assembly labor is not included.
  • Page 3 B344067019W00...
  • Page 4 Parts For Daybed Replacement Parts, visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Side Guard Rail 01 Side Guard Rail 02 Rear Guard Rail Connector Post Before you throw the package, please use the T932880 T932910 T932890...
  • Page 5 Parts For Trundle Replacement Parts, visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Side Rail End Rail Slat Locking Caster Check Box to identify the parts and ensure that T930160 T910390 T919600...
  • Page 6 Hardware Pack:Daybed Hardware Pack #: T4067019W-00 5/16"X 3/4" 1/4"X 2 3/8" Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions. B344067019W00...
  • Page 7 Hardware Pack:Trundle Hardware Pack #: T5499196-01 Wrench 1/4" X 9/16" Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions. B344067019W00...
  • Page 8 Step 1 The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 4. Please use the Daybed Hardware Pack: T4067019W-00. 1.1 Insert (K) onto (I) & (T). 1.2 Attach (J) to (I) & (T) with BOLTS 1. Wide side of the slot should be facing up ! B344067019W00...
  • Page 9 Step 2 Attach the upper side of (F) to (K) with BOLTS 2, Then attach the lower side of (F) to (I) & (T) with BOLTS 1. B344067019W00...
  • Page 10 Step 3 3.1 Insert (O) into (F & J) as illustrated; 3.2 Lock (O) into place with (Y). B344067019W00...
  • Page 11 Step 4 4.1 Press (W) onto (O) as illustrated. 4.2 Press (Q) onto (W) alternating left and right. B344067019W00...
  • Page 12 Step 5 The following instructions will illustrate how to assemble the Trundle from Step 5 to Step 8. Please use the Trundle Hardware Pack: T5499196-01. Attach (N X 2) & (N1 X 2) to (E) using Wrench 3. B344067019W00...
  • Page 13 Step 6 Attach (M X 2) to (E X 2) with Bolt 1. Wide side of the slot should be facing up ! B344067019W00...
  • Page 14 Step 7 7.1 Insert (O) into the slots of both (E). 7.2 Lock (O) into place with (Y). B344067019W00...
  • Page 15 Step 8 8.1 Press (W) onto (O) as illustrated. 8.2 Press (Q) onto (W) alternating left and right. B344067019W00...
  • Page 16 How to use your Trundle: Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever "ON" as illustrated "How to lock caster!". To store your Trundle: Unlock the casters by pushing down the lever "OFF" as illustrated "How to unlock caster!"...

  • Page 17: Helpful Hints

    Helpful Hints Helpful Hints Weight Limit Daybed: 400 Lb / 181 Kg Trundle: 225 Lb / 102 Kg people lifting and carrying the unit to it's new location. reassembled to move. item. They are illustred on this page and available for replacement.
  • Page 18 NO LO REGRESE A LA TIENDA ! 4067019W Kelsey mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Twin Metal Daybed and Trundle Visite www.dhpfurniture.com /spa/support-home o Llame gratis al 1-800-267-1739 Negro Fecha de compra ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
  • Page 19 Lea antes de comenzar a ensamblar Partes Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Todo se incluye en 1 caja grande! (sin embargo es recomendable contar con ayuda adicional). Tiempo estimado de Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para ensamble es 2 horas.
  • Page 20 Instrucciones Cama superior: 400 Lbs/ 181 kgs Paso 1 Cama inferior: 225 Lbs/ 102 kgs al Paso 4. Utilice el paquete Daybed Hardware: T 4067019W-00. 1.1 Inserte (K) en (I) & (T). 1.2 Una (K) con (I) & (T) usando Tornillo 1. Paso 2 Una (F) con (K) usando Tornillo 2 y con (I) &...

  • Page 21: Garantie

    NE RETOURNEZ PAS AU MAGASIN ! 4067019W Kelsey gratuitement. Twin Metal Daybed and Trundle Visitez www.dhpfurniture.com/fre/support-home ou appelez au 1-800-267-1739 Noir Date d'achat Numero de lot IMPORTANTES. Garantie Enregistrez votre produit et participez pour gagner! notre concours trimestriel avec la chance de gagner des prix incroyables. Avantages: pour enregistrer votre produit et vous obtiendrez: Des informations exclusives sur les nouveaux produits...

  • Page 22: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage www.dhpfurniture/fre/support-home plancher et le produit. 2 (cependant il vaut l'assemblage. est de 2 heures. lors de l'assemblage. Entretoise de fin - T910390 Lamelle - T919600 Lit de connexion-T932910 (N1) Roulette de verrouillage - T392990 commercial. Avant rail-T930010 Roulette - T393000 Lamelle-T919600 Entretoise latte 2 - T919490...

  • Page 23: Conseils Utiles

    Instructions Limite de Poids: T 4067019W-00. Conseils utiles personnes pour soulever et transporter le mobilier vers son nouvel emplacement. cette page et disponibles pour le remplacement. 3.2 Verrouiller (O) en place avec (Y). Avertissement 4.1 Puis pousser (W) dans (O). T5499196-01.
