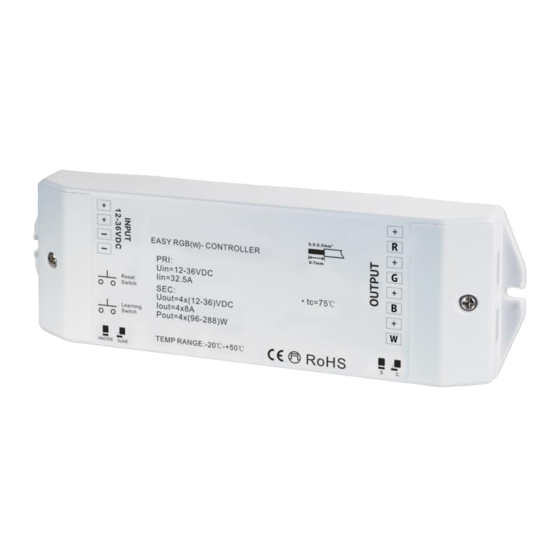

Sunricher 1009EA Quick Start Manual

UNIVERSAL All in One RGBW RFWIFI
Receiver 8A 4CH

Feature

Work with dif f erent sender
Work with WIFI transmitter
Control RGBW, RGB, CC-CW, Single color LED lighting.

Parameter

Input Voltage
Current
4x8A
12-36VDC
Product Size
178.0
2
ISO9 0 0 1 ：2 0 0 8
Output Remarks
4x(96-288)W
Constant v oltage

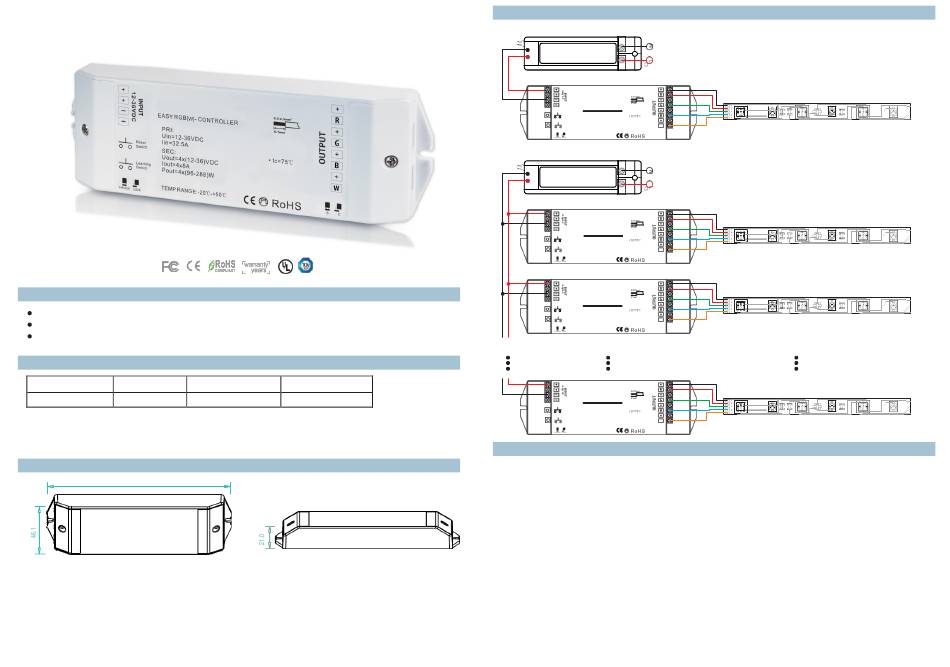

W i ri ng di agram

1) Receiver Connection Diagram for Single Unit

Power Supply
110V-230VAC
12-36VDC
SR-1009EAWi
R eset
Sw i t ch
Lear ni n g W
Sw i t ch

2) Receiver Connection Diagram for Multiple Units

Power Supply
110V-230VAC
12-36VDC
SR-1009EAWi
R eset
Sw i t ch
Lear ni n g
Sw i t ch W
SR-1009EAWi
R eset
Sw i t ch
Lear ni n g
Sw i t ch W
SR-1009EAWi
R eset
Sw i t ch
Lear ni n g
W
Sw i t ch

Operation

Learning (matching)

a . Do wiring according to connection diagram
b . Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiv er.
d . Touch any zone button on remote control.
e . Then touch color wheel.
f. Connected LED light will blink to conf irm zone designation.
g . Press at learning button on receiv er ov er 5 seconds until LED light f lash, then delete the learned ID.
Note 1: To choose a master from slaves by jumper for each zone.
Short circuit for master.
Open circuit for slave.
Each zone only can set one master controller. After a period of time, the master will do synchronization
operation to keep the same color or mode of all slaves in one zone.
Note 2: Each remote control 8 zones (areas) receivers, each area can be learned as many receivers as we
can.
Each receiver maximally can be controlled by 8 different remote controllers.
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
