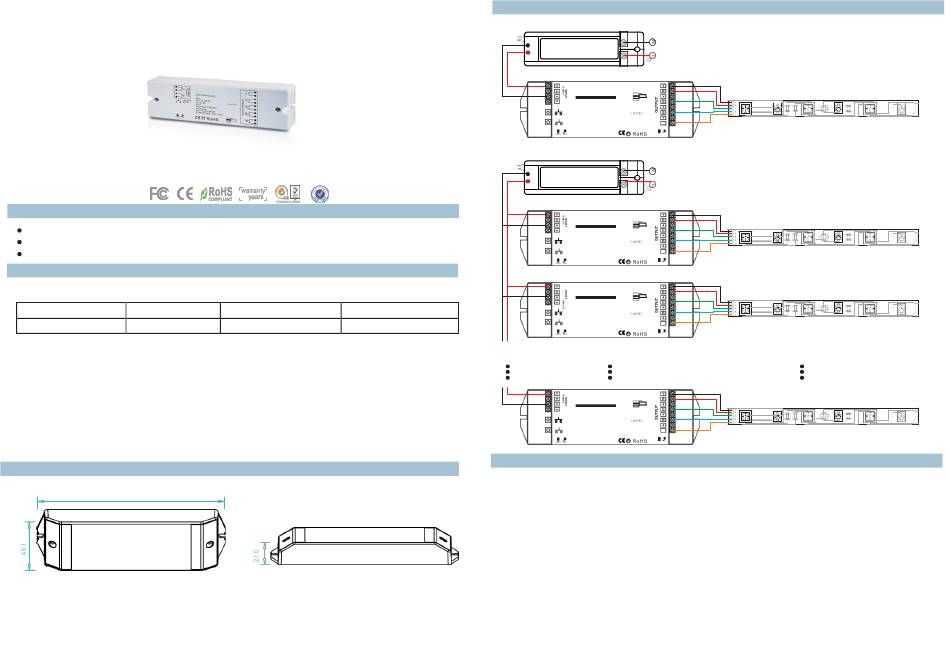

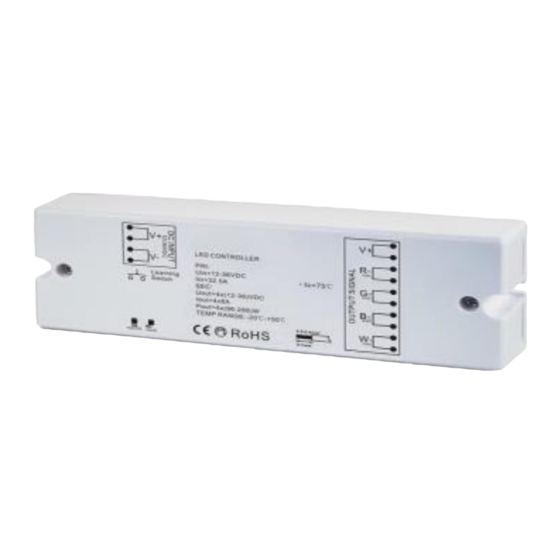

Sunricher 1009WI Quick Start Manual

Receiver for RGBW Remote & Wifi transmitter

Feature

Work with dif f erent sender
Work with WIFI transmitter
Control RGBW, RGB, CC-CW, Single color LED lighting.

Parameter

Iuput Voltage
Current
4x8A
12-36VDC
Suitable sender
All our RF/WIFI controllers and dimmers are suited f or this receiv er.
Product Size
178.0
5
Output Remarks
4x(96-288)W Constant voltage
W i ri ng di agram
1) Receiver Connection Diagram for Single Unit
Power Supply
110V-230VAC
12-36VDC
SR-1009FAWi
PRI:
Ui n =1 2 -3 6 VDC
Ii n =2 0 .5 A
R eset
Sw i t ch
SEC:
Uo u t=4 x (1 2 -3 6 )VDC
I o u t=4 x 5 A
Lear ni n g W
Po u t=4 x(6 0 -1 8 0 )W
Sw i t ch
TEM P RANGE:-2 0 ℃ -+ 5 0 ℃
S C
2) Receiver Connection Diagram for Multiple Units
Power Supply
110V-230VAC
12-36VDC
SR-1009FAWi
PRI:
Ui n =1 2 -3 6 VDC
Ii n =2 0 .5 A
R eset
Sw i t ch SEC:
Uo u t=4 x (1 2 -3 6 )VDC
I o u t=4 x 5 A
Lear ni n g W
Po u t=4 x(6 0 -1 8 0 )W
Sw i t ch
TEM P RANGE:-2 0 ℃ -+ 5 0 ℃
S C
SR-1009FAWi
PRI:
Ui n =1 2 -3 6 VDC
Ii n =2 0 .5 A
R eset
Sw i t ch SEC:
Uo u t=4 x (1 2 -3 6 )VDC
I o u t=4 x 5 A
Lear ni n g W
Sw i t ch Po u t=4 x(6 0 -1 8 0 )W
TEM P RANGE:-2 0 ℃ -+ 5 0 ℃
S C
SR-1009FAWi
PRI:
Ui n =1 2 -3 6 VDC
Ii n =2 0 .5 A
R eset
Sw i t ch
SEC:
Uo u t=4 x (1 2 -3 6 )VDC
I o u t=4 x 5 A
Lear ni n g
Po u t=4 x(6 0 -1 8 0 )W W
Sw i t ch
TEM P RANGE:-2 0 ℃ -+ 5 0 ℃
S C

Operation

Learning (matching)

a . Do wiring according to connection diagram
b . Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiv er.
d . Touch any zone button on remote control.
e . Then touch color wheel.
f. Connected LED light will blink to conf irm zone designation.
g . Press at learning button on receiv er ov er 5 seconds until LED light f lash, then delete the learned ID.
Note 1: To choose a master from slaves by jumper for each zone.
Short circuit for master.
Open circuit for slave.
Each zone only can set one master controller. After a period of time, the master will do synchronization
operation to keep the same color or mode of all slaves in one zone.
Note 2: Each remote control 8 zones (areas) receivers, each area can be learned as many receivers as we
can.
Each receiver maximally can be controlled by 8 different remote controllers.
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
