Sunricher SR-1009EAPD-5C Instructions

5 Channels RF receiver
Important: Read All Instructions Prior to Installation

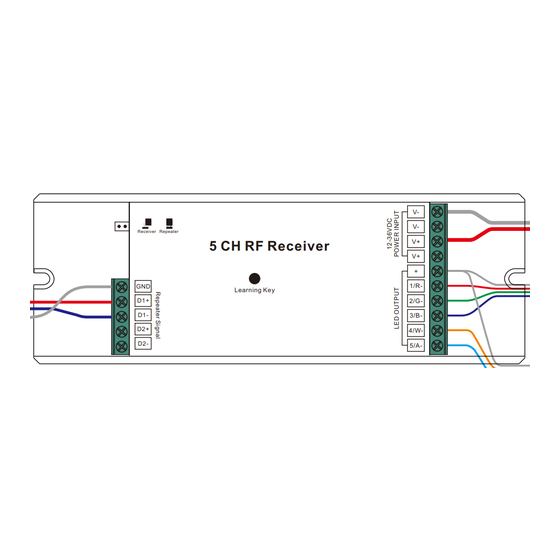

Function introduction
Switch Receiver
/ Repeater
Receiver Repeater
5 CH RF Receiver
GND
Learning Key
D1+
D1-
D2+
D2-
Repeater signal Learning Key:
Paring with RF remote
input/output
Product Data
Input Output Output
Connector
Voltage Current Rating
Current Power
5x5A
12-36VDC 5x(60-180)W Max. 20A
Radio Frequency : 869.5/916.5/434mhz
Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Pair/delete the pairing with RF remote
1.Do wiring according to connection diagram.
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with.
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on.
(2)Press and hold down the " Learning Key" button on receiver for over 3 seconds until the connected light
flashes, which means well deleted.
Receiver/Repeater setting jumper:
One receiver can connect multiple repeaters to realize perfect sync the sync distance can be over 100m no volt
drop.
V-
V-
DC power input
V+
V+
Common Anode Output(+)
+
CH 1:R output(-)
1/R-
CH 2:G output(-)
2/G-
CH 3:B output(-)
3/B-
CH 4:W/WW output(-)
4/W-
CH 5:W/CW output(-)
5/A-
Wire Size Remarks Size(LxWxH)
0.05-3.3mm 2
Constant voltage 170x59x29mm
(12-30AWG)
Product Dimension
70020063

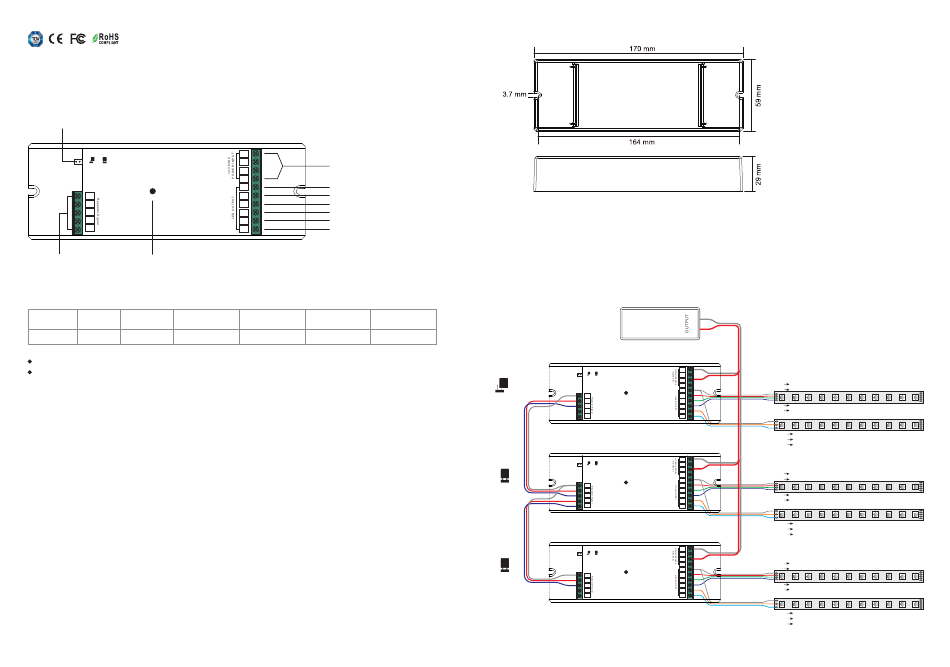

Wiring Diagram
1) When total load of each receiver is not over 20A
Receiver Repeater
Receiver GND
D1+
D1-
D2+
D2-
Receiver Repeater
Repeater GND
D1+
D1-
D2+
D2-
Receiver Repeater
Repeater GND
D1+
D1-
D2+
D2-
V-
12V/24V/36V
CV PSU
V+
V-
V-
5 CH RF Receiver V+
V+
V+
R-
+
1/R-
Learning Key
2/G-
G-
3/B-
B-
4/W-
5/A-
V+
WW-
CW-
V-
V-
V+
5 CH RF Receiver
V+
V+
R-
+
1/R-
Learning Key
2/G-
G-
3/B-
B-
4/W-
5/A-
V+
WW-
CW-
V-
V-
5 CH RF Receiver V+
V+
V+
R-
+
1/R-
Learning Key
2/G-
G-
3/B-
B-
4/W-
5/A-
V+
WW-
CW-
V+
RGB LED Strip
R-
G-
B-
CCT LED Strip
V+
WW-
CW-
V+
RGB LED Strip
R-
G-
B-
CCT LED Strip
V+
WW-
CW-
V+
RGB LED Strip
R-
G-
B-
CCT LED Strip
V+
WW-
CW-
