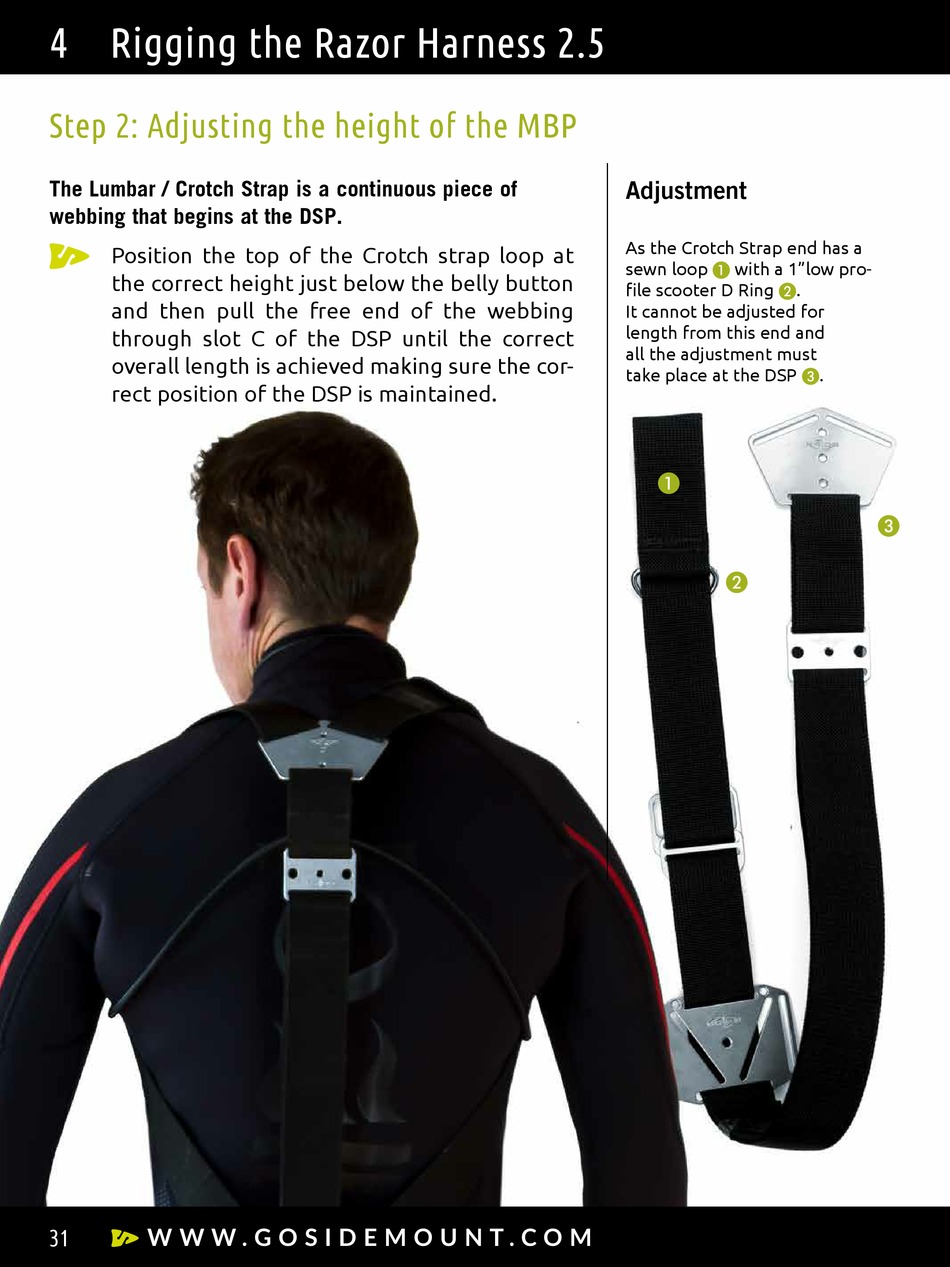

Step 2: Adjusting the height of the MBP

The Lumbar / Crotch Strap is a continuous piece of
webbing that begins at the DSP.
W W W . G O S I D E M O U N T . C O M
Position the top of the Crotch strap loop at
the correct height just below the belly button
and then pull the free end of the webbing
through slot C of the DSP until the correct
overall length is achieved making sure the cor-
rect position of the DSP is maintained.
W W W . G O S I D E M O U N T . C O M
31
Adjustment
As the Crotch Strap end has a
sewn loop with a 1"low pro-
A
file scooter D Ring B.
It cannot be adjusted for
length from this end and
all the adjustment must
take place at the DSP C.
A
B
C
