Razor SIDE MOUNT SYSTEM Manual page 23

4 Rigging the Razor Harness 2.5

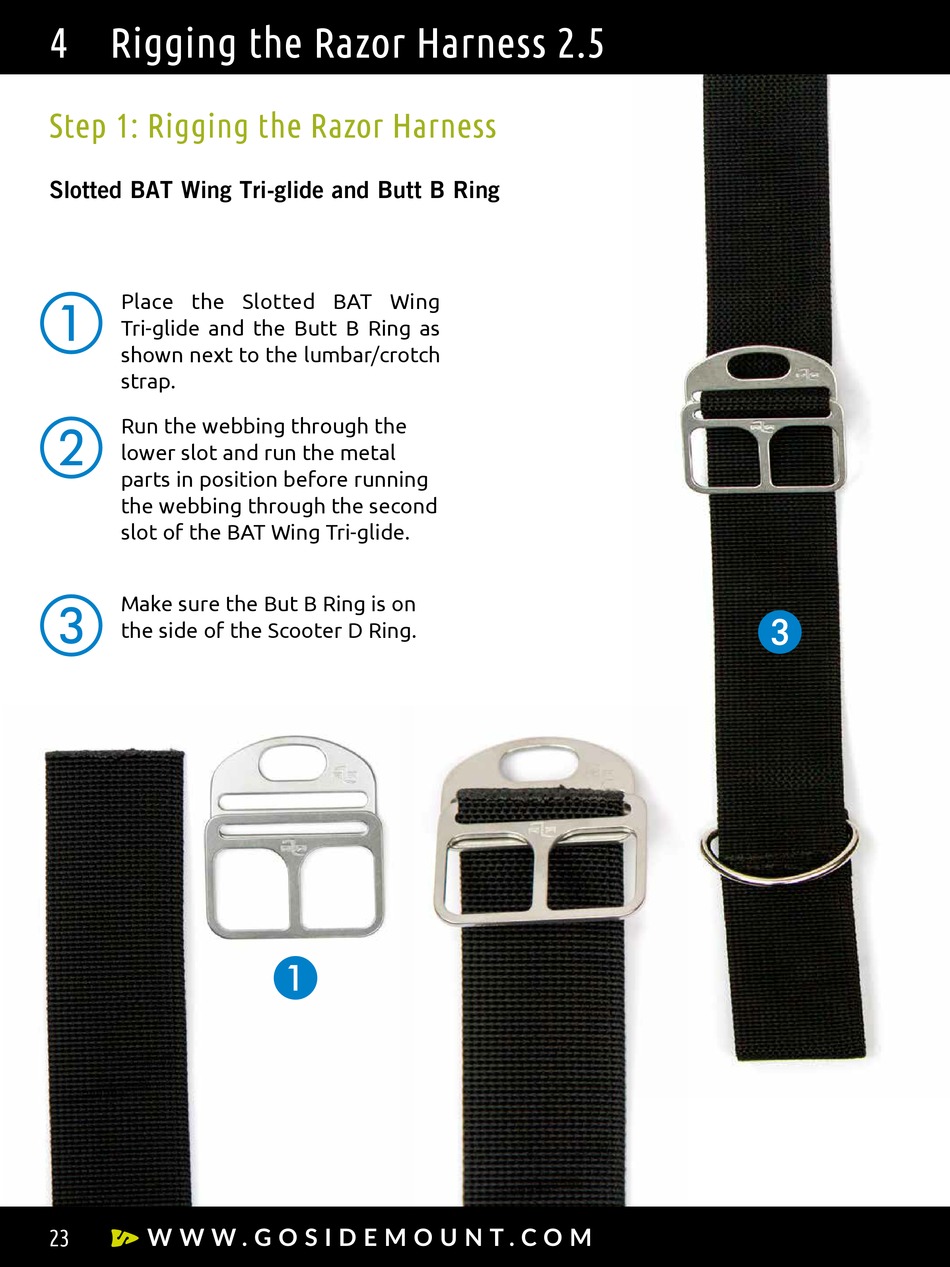

Step 1: Rigging the Razor Harness
Slotted BAT Wing Tri-glide and Butt B Ring
P lace the Slotted BAT Wing
a
Tri-glide and the Butt B Ring as
shown next to the lumbar/crotch
strap.
b R un the webbing through the
lower slot and run the metal
parts in position before running
the webbing through the second
slot of the BAT Wing Tri-glide.
M ake sure the But B Ring is on
c
the side of the Scooter D Ring.
W W W . G O S I D E M O U N T . C O M
23
