Summary of Contents for Razor Bat Wing
- Page 1 M A N U A L R A z O R B A T W I N g S I D E M O U N T S Y S T E M...
-
Page 2: Table Of Contents
1.2 Overview Rigging the Razor BAT Wing 2.1 Tools Step 1: Adjusting and Attaching the top of the BAT Wing to the DSP of the Razor Harness Step 2: Attaching and Adjusting the BAT Wing Waist Bungee Step 3: Attaching and Adjusting the BAT Wing Rear Bungee... -

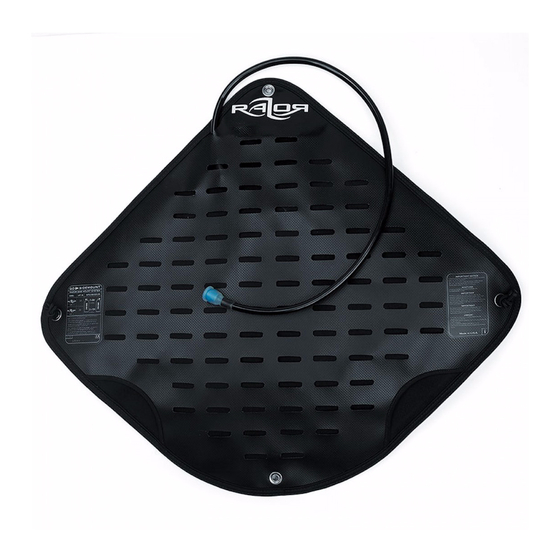

Page 3: The Razor Bat Wing
P rimary wing: 19” large diameter inflation hose with fixed low profile elbow and power inflator L arge Razor Logo Wrap for large diameter Inflation Hose 8 ” LPI Hose fit- ted with Hose Hat H eavy Duty Pull Dump Valve... -
Page 4: Overview
Once your Razor Harness and T Weight System have been set up then you can attach the BAT Wing to the Harness. The BAT Wing should be worn with the Primary Wing on the outside and the Backup Wing on the inside. - Page 5 The Razor BAT Wing 1.2 Overview The Hose Hats can be removed from the LPI hoses simply by just pulling them off if required but are recommended for quick one hand operation of the LPI/Schrader valve connection especially when diving in cold water with thick gloves.
- Page 6 LPI hose delivering from the regulator on the right SM tank. The BAT wing is supplied already set up in this configuration. When using a wetsuit normally the fittings should be switched so that the large diameter inflator hose is on the left...
- Page 7 The Razor BAT Wing 1.2 Overview When changing the fittings make sure that they are not cross threaded when screwing them in. The best way to do this is to turn anti clock- wise until the threads drop into position and then tighten gently. No force should be used to get the threads started.
- Page 8 The Razor BAT Wing 1.2 Overview The orientation of the elbow can be adjusted so that the large diameter inflation hose routes comfortably under the arm and across the chest. To do this start the threads a couple of turns but do not tighten them until the...
- Page 9 The Razor BAT Wing 1.2 Overview When replacing the dump valve it is important that the spring is located in the right position in the center and can move freely so that the valve does not stick in the closed position.
-
Page 10: Rigging The Razor Bat Wing
Rigging the Razor BAT Wing 2.1 Tools You will need the following tools to rig your Razor BAT Wing: A hex wrench to fasten the button head screws. (included with the complete system in the Universal Spares Kit.) A lighter to burn and seal the ends of the cut webing and elastic bungee cord. -
Page 11: Step 1: Adjusting And Attaching The Top Of The Bat Wing
Step 1: Adjusting and Attaching the top of the BAT Wing to the DSP of the Razor Harness The top of the BAT Wing bolts into the DSP of the Razor Harness and should be positioned so that the waist bungee cord and dump valve / infla- tor elbow are at the height of your belly button just above the waist strap of the Razor Harness. -
Page 12: Step 2: Attaching And Adjusting The Bat Wing Waist Bungee
Step 2: Attaching and Adjusting the BAT Wing Waist Bungee The BAT Wing Waist Bungee is designed to secure STYLES the sides of the BAT Wing in a low profile stream- lined position even when the wing is inflated and A simple overhand knot... - Page 13 BAT wing in a nice low profile position when it is inflated and to prevent it from floating away from the divers body.
-
Page 14: Step 3: Attaching And Adjusting The Bat Wing Rear Bungee
Step 3: Attaching and Adjusting the BAT Wing Rear Bungee to the Razor Harness The BAT Wing Rear Bungee is designed to secure the bottom of the BAT Wing in a low profile streamlined position even when the wing is inflated and still give easy unrestricted access to all of the Razor Harness attachment points as well as the coin dump valve of the Backup wing. - Page 15 Rigging the Razor BAT Wing Step 3: Attaching and Adjusting the BAT Wing Rear Bungee to the Razor Harness The Wing Tab can also be removed from the bungee cord if required by pass- ing the hitch of the Lark’s Head Hitch back over the body of the Wing Tab which will just leave the bungee cord attached to the MBP.
- Page 16 Rigging the Razor BAT Wing Step 3: Attaching and Adjusting the BAT Wing Rear Bungee to the Razor Harness The free ends of the bungee cord coming from Lark’s Head Hitch on the Wing Tab should be passed through the slot of the...
-
Page 17: Step 4: Adjusting And Attaching The Large Diameter Inflation
Step 4: Adjusting and Attaching the Large Diameter Inflation Hose of the Primary wing to the Razor Harness With the BAT Wing now attached to the Razor Harness the harness should be put on so that the large diameter inflation hose and power inflator can be correctly positioned. - Page 18 Rigging the Razor Harness: Step 4: Adjusting and Attaching the Large Diameter Inflation Hose of the Primary wing to the Razor Harness The oral inflator mouthpiece should now face up towards the diver with the power inflator button and Schrader valve on the underside.
- Page 19 Rigging the Razor BAT Wing Step 4: Adjusting and Attaching the Large Diameter Inflation Hose of the Primary wing to the Razor Harness The large diameter inflation hose can be secured to the lower shoulder strap of the Razor Harness below the shoulder D ring using the large Logo Wrap pro- vided with the BAT Wing.
-
Page 20: Step 5: Positioning The Oral Inflator Hose Of The Backup Wing
The oral inflator of the Backup wing should be routed over the right shoulder and can be held securely in place by passing it under the neoprene logo wraps on the right hand shoulder of the Razor Harness webbing. The hose should bend towards the center of the chest just above the right shoulder D ring and should be long enough to reach the mouth comfortably. - Page 21 The mouthpiece can be glued in position when you are happy that you have the correct length. Spare mouthpieces are available and it is recommended to carry one in your Razor Expandable Pouch in case you should lose it while diving.
-
Page 22: Step 6: Correct Use Of The Bat Wing
Rigging the Razor BAT Wing Step 6: Correct Use of the BAT Wing Only use one wing at a time either the Primary or the Backup. Make sure the wing you are not using is completely empty while diving so that you only have 1 air space to control. - Page 23 Rigging the Razor BAT Wing Step 6: Correct Use of the BAT Wing To use the oral inflation hose place the very end of the bite on mouthpiece between your teeth horizontally and make a seal around it with your lips.
- Page 24 Rigging the Razor BAT Wing Step 6: Correct Use of the BAT Wing The Backup wing can be deflated in 3 ways: • By using the coin dump at the rear of the wing. Roll slightly to the left and...
- Page 25 Rigging the Razor BAT Wing Step 6: Correct Use of the BAT Wing Please note that the coin dump valve also functions as an over pressure relief valve so that in the event you have a lot of gas in the Backup wing and start to ascend it will vent automatically to prevent a wing rupture.
-
Page 26: Last Step: Go Diving
Last Step: Go Diving! There is no substitute for time spent in the water. Take it easy to begin with while you get used to your new Razor Side Mount System. Please contact Go Side Mount directly if you have any questions or problems with your Razor BAT Wing. - Page 27 CAvE SOfTLY, DIvE SAfELY! S I D E M O U N T S Y S T E M...
