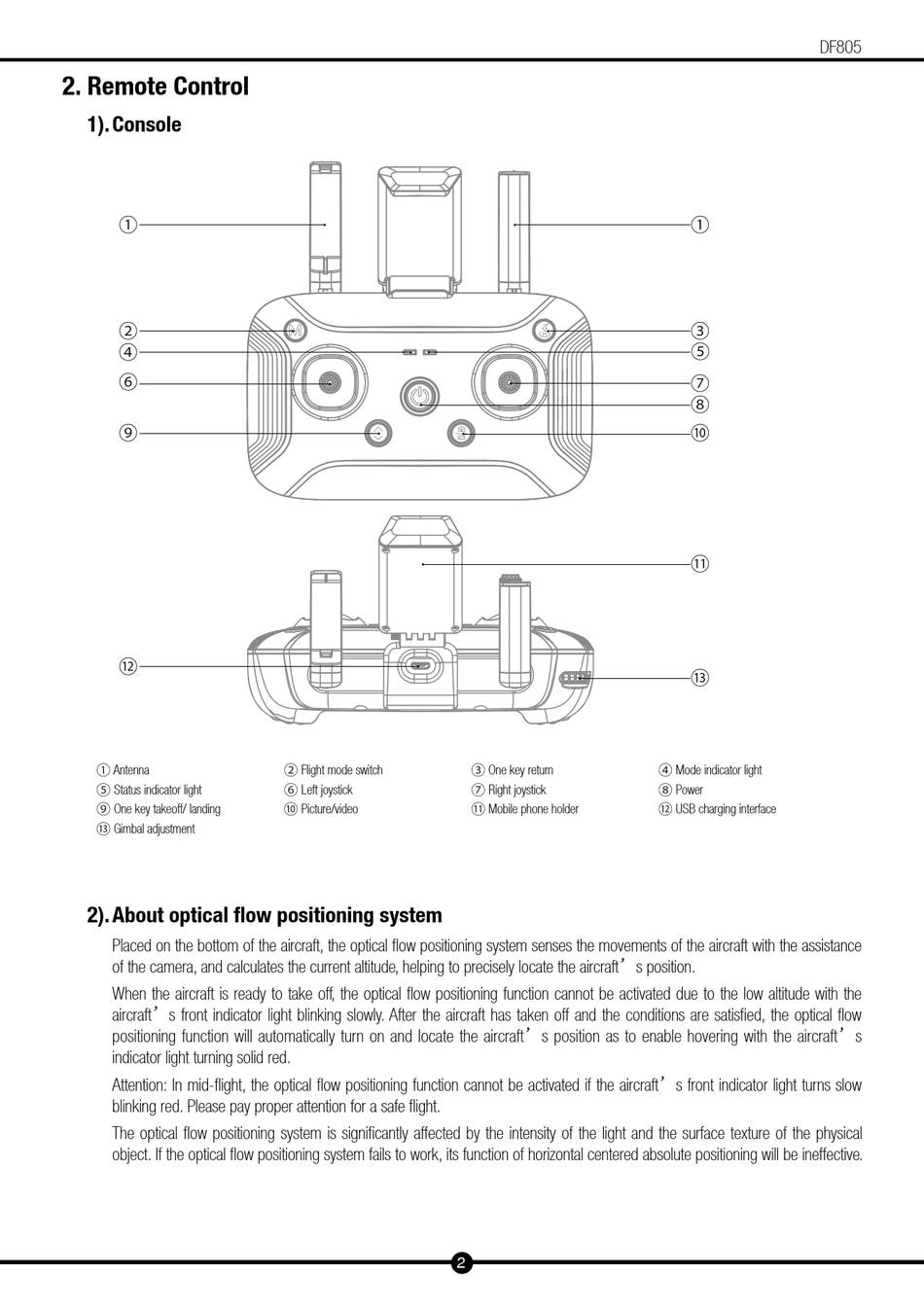

2. Remote Control

1). Console
a
b
d
f
i
l
a Antenna
e Status indicator light
i One key takeoff/ landing
m Gimbal adjustment
2). About optical ow positioning system
Placed on the bottom of the aircraft, the optical flow positioning system senses the movements of the aircraft with the assistance
of the camera, and calculates the current altitude, helping to precisely locate the aircraft's position.
When the aircraft is ready to take off, the optical flow positioning function cannot be activated due to the low altitude with the
aircraft's front indicator light blinking slowly. After the aircraft has taken off and the conditions are satisfied, the optical flow
positioning function will automatically turn on and locate the aircraft's position as to enable hovering with the aircraft's
indicator light turning solid red.
Attention: In mid-flight, the optical flow positioning function cannot be activated if the aircraft's front indicator light turns slow
blinking red. Please pay proper attention for a safe flight.
The optical flow positioning system is significantly affected by the intensity of the light and the surface texture of the physical
object. If the optical flow positioning system fails to work, its function of horizontal centered absolute positioning will be ineffective.
b Flight mode switch
f Left joystick
j Picture/video
2
c One key return
g Right joystick
k Mobile phone holder
DF805
a
c
e
g
h
j
k
m
d Mode indicator light
h Power
l USB charging interface
