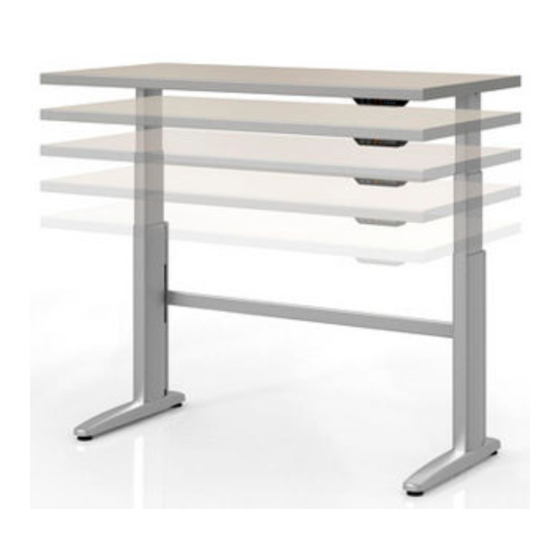

KI Genesis Assembly Instructions

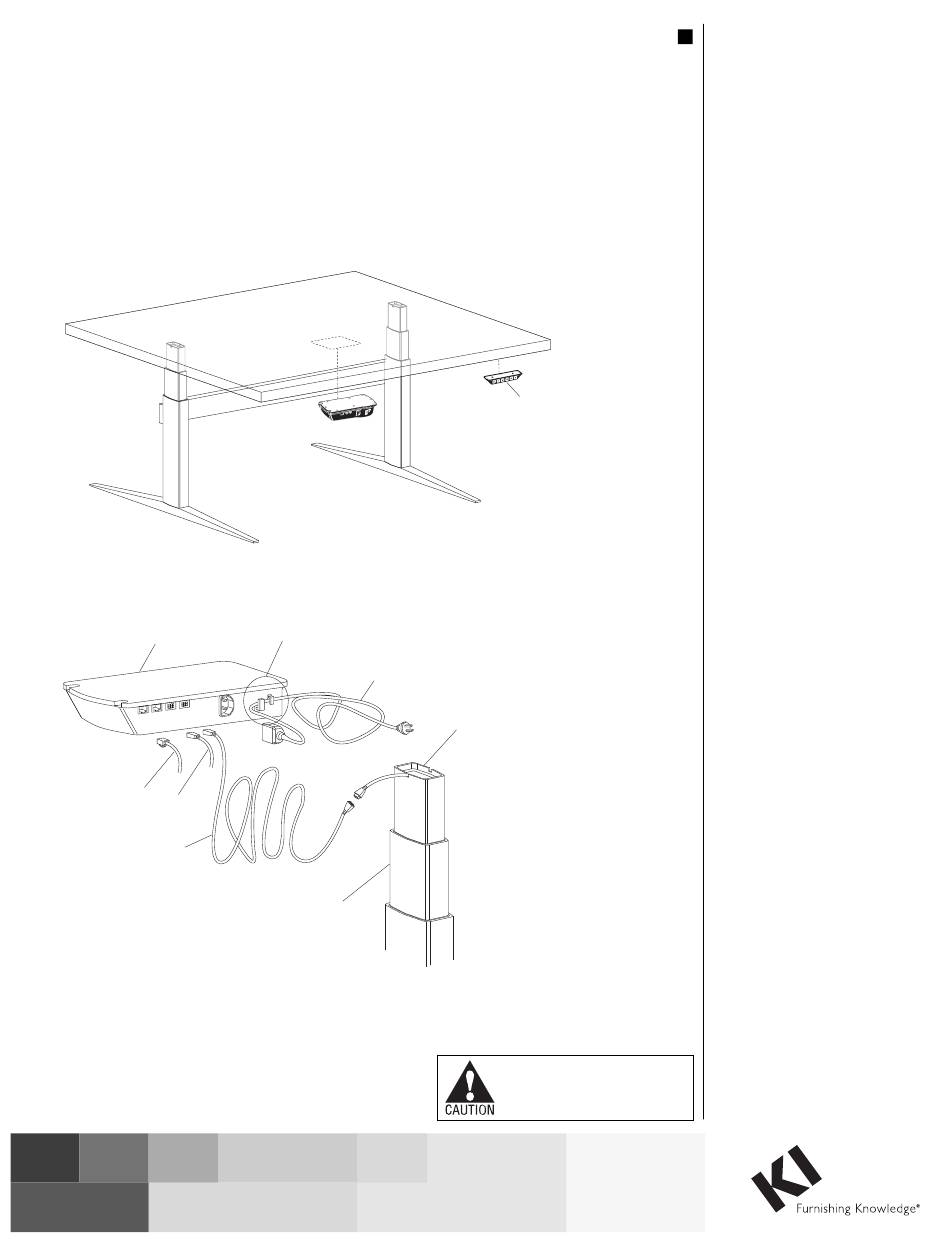

Figure 1
control box
control switch
left-side
cable
leg cable
right-side
leg cable
Figure 2
A s s e m b l y I n s t r u c t i o n s
G e n e s i s
mounting site
for control box
under worksurface
hooks for cable strain relief
power cord
not shown for clarity
table leg
® M o t o r i z e d Ta b l e
A u g u s t 2 0 0 9
suggested mounting site
for control switch
attachment plate
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and injury.
Mounting the Control Box and
Control Switch
1. Mount the control box to the
underside of the worksurface
using four #10 x 1" screws
(Figure 1).
2. Mount the control switch to the
front underside of the worksurface
using two #10 x 5 / " screws
8
(Figure 1).
Electrical Connections
1. Plug the control switch cable into
the appropriate receptacle on the
control box (Figure 1).
2. Connect one end of a leg cable to
the plug extending from the
left-side leg. Plug the other end of
the leg cable into the appropriate
receptacle on the control box
(Figure 2).
3. Connect one end of a leg cable to
the plug extending from the
right-side leg. Plug the other end
of the leg cable into the
appropriate receptacle on the
control box (Figure 2).
4. Plug the power cord into the
appropriate receptacle on the
control box. Insert the power cord
into the hooks to provide
adequate strain relief for the cord
(Figure 2). Plug the other end of
the power cord into an electrical
receptacle rated for the
appropriate voltage as stated on
the control box label.
