U-Line H-4295 Manual

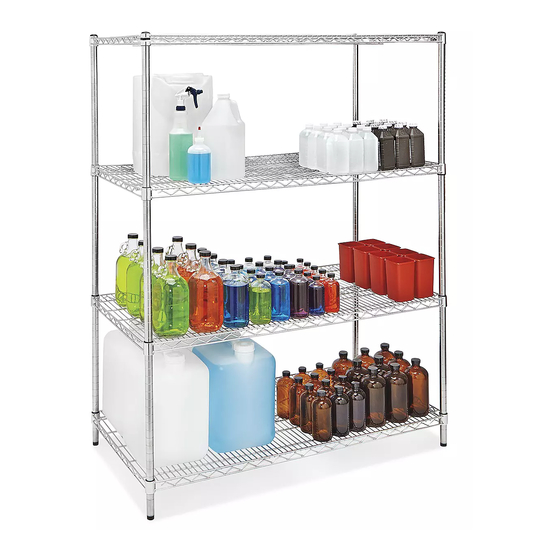

STAINLESS STEEL WIRE SHELVING
π
1-800-295-5510

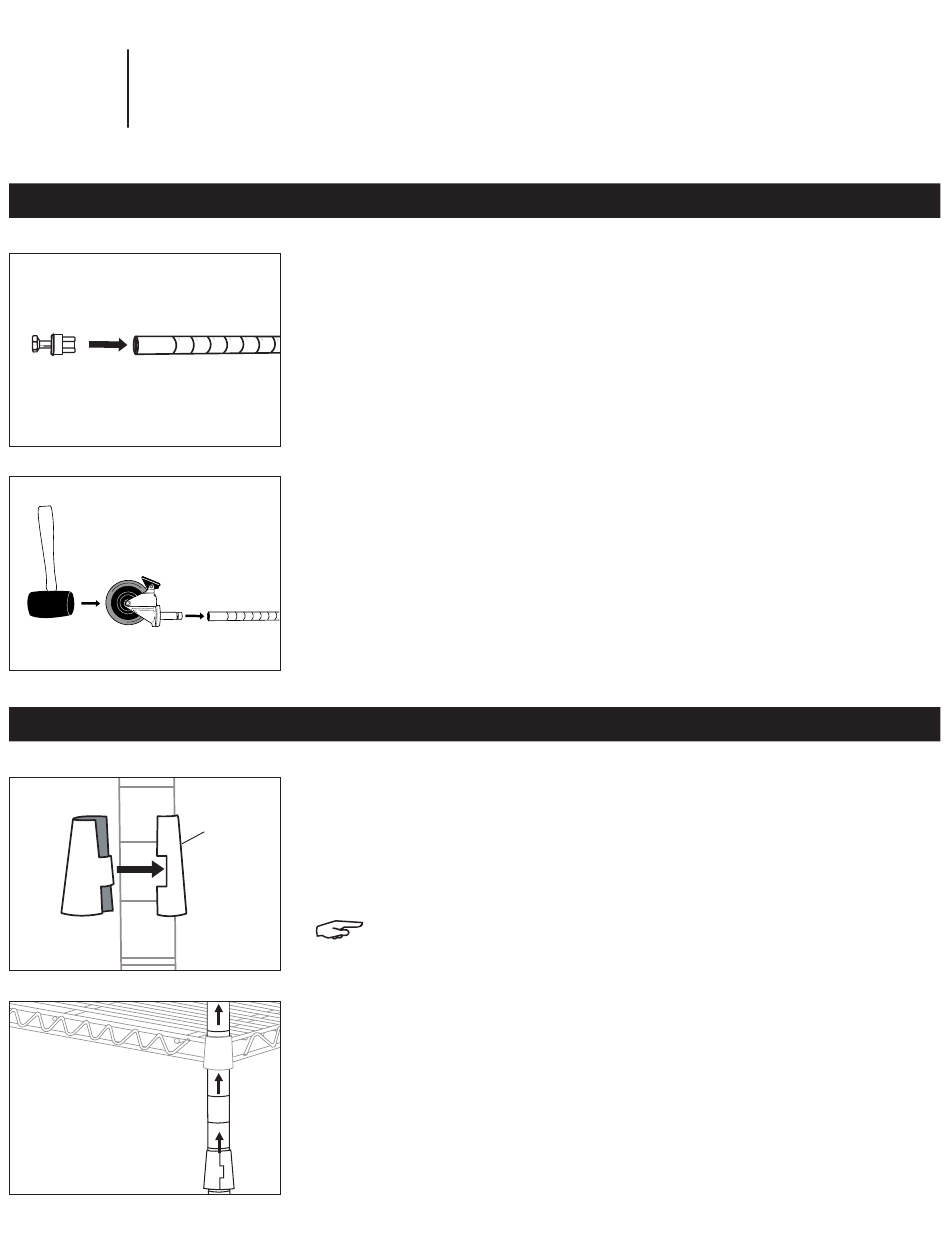

INSTALLATION OF SELF-LEVELERS AND OPTIONAL CASTERS
Figure 1
Figure 2
Figure 3
Figure 4
PAGE 1 OF 2
uline.com
TO INSTALL SELF-LEVELERS
1. Make sure post is positioned as shown. (See Figure 1)
2. Insert self-leveler into open end of post.
3. Tap on ground until self-leveler slides into post.
4. Repeat steps 1-3 for other posts.
TO INSTALL OPTIONAL CASTERS
1. Make sure post is positioned as shown. (See Figure 2)
2. Engage the wheel brakes to keep casters from rolling during
assembly. Use a rubber mallet to tap caster stems into posts.
(See Figure 2)
3. Repeat steps 1 and 2 for other posts.
INSTRUCTIONS FOR UNIT ASSEMBLY
1. Start with the lowest shelf. Snap the interlocking pieces of a
shelf support (wide end down) around the post at the lowest
Shelf
groove where shelf is to be located. Slide the support up or
Support
down until it snaps onto the groove. Add a shelf support to the
same place on the remaining posts. (See Figure 3)
NOTE: NSF requires food service applications to keep the
lowest shelf at least 6" above the floor.
2. Slide posts through underside of shelf until shelf slides firmly
over supports. (See Figure 4)
1113 IH-4295
