tornos BS 20.8 Quick Start Manual

TRANSPORT INFO
BS 20.8
∆
WEIGHT without pallet :
1

INSPECTION ON RECEPTION

2
– Check the packing for alterations.
If altered :
– Inspect the content immediately.
– Record any irregularity in
the transport documents.
– Inspect the machine on startup
for any damage that can be
established at that stage only.
– If you find any, advise the
forwarding agent in writing.
4

HANDLING

∆
Caution !
Use the points shown opposite for
lifting and moving the machine
about. Make sure your handling
hardware is adequate.

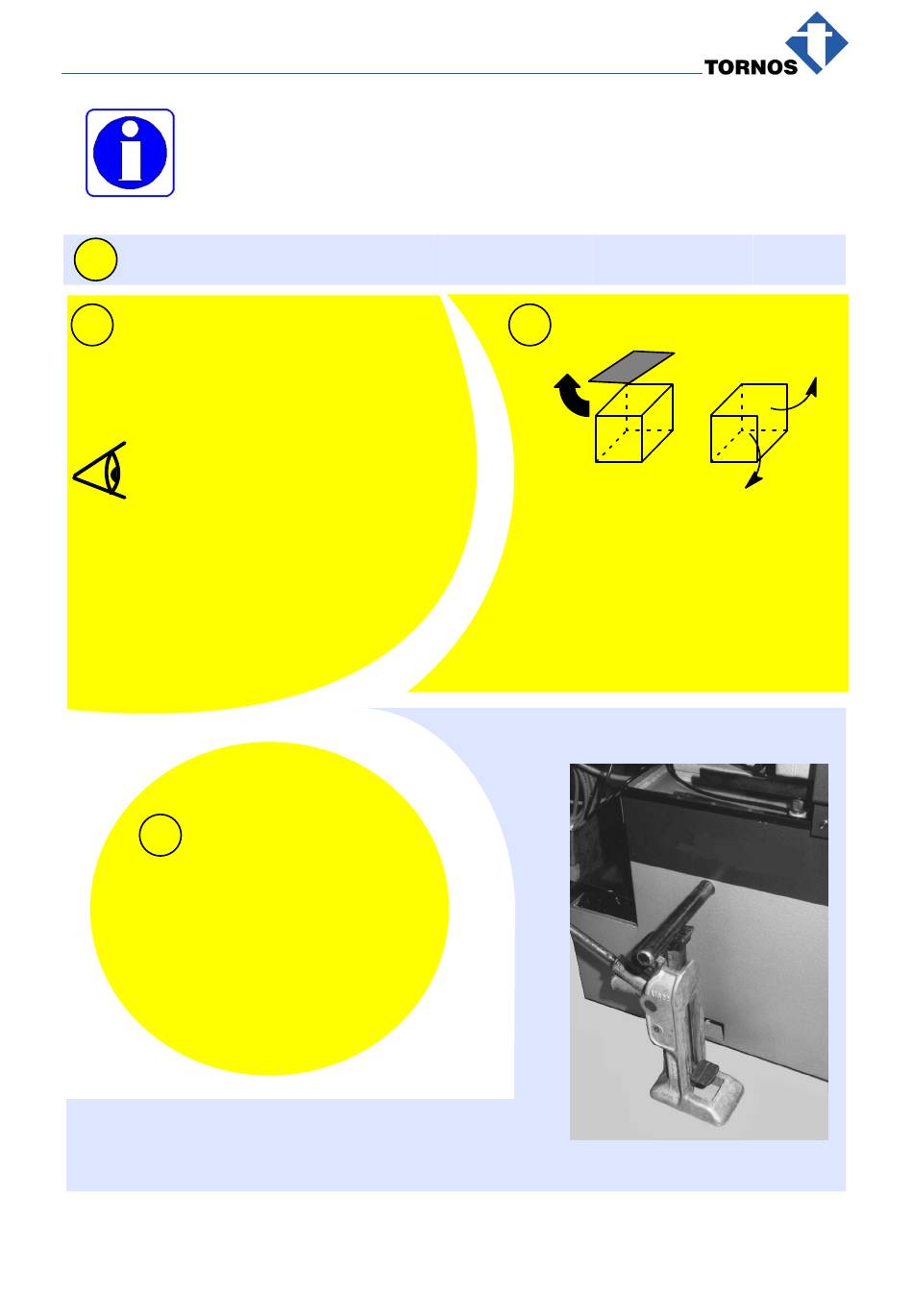

HANDLING WITH HYDRAULIC JACKS

– Pass two 50mm-dia. rods through Cylindrical
Passages B in Fig. 2.
– Put four jacks each under one end of the lifting pipe.
Caution ! Before you unpack and handle the machine and to avoid
any damage to persons or property, read the safety directives given in
the Instructions 300291.
300355 E – 01/01
6000 kg
3

UNPACKING

– Remove Top Cover 1.
– Take away Side Walls 2.
– Remove the four steel cov-
ers of shock absorbers if
any.
– Do not remove the locks
until the machine is properly
located.
1 2
(B)
Fig. 1
Chap. / 1
