Dante Connection Examples

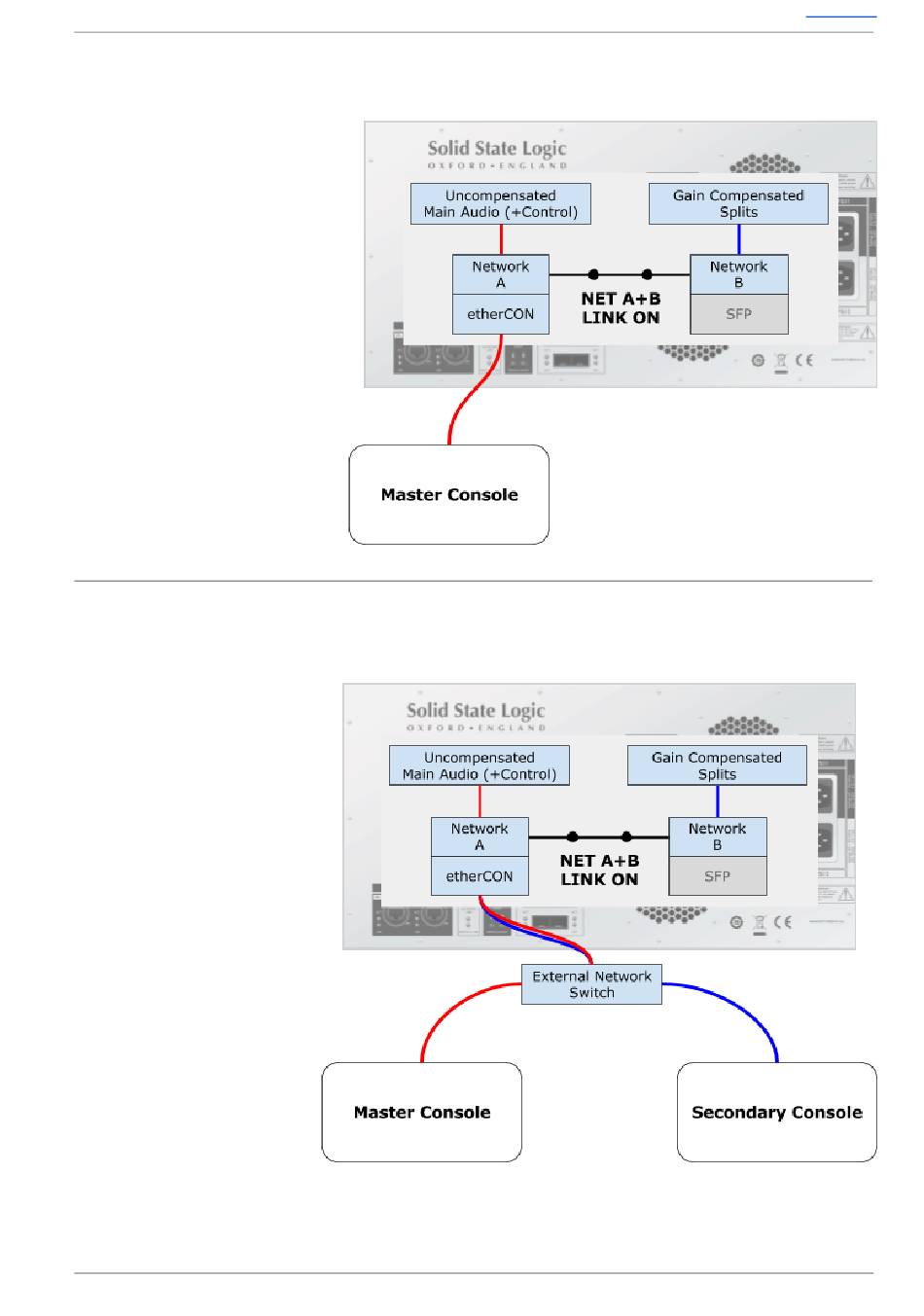

Gain-dependant source and gain-compensated splits available to master console
In this mode, both the
gain-dependant and the
gain-compensated splits are
available to the master console.
Stagebox outputs are available to
the master console.
Gain-dependant source and gain-compensated splits available to both consoles (no SFP's fitted -
external switch connected)
In this mode both the
gain-dependant and the
gain-compensated splits are
available to both consoles
(no SFP's fitted - external
switch connected). Input
ownership and stagebox
outputs are available to
either console
Page 9 of 25
