Mocka Hobart Assembly Instructions Manual

Six drawer
Hide thumbs Also See for Hobart:

Advertisement

Quick Links

Download this manual

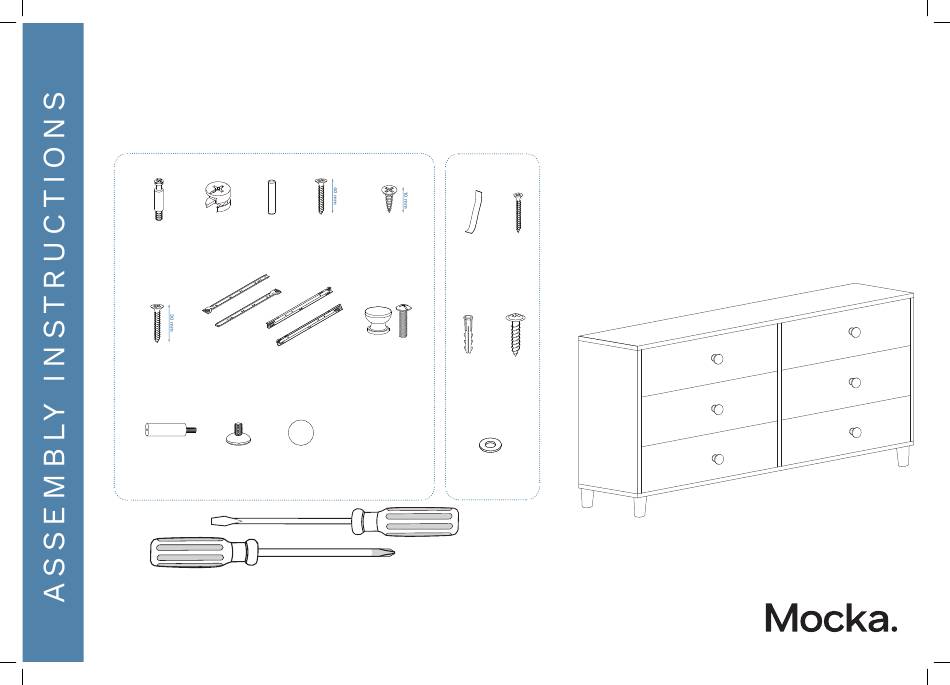

Hobart Six Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
48 x
48 x
20 x
bolt
locking
dowel
nut
F
CL
DL
CR
30 x
12 x
12 x
medium
L+R
L+R
screw
slide rail
slide rail
J
K
24 x
1 x
1 x
cover
shelf plug
long screw
HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
E
W
10 x
48 x
long
small
1 x
screw
screw
safety
strap
I
X
DR
6 x
1 x
handle
wall
anchor
L
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Z
1 x

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hobart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Hobart

Summary of Contents for Mocka Hobart

  • Page 1 Hobart Six Drawer Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
  • Page 2 Hobart Six Drawer Attach 3 x left slide rails (CL) to panel [3] and secure with 6 x small screws (E). Attach 1 x wall strap (W) to panel [1] using 1 x screw (Y). Insert 10 x bolts (A) into Insert 2 x bolts (A) into panel [3].
  • Page 3 Hobart Six Drawer Attach 3 x right slide rails (CR) to panel [4] and secure with 6 x small screws (E). Attach 3 x left slide rails (CL) to panel [5] and secure with 6 x small screws (E). Insert 2 x bolts (A) into panel [4]. Tighten with a screwdriver.
  • Page 4 Hobart Six Drawer Insert 4 x dowels (C) to panels [4], [5] and [6]. Attach panels [4] and [5] to panels Attach 3 x right slide rails (CR) to panel [5] and secure with 6 x small screws (E). [6] and secure with 4 x locking nuts (B). Tighten with a screwdriver.
  • Page 5 Hobart Six Drawer Insert 4 x dowels (C) to panels [3], [5] and [6]. Attach panels [3] and [5] to panels Insert 6 x dowels (C) into panels [3], [4] and [5]. Attach panel [2] to panels [6] and secure with 4 x locking nuts (B). Tighten with a screwdriver.
  • Page 6 Hobart Six Drawer Slide panels [9] and [10] between the grooves on panels [3] and [4] and [7] to Attach 1 x long screw (K) to centre support (J) as shown. Firmly screw 4 legs form theback of the unit as shown.
  • Page 7 Hobart Six Drawer Drawers x 6 Insert 6 x dowels (C) into panel [3], [4] and [5]. Attach panel [1] to panels [3], Attach panels [12], [13] and [14] to panels [16], secure with 30 x medium screws (F). [4], [5] and [7], secuure with 10 x locking nuts (B). Tighten with a screwdriver.
  • Page 8 Hobart Six Drawer Drawers x 6 Drawers x 6 Attach 30 x bolts (A) into panels [11]. Insert 6 x handles (I) into panels [11]. Slide panels [15] between the grooves on panels [12], [13] and [16] to form the Tighten with a screwdriver.
  • Page 9 Hobart Six Drawer Drawers x 6 Drawers x 6 x 24 Attach panels [11] to panels [12], [13] and [14], secure with 30 x locking nuts Attach 12 x slide rails (DL) and (DR) to panels [12] and [13], secure with 24 x small screws (E).
  • Page 10 Hobart Six Drawer Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
