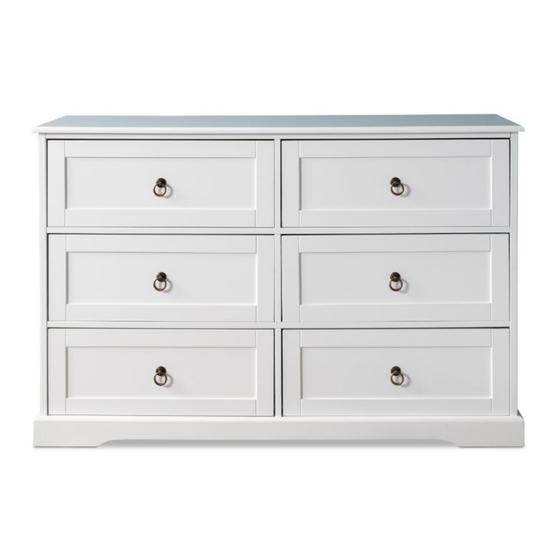

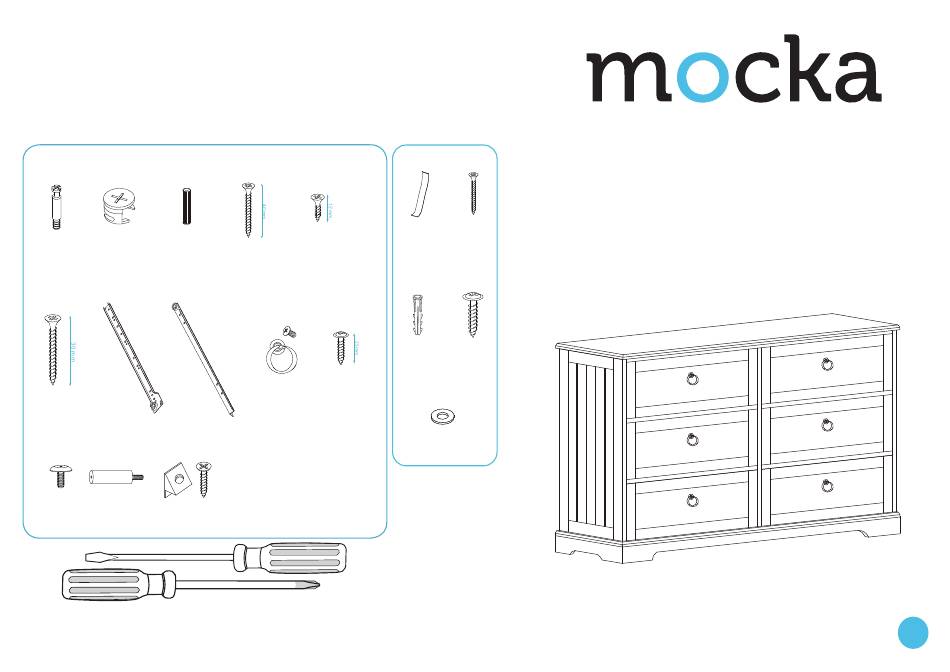

Hamptons Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
C
B
bolt
locking
dowel
x34
nut x 34
x16
F
G
H
L + R
L + R
long
slide rail
slide rail
screw x 24
x12
x12
P
K
L
1
long
shelf
wedge
screw x1
plug x1
x12
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
E
D
small
long
screw x48
screw x 6
I
J
small
handle
x 6
screw x4
Hardware Supplied
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Hamptons Six
Summary of Contents for Mocka Hamptons Six
- Page 1 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 6 x bolt (A) into panels [1] .Attach 4 x screw (J) into panel [6] and[1]. Attach 3 x left slide rail (G) to panel [3] and secure with 6 x small screw (E).
- Page 3 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 3 x left slide rail (G) and 3 x right slide rail (G) to panel [6] and secure Insert 4 x dowel (C) into panel [7]. Attach panel [7] to panels [3] and [4] with 12 x small screw (E).
- Page 4 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach panels [3] and [4] and [5] to panel [2] and secure with 6 x long screws(D). Insert 6 x dowel (C) into panel [3] and [4] and [5]and [2] .
- Page 5 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Slide panel [8] and [9] between the grooves on panels [3]and[4] and [5] to Insert 6 x dowel (C) into panel [1]. Attach panel [1] to panels [3] and [4],[5] form the back of the unit as shown.
- Page 6 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x6) Drawers (x6) Insert 24 x bolts (A) into panel [13] .Attach panels [10] and [11] to panel Slide panels [14] between the grooves on panels [10] and [11] to form thebase [8]]secure with 24 xlocking nuts (B).
- Page 7 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x6) Drawers (x6) Attach panel [12] to panels and [10] and [11] secure with 24 x Attach 12 x slide rails (H) to panels [10] and [11] and secure with 24 x small medium screws(F).
- Page 8 Hamptons Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Strap Washer wall anchor wall screw wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (W).
