Hatcher Ladder Bookcase
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt and nut
40mm screw
set x 10
x 8
F
E E 1 1
E E 2 2
rail
12mm screw
x 2
x 4
I
J
25mm screw
wall plug
x 2
x 2

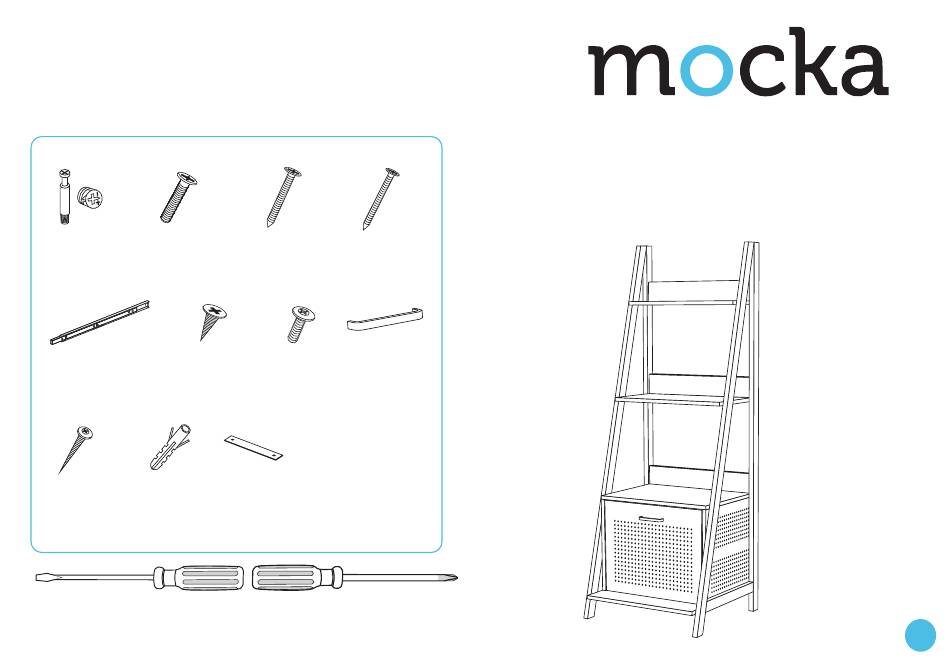

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
50mm screw
70mm screw
x 28
x 4
G
H
6mm screw
handle
x 6
x 1
K
safety strap
x 2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthquake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
