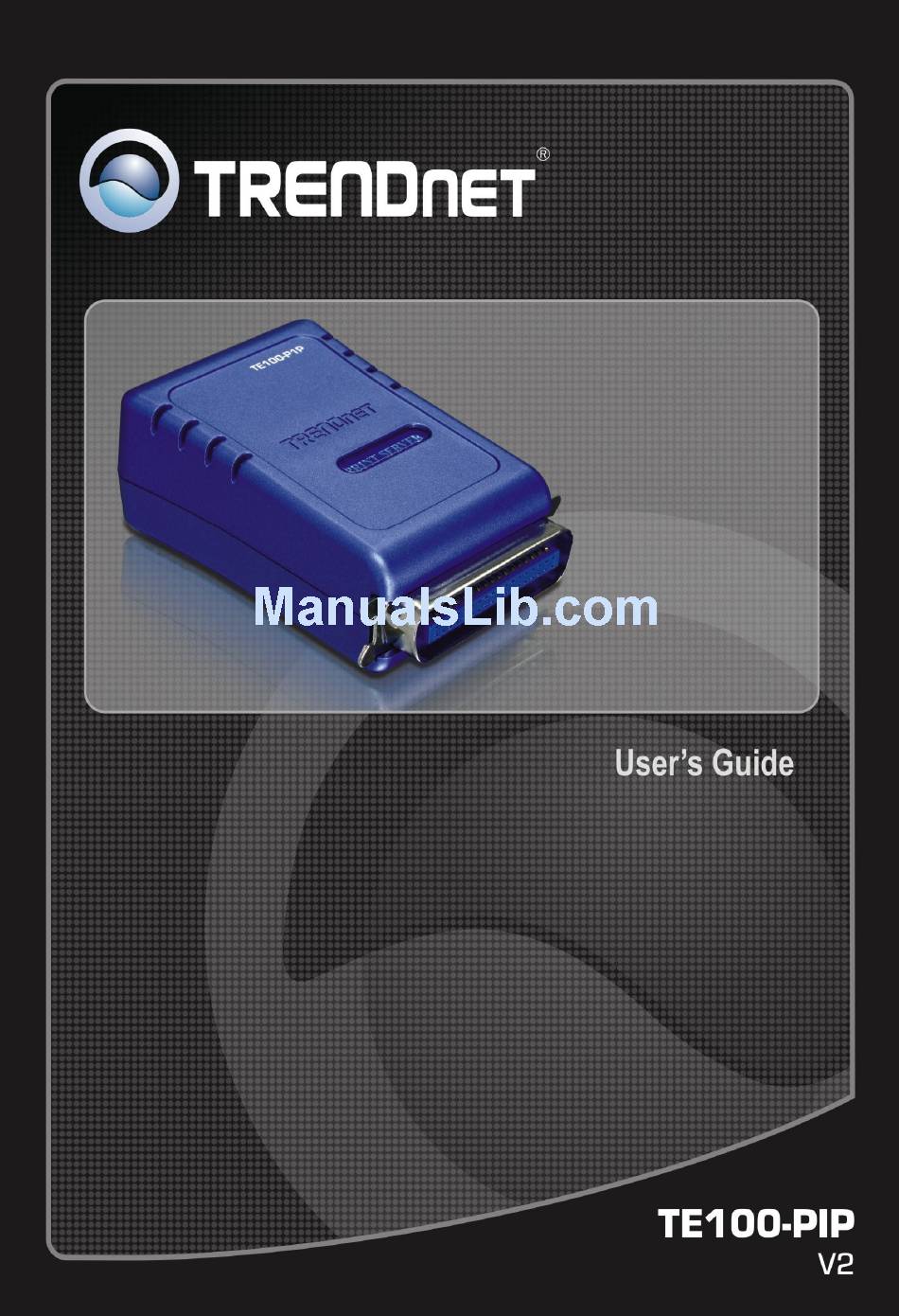

TRENDnet TE100-PIP User Manual

10/100mbps parallel print server
Hide thumbs Also See for TE100-PIP:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TE100-PIP

Summary of Contents for TRENDnet TE100-PIP

  • Page 2: Table Of Contents

    ABLE OF ABOUT THIS GUIDE ... 3 INTRODUCTION ... 5 ... 6 ACKAGE ONTENTS YSTEM EQUIREMENTS ... 7 ENERAL EATURES ... 8 RODUCT HARDWARE INSTALLATION ... 10 ETWORKING PPLICATION NSTALLING THE RINT USING THE UTILITIES ... 12 NSTALLATION PS-U ... 14 TILITY Installing PS-Utility ...
  • Page 3 NSTALLING THE LPR P DDING RINTER RINTING FROM INDOWS TCP/IP P ETTING RINTING PRINTING IN WINDOWS 7/VISTA/XP/2000 ... 47 ETTING INDOWS ETTING INDOWS ETTING INDOWS PRINTING IN MAC OS ... 69 MAC 10.6 SNOW LEOPARD USER ... 69 MAC 10.5 LEOPARD USER ... 79 MAC OS 10.4 TIGER USER ...

  • Page 4: About This Guide

    BOUT THIS This manual provides instructions and illustrations on how to use your 10/100Mbps Parallel Print Server, including:  Chapter 1, Introduction, provides the general information on the product.  Chapter 2, Hardware Installation, describes the hardware installation procedure for the product. ...
  • Page 5 respective information, please ask your net work administrator or MIS staff for help.

  • Page 6: Introduction

    NTRODUCTION Congratulations on purchasing your 10/100Mbps Parallel Print Server, the easiest and fastest way to deploy printers on your network. This compact print server can connect your network through a switch or hub between PC/Notebook and print server anywhere you wish to locate printer services.

  • Page 7: Package Contents

    Package Contents Unpack the package and check all the items carefully, and inspect that you have the following:  One TE100-P1P  One AC Power Adapter suitable for your country’s electric power service.  One Multiple-Language Quick Installation Guide.  One Installation CD-ROM containing the PS-Utility program and the User’s Guide.

  • Page 8: General Features

    General Features  Compliant with Bi-directional 36-pin parallel port  Equipped 10/100 auto-MDIX Fast Ethernet LAN port  Multi protocol support is ideal for shared printing in mixed-LAN environments  Windows-based program makes it possible to set up in a few minutes.

  • Page 9: Product View

    Product View This section describes the externally visible features of the print server. Front View Rear View LAN Connector – plug your LAN cable to this connector. Parallel Printer Port connect the print server to a Printer Port Power Connector – plug the AC Power LEDs Adapter to this jack.
  • Page 10 * There are three green LED indicators on the rear panel: LEDs Steady light confirms that the Print Server is Power powered on. When it is blinking, the printer connected is printing. Link/Act Steady light confirms that the print server has a good connection to your network.

  • Page 11: Hardware Installation

    ARDWARE NSTALLATION Networking Application The following diagram explains the application of your print server. Network Print Server Solution...

  • Page 12: Installing The Print Server

    Installing the Print Server Follow these steps for a trouble-free start of print server operations with your pocket-sized Print Server. 1. Confirm proper operation of the printer to be connected to the print server. 2. When you have confirmed proper operation of the printer, turn off the power.

  • Page 13: Using The Utilities

    SING TILITIES This chapter describes the software utilities for the print server, including how to set up your print server with these utility. The PS- Utility is designed with a user-friendly interface that allows you to set up and administer the print server easily. Auto-Run Installation Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program, and the menu screen will appear as...
  • Page 14  Install Utility – click to install PS-Utility. Please refer to the next section for detailed information on installing the utility.  User's Guide – click to preview the User's Guide in PDF format for detailed information of the Print Server. ...

  • Page 15: Ps-Utility

    PS-Utility To avoid the conflict in your network, you can use PS-Utility to change the related settings of your print server (such as the IP address) after finishing the installation. Installing PS-Utility 1. Insert CD-ROM into CD-ROM drive. Click Install Utility > PS Utility.

  • Page 16: Using Ps-Utility

    5. When completed, click Finish. After installing the utility, the application program for the print server is automatically installed to your computer, and creates a folder in Start\Programs\TRENDnet. Using PS-Utility This section describes the operation of PS-Utility. To launch PS-...
  • Page 17 1. Click Start  Programs  TRENDnet, and then click the PS-Utility item. 2. The main screen will appear as below, and it starts to search the connected print server within the network. Your print server Component Features: 1. Device List: Display the connected print server within the network.
  • Page 18 2. Control Buttons Setup Wizard: Click this button to setup the configuration Update Firmware: Click this button to update the firmware of the selected print server. Factory Reset: Click this button to reload the factory settings of the print server. Change IP Address: Click this button to bring up the following dialog...

  • Page 19: Ps Wizard

    3. Information Field: Display the basic information of the selected print server in the Device List. 4. Status Bar: Display the system status. PS Wizard PS Wizard is a convenient utility that allows you to set up the print server’s port connection. Windows 7/Vista/2003 Server/2000 1) Insert the Installation CD-ROM into your computer’s CD- drive.
  • Page 21 2) Select the print server, select the desired port and then click Add Printer. 3) Click Select from manufacturer list. Select the appropriate driver for your printer and then click Next.
  • Page 22 4) Click Next. 5) Click Print Test Page. 6) Click OK.
  • Page 23 7) Click Finish. 8) Repeat steps 1 to 7 to add the printer to other computers on the network. Windows 98SE/ME 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive. Click PS Wizard and then click 98SE/ME from the Auto- Run menu screen.
  • Page 24 NOTE: For some specific printers, you may need to connect the printer to the computer and install the driver. In this case, connect it to the computer and install the driver first, and then connect it to the print server. 2.
  • Page 25 4. The configuration is completed, click Finish. 5. Click OK to reboot the computer. Your print server name Your printer port name Choose one connected printer port.
  • Page 26 After rebooting, PS Wizard will help you to complete the port connection automatically. You can start your printing task without any complex configuration.

  • Page 27: Web Configuration

    You can access and manage the Print Server through: 1) the enclosed software PS-Utility, and 2) a web browser. This chapter describes the second method – the Web Configuration Utility, and explains how to set up your print server with the web browser. Web Configuration Utility First, launch your web browser (such as the Internet Explorer 6.0 used in this manual).

  • Page 28: Home

    Home The Management Screen of the Configuration Utility The Home screen displays the basic information of the print server. As shown above, the System displays the status of your print server and network. Clicking Refresh will update the information.

  • Page 29: Setup Wizard

    Setup Wizard The “Setup Wizard” will hlep you to change all the configurations step by step. Please follow below steps to finish it System In this field, you can configure the basic information of your print server.
  • Page 30 Server Name: Assign a name to the print server. The default server name is set to PS (the prefix of print server) following by the last 6 digits of the Mac address. Port Name: Assign the Port Name for the print server Password: Enter the Administrator password (3-8 characters).

  • Page 31: Second Http Port

    Microsoft Network Enter the name of the Workgroup that you want the print server associated with in this field. Second HTTP Port This field allows settings to open a second port for the remote printing and IPP printing function. This will permit users to execute printing jobs through broadband IP router.

  • Page 32: Save To Print Server

    Save to Print Server Please double check all the configurations and click “Yes” to save the settings. The Setup Wizard has been completed.

  • Page 33: Change Ip Address

    Change IP Address This feature is helping you to change IP address only. If you have run the Setup Wizard already, you may skip this procedure. Please type in IP address that applies to your existing network (i.e. 192.168.X.X) Type in the Default Gateway (i.e. your router’s local IP address).

  • Page 34: Printer Information

    Printer Information “Printer Information” will display all printer information such as Manufacturer, Model Number, Command Set and Status.

  • Page 35: Factory Reset

    Factory Reset Please click Yes to restore the factory default setting.

  • Page 36: Firmware Upgrade

    Firmware Upgrade The firmware can be easily upgrade through “Firmware Upgrade” feature. Click Browse to get the firmware file, and then click Upgrade to flash firmware. The new firmware can be downloading from www.trendnet.com once it is available.

  • Page 37: About

    About This screen displays the information of the print server.

  • Page 38: Printing In Windows 98Se/Me

    RINTING IN INDOWS 98SE/ME The Print Server can provide print services to TCP/IP networks using the lpr/lpd network printing protocol. Most U systems are capable of supporting lpd, as is Windows 2000. This LPR for TCP/IP Printing client gives Windows 95/98/Me workstations the ability to print using the lpr/lpd printing protocol.

  • Page 39: Installing The Lpr For Tcp/Ip Printing Client

    Installing the LPR for TCP/IP Printing Client Before your Windows 98SE/Me workstation can print using the LPR protocol, you will need to install the client program, as follows: Make sure that you have installed the TCP/IP protocol, and have properly configured the Windows 98SE/Me TCP/IP settings. You can install the protocol from the Network control panel if necessary.
  • Page 40 Insert the Print Server installation CD in your computer’s CD- ROM, enter the proper pathname (for example , D:\ lpr), and click OK. Select the LPR for TCP/IP Printing client and click OK. Windows will copy the necessary files, and return to the Network dialog.

  • Page 41: Adding Lpr Printer Ports

    Adding LPR Printer Ports Once you have installed the client, and have enabled TCP/IP printing for the Print Servers, then you need to add a printer port for each printer you will be printing to using the lpr/lpd protocol. To add a printer port, From the Start menu, choose the Settings submenu, then the Control Panel item within it.
  • Page 42 Click the Add Port... button to add a new lpd-accessible printer port. Enter the IP address of the Print Server and the name of the printer port that you will be printing to, then press OK. Hint: You can get the Port name from the print server’s system information through web browser.

  • Page 43: Printing From Windows 98Se/Me

    Printing from Windows 98SE/ME After you have added the necessary printer ports, you can add a printer device for printing to the port. To enable printing to an lpr-accessible printer port from Windows 98E/ME, please do the following. From the Start menu, choose the Settings submenu, then the Printers item within it.
  • Page 44 Enter the name of the port, as displayed in the LPR for TCP/IP Printing Port List. Alternatively, you can click Browse... and locate the printer port. TCP/IP printing ports are located under the Entire Network icon, within the Print Servers - TCP/IP LPR icon.
  • Page 45 Press OK when you have located the proper printer port. Click Next > to continue to the next step. At this point Windows will ask you to choose the correct printer driver for the printer. Choose you printer’s make and model from the list, or use the driver disk included with the printer.

  • Page 46: Setting Tcp/Ip Printing Settings

    Setting TCP/IP Printing Settings The lpr client’s Properties dialog allows you to change several of the client’s settings. To change these settings, From the Start menu, choose the Settings submenu, then the Control Panel item within it. Windows will display the Control Panel folder.
  • Page 47 The parameters are as follows:  Communication Timeout Determines how long, in seconds, the system will wait before determining that it has lost connection with lpr/lpd print servers.  Retry Interval Determines how long, in seconds, the system will wait before retrying a lost connection. ...

  • Page 48: Printing In Windows 7/Vista/Xp/2000

    RINTING IN INDOWS 7/VISTA/XP/2000 Setting Up Windows 7/Vista TCP/IP Printing Following is the correct procedure for setting up TCP/IP LPR printing under Windows Vista. Click Start > Control Panel > Printers Click “Add a Printer” Click “Add a local printer”...
  • Page 50 Select Create a new port, select Standard TCP/IP Port and then click Next. Input the IP Address of the Print Server, and the Port name of the Port that will be printed to, then click “Next”. Hint: You can get the Port name from the print server’s system information through web browser.
  • Page 51 Select “Custom”, and click “Settings”. Select “LPR”, and put the Port name in the field labeled “Queue Name”. Then Click “OK”.
  • Page 52 Click “Next”. The Printer Install Wizard will now prompt for drivers. Select the correct Make and Model, or click “Have Disk”, to provide the Manufacturer’s Driver Disk. Click “Next”.
  • Page 53 Select a “Printer Name”. A Test Page can be printed to confirm proper configuration.

  • Page 54: Setting U P Windows Xp Tcp/Ip Printing

    Once a test page has been sent to your printer, click Close. Click Finish. Setting Up Windows XP TCP/IP Printing Following is the correct procedure for setting up TCP/IP LPR printing under Windows XP.
  • Page 55 Click Start > Printer and Faxes Double Click “Add a Printer” Click “Next”...
  • Page 56 Select “Local Printer” Create a new “Standard TCP/IP Port”...
  • Page 57 Click “Next” Input the IP Address of the Print Server, and the Port name of the Port that will be printed to, then click “Next”. Hint: You can get the Port name from the print server’s system information through web browser. Please refer page 21.
  • Page 58 Select “Custom”, and click “Settings”. Select “LPR”, and put the Port name in the field labeled “Queue Name”. Then Click “OK”.
  • Page 59 Click “Next”. Click “Finish”...
  • Page 60 The Printer Install Wizard will now prompt for drivers. Select the correct Make and Model, or click “Have Disk”, to provide the Manufacturer’s Driver Disk. Click “Next”. Select a “Printer Name”.
  • Page 61 A Test Page can be printed to confirm proper configuration. When testing page is done, click “finish” to complete the installation.

  • Page 62: Setting Up Windows 2000 Tcp/Ip Printing

    Setting Up Windows 2000 TCP/IP Printing Following is the correct procedure for setting up TCP/IP LPR printing under Windows 2000. Click Start > Settings > Printers. Double Click “Add Printer” Select “Local Printer”...
  • Page 63 Create a new “Standard TCP/IP Port” Click “Next”...
  • Page 64 Input the IP Address of the Print Server, and the Port name of the Port that will be printed to, then click “Next”. Hint: You can get the Port name from the print server’s system information through web browser. Please refer page 21. Select “Custom”, and click “Settings”.
  • Page 65 Select “LPR”, and put the Port name in the field labeled “Queue Name”. Then Click “OK”. Click “Next”.
  • Page 66 Click “Finish” The Printer Install Wizard will now prompt for drivers. Select the correct Brand and Model, or click “Have Disk”, to provide the Manufacturer’s Driver Disk.
  • Page 67 Click “Next”. Select a “Printer Name”.
  • Page 68 Sharing can be enabled here. Also, a Test Page can be printed to confirm proper configuration.
  • Page 69 When the Test Page has been printed, click “Finish” to complete the installation.

  • Page 70: Printing In Mac Os

    RINTING IN NOTE: Mac OS printing is supported by Postscript printers only! Below instruction is for your reference only. The actually screenshots and port names will differ depending on the print server. Below is the port name for each print server: TE100-P1P/TEW-P1PG =>...
  • Page 71 Select Ethernet Connection on the left menu bar, it will display your computer status.

  • Page 72: Adding A Printer

    Adding a Printer Click this icon in your Dock to open your System Preferences window as below. Click the Print & Fax icon in System Preferences menu to view the menu below. Click the add button “+” to add a new printer.
  • Page 73 Mac OS X Snow Leopard (10.6) supports five printing protocols: 1. Bonjour 2. Internet Printing Protocol (IPP) 3. Line Printer Daemon (LPD) 4. HP Jetdirect – Socket To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click the button and follow the instructions to add an IP Printer beginning on “Adding an IP printer”...
  • Page 74 Select to determine what printer configuration to use. This may also be manually selected in the Print Using drop-down menu by brand and model. Click the Add button to exit the window and implement the new setting. The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions.

  • Page 75: Adding An Ip Printer

    Adding an IP Printer To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click the button. Select the desired printing protocol from the Protocol drop- down menu.
  • Page 76 Type the IP Address of the printer, the name will appear in the Name field when the printer is found. This window will indicate that it is verifying the address. If the printer is found, this window will state “Valid and complete address” under the Address field. The printer utility is able to detect the printer and may automatically select the correct printer driver in the Print Using field.
  • Page 77 For set up LPD Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. 2. Type the port name in Queue field. Click Add button after done the section of printer model in the Print Using drop-down menu.
  • Page 78 Click Add button after done the section of printer model in the Print Using drop-down menu. For set up Socket Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. After that, type “: 9100” for port 1, “: 9101”...
  • Page 79 Click Add button after done the section of printer model in the Print Using drop-down menu. The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use.

  • Page 80: Mac 10.5 Leopard User

    MAC 10.5 LEOPARD USER NOTE: Mac OS printing is supported by Postscript printers only! With Mac OS X Leopard (10.5), you can use Apple Talk, Bonjour, Internet Printing Protocol (IPP), Line Printer Daemon (LPD), and HP Jetdirect - Socket printing through Print Server. Click this icon in your Dock to open your System Preferences, then click Network icon...
  • Page 81 Click the Advanced button and then the AppleTalk tab as show below. Select the Make AppleTalk Active option, then click OK and the Apply button. AppleTalk is now active on the system. Now a printer can be added.
  • Page 82 Adding a Printer Click this icon in your Dock to open your System Preferences, click Print & Fax icon. The following screen will appear. Click the add button “+” to add a new printer. Mac OS X Leopard (10.5) supports five printing protocols: 1.
  • Page 83 2. Bonjour 3. Internet Printing Protocol (IPP) 4. Line Printer Daemon (LPD) 5. HP Jetdirect – Socket To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click the button and follow the instructions to add an IP Printer beginning on “Adding an IP printer”...
  • Page 84 Server’s web manager. In the example here, the printer name is PS- 116688-P3. By default the Printer Using will use Auto Select to determine what printer configuration to use. This may also be manually selected in the Print Using drop-down menu by brand and model.
  • Page 85 Adding an IP Printer To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click the button. Select the desired printing protocol from the Protocol drop-down menu.
  • Page 86 Type the IP Address of the printer, the name will appear in the Name field when the printer is found. This window will indicate that it is verifying the address. If the printer is found, this window will state “Valid and complete address” under the Address field. The printer utility is able to detect the printer and may automatically select the correct printer driver in the Print Using field.
  • Page 87 2. Type the port name in Queue field. Click Add button after done the section of printer model in the Print Using drop-down menu. For set up IPP Printing: 1. Enter the IP address of the print server in Address field. After that, enable print server’s second port, and type “: second port”...
  • Page 88 Click Add button after done the section of printer model in the Print Using drop-down menu. For set up Socket Printing: 1. Enter the IP address of the print server in Address field. After that, type “: 9100” for port 1, “: 9101” for port 2 or “: 9102” for port 3.
  • Page 89 Click Add button after done the section of printer model in the Print Using drop-down menu. The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use.

  • Page 90: Mac Os 10.4 Tiger User

    MAC OS 10.4 TIGER USER NOTE: Mac OS printing is supported by Postscript printers only! With Mac OS X Tiger (10.4), you can use Apple Talk, Bonjour, Internet Printing Protocol (IPP), Line Printer Daemon (LPD), and HP Jet Direct-Socket printing through Print Server. Click this icon in your Dock to open your System Preferences window as below.
  • Page 91 Click the Network icon in System Preferences menu to view the menu below. Select the Apple Talk tab in the Network menu. Check to select the Make Apple TalkActive option. Click the Apply Now button and close the menu. Apple Talk is now active on the system. Now a printer can be added.
  • Page 92 Adding a Printer Use the Go menu at the top tool bar and select Applications option and find the Utilities folder or open the Utilities folder directly in Go menu. In the Utilities folder, find and select open Printer List window. If no printer has been set up on your...
  • Page 93 Macintosh, you will be prompted to add a printer. Click Add button on the pop-up dialogue box to open Printer Browser window. Mac OS X Tiger (10.4) supports five printing protocols: 1. AppleTalk 2. Bonjour 3. Internet Printing Protocol (IPP) 4.
  • Page 94 AppleTalk-enabled or Bonjour-enabled Printers To add an AppleTalk-enabled or Bonjour-enabled printer, click the button in the Printer Browser menu. Select the printer model from Printer Name list and Connection type in the Printer Browser menu. The printer name selected should be the same as that appearing listed in the Printer Server’s web manager.
  • Page 95 The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quit the Printer List and start printing.
  • Page 96 Adding an IP Printer To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click the IP Printer button in the Printer Browser window. Select the desired printing protocol from the Protocol drop-down menu. Type the IP Address of the printer, the name will appear in the Name field when the printer is found.
  • Page 97 Printing Protocol (IPP), Line Printer Daemon (LPD), and HP Jet Direct – Socket) are basically the same. Illustrated examples are include below for the sake of reference. For set up LPD Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field.
  • Page 98 Click Add button after done the section of printer model in the Print Using drop-down menu. For set up Socket Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. After that, type “: 9100” for port 1, “: 9101”...
  • Page 99 Click Add button after done the section of printer model in the Print Using drop-down menu. When the Installable Options pop-up window shows up as below, click Continue button.
  • Page 100 The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quit the Printer Setup Utility and start printing.

  • Page 101: Mac Os 10.3 Panther User

    MAC OS 10.3 PANTHER USER NOTE: Mac OS printing is supported by Postscript printers only! With Mac OS X Panther (10.3), you can use Apple Talk, Line Printer Daemon (LPD), and Rendezvous, printing through Print Server. Click this icon in your Dock to open your System Preferences window as below.
  • Page 102 Select the Apple Talk tab in the Built-in Ethernet menu. Check to select the Make AppleTalk Active option. Click the Apply Now button and close the menu. Apple Talk is now active on the system. Now a printer can be added. Adding a Printer: Use the Go menu at the top tool bar and select Applications option and find the Utilities folder or open the Utilities folder directly in Go...
  • Page 103 In the Utilities folder, find and select Printer Setup Utility to open Printer List window. If no printer has been set up on your Macintosh, you will be prompted to add a printer. Click Add button on the pop-up dialogue box to open the window below.
  • Page 104 Mac OS X Panther (10.3) supports three printing protocols: 1. AppleTalk 2. Rendezvous 3. Line Printer Daemon (LPD) To add an LPD enabled printer, click IP Printing in the drop-down menu and follow the instructions to add an IP Printer beginning on “Adding an IP printer”...
  • Page 105 Select a printer name from the Name list. The printer name selected should be the same as that appearing listed in the Printer Server’s web manager. In the example here, the printer name is PS-1168-U1. By default the Printer Model will use the Auto Select to determine what printer configuration to use.
  • Page 106 The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Adding an IP Printer To add an LPD enabled printer, click IP Printing in the drop-down menu in the Printer List window.
  • Page 107 After selecting IP Printing, a window displays as follows: Set up LPD Printing: 1. Enter the IP address of the print server to which the printer is attached in the Printer Address field. 2. Type the port name in Queue field. 3.

  • Page 108: Rendezvous Uses In Mac Os 10.2

    drop-down menu if the model is not listed. To implement the setting, click Add button. Rendezvous Uses in MAC OS 10.2 The latest version of MAC OS provides a new feature that is called Rendezvous. Rendezvous is a revolutionary networking technology standard that lets you create an instant network of computers and devices, which can be used throughout Mac OS 10.2 to provide innovative ways to share files and printers and...
  • Page 109 1. Launch Print Center. Press and hold the Option key, click the Add button. 2. Select Rendezvous from the pop-up menu. 3. When clicking the Rendezvous item, the following window appears to display the connected Rendezvous-enabled printers. Connected printer(s)
  • Page 110 4. Select the desired printer, and the following pop-up menu displays the printer’s manufacturer. Select Generic. 5. The printer is installed into the system successfully.

  • Page 111: Limited Warranty

    TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
  • Page 112 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
