SP220V2/-E/-F

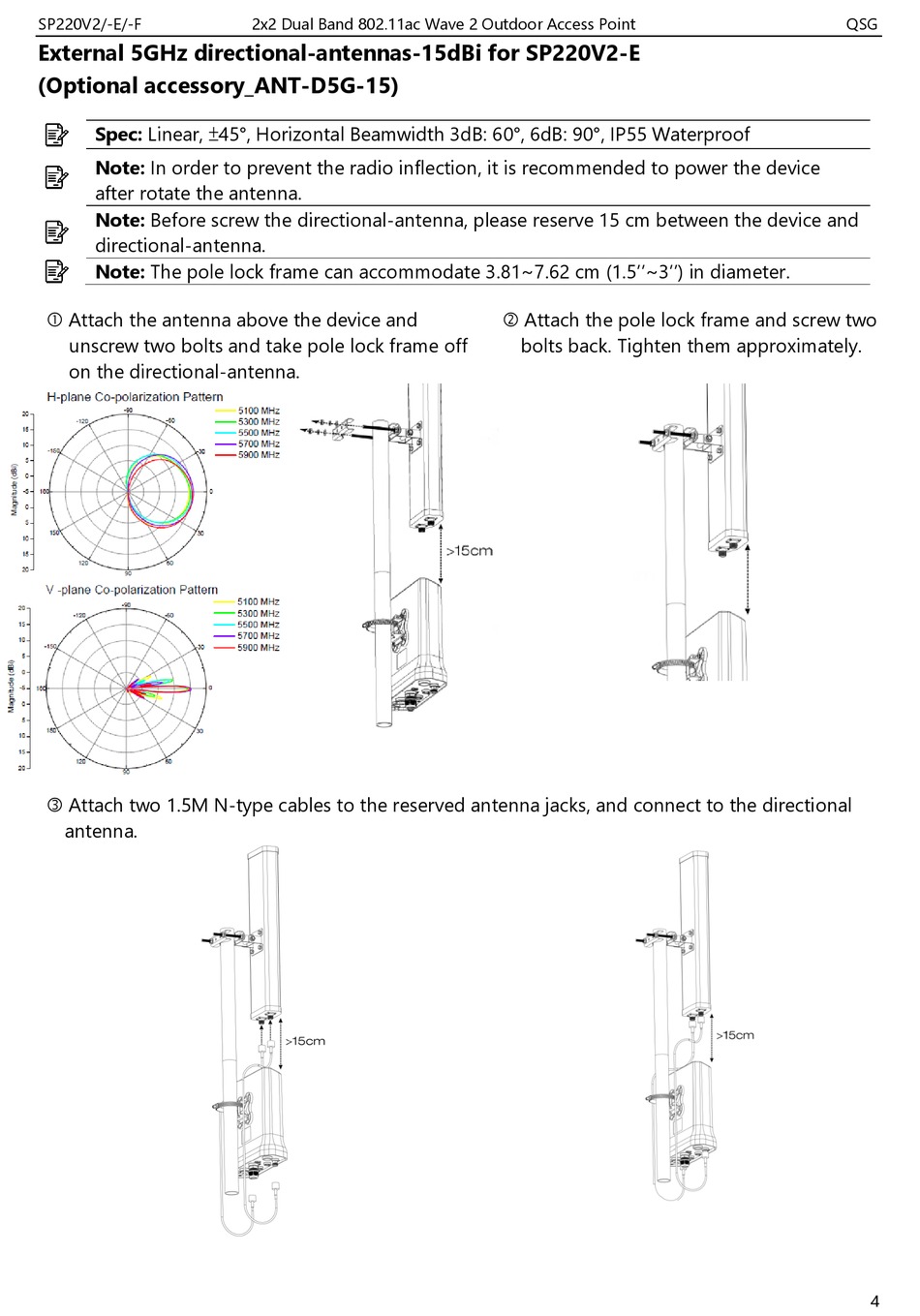

External 5GHz directional-antennas-15dBi for SP220V2-E
(Optional accessory_ANT-D5G-15)
Spec: Linear, ±45°, Horizontal Beamwidth 3dB: 60°, 6dB: 90°, IP55 Waterproof
Note: In order to prevent the radio inflection, it is recommended to power the device
after rotate the antenna.
Note: Before screw the directional-antenna, please reserve 15 cm between the device and
directional-antenna.
Note: The pole lock frame can accommodate 3.81~7.62 cm (1.5''~3'') in diameter.
Attach the antenna above the device and
unscrew two bolts and take pole lock frame off
on the directional-antenna.
Attach two 1.5M N-type cables to the reserved antenna jacks, and connect to the directional
antenna.
2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point
Attach the pole lock frame and screw two
bolts back. Tighten them approximately.
QSG
4
