SP220V2/-E/-F

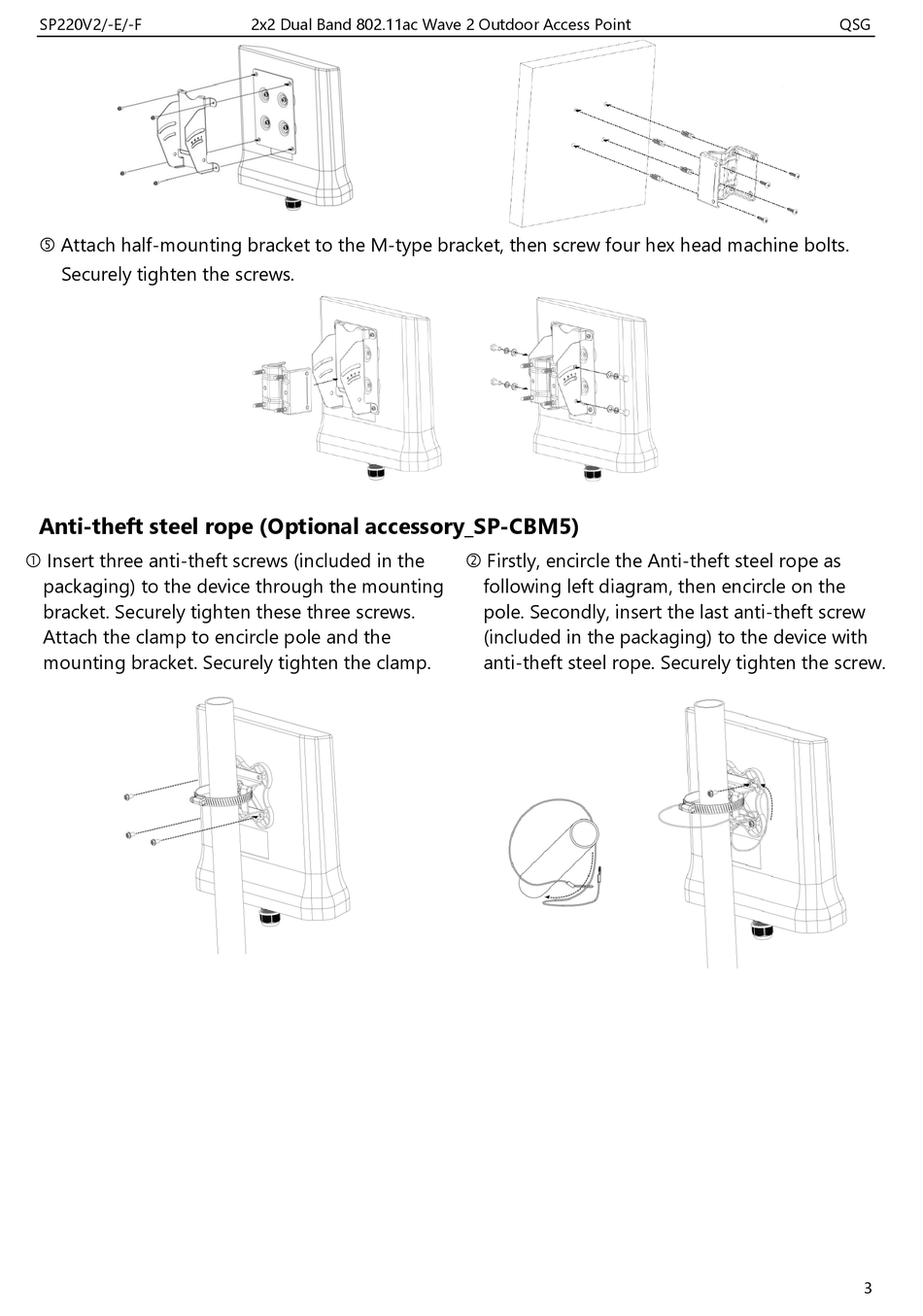

 Attach half-mounting bracket to the M-type bracket, then screw four hex head machine bolts.
Securely tighten the screws.
Anti-theft steel rope (Optional accessory_SP-CBM5)
 Insert three anti-theft screws (included in the
packaging) to the device through the mounting
bracket. Securely tighten these three screws.
Attach the clamp to encircle pole and the
mounting bracket. Securely tighten the clamp.
2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point
 Firstly, encircle the Anti-theft steel rope as
following left diagram, then encircle on the
pole. Secondly, insert the last anti-theft screw
(included in the packaging) to the device with
anti-theft steel rope. Securely tighten the screw.
QSG
3
