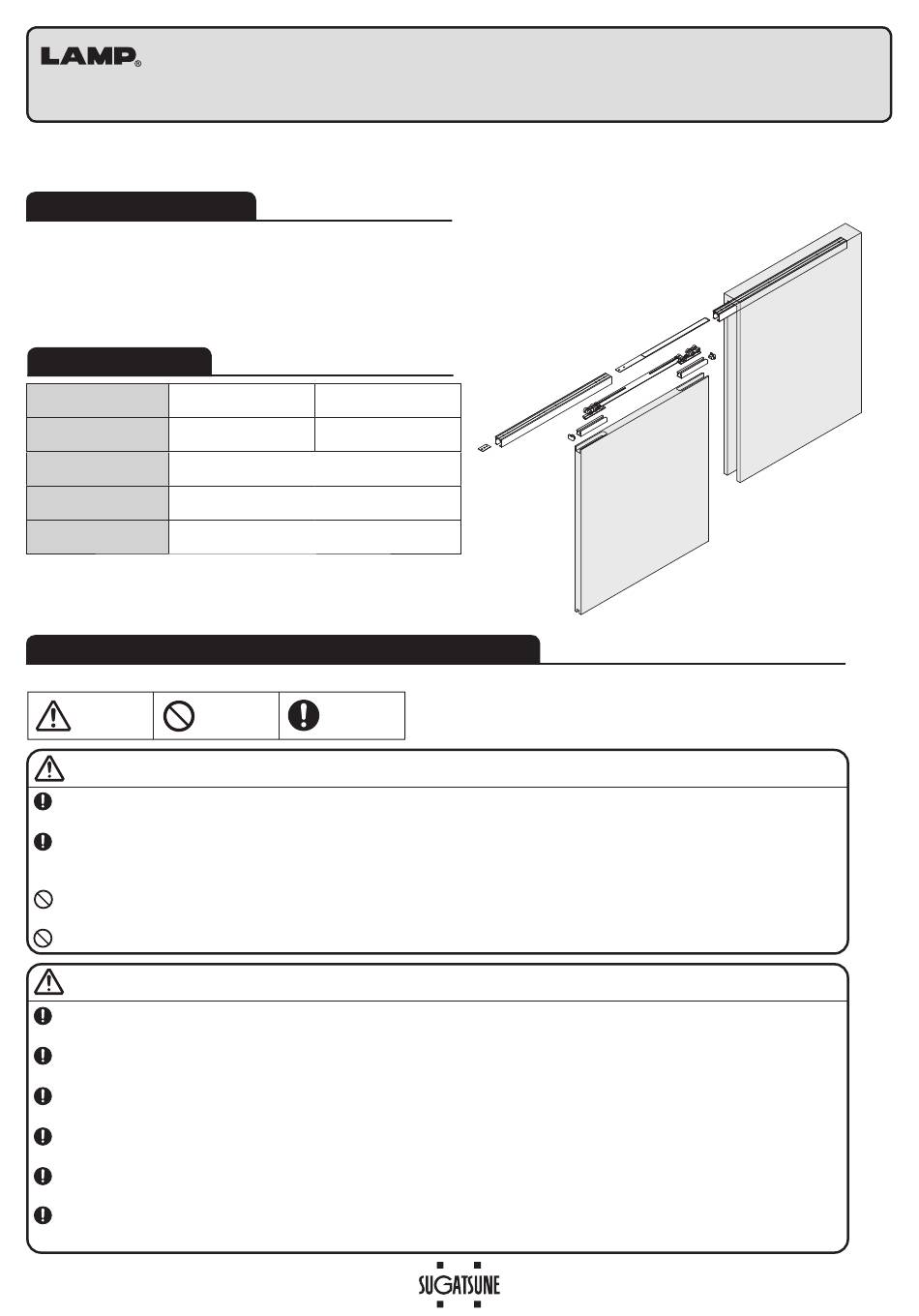

SUGATSUNE LAMP FD80-H Installation Manual

FD80-H HEAVY DUTY SLIDING DOOR SYSTEM Installation Manual
(Ceiling Mount Type for Pocket Door, with Two-way Soft Close)
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
T his is a parts set for a sliding door system for stores,
●
public facilities and residence.
B uilt in soft closer enables two-way soft closing movement
●
for both direction.
T he track can be divided for easy maintenance after
●
installing.
SPECIFICATIONS
Door height
Door width
Min. Door thickness
Max. Door weight
Height adjustable range
・ T he closing speed of the soft closing type door may change due
to ambient temperature, operating method or installation quality.
・ R ecommended ambient temperature range is 5 to 40 ℃ .
FOR YOUR SAFE WORK AND CORRECT
Meaning of symbols
Warning
Caution
Warning :
If these warnings are not followed, it may result in death or serious injury.
This (sliding door system) should be installed by a qualified person. If the system is not installed correctly, the door will not
operate smoothly, and may cause injury.
It is necessary to manufacture the frame with sufficient strength so that it endures the weight of the door and any impact
upon opening/closing the door. Only use designated screws and ensure that they are fastened firmly. A frame with poor
strength or loose screws might result in the door falling and causing injury
Do not try to use this product for anything other than its original purpose. Do not use any part for applications outside of its
specification.
Do not disassemble nor modify any parts other than those described in this document.
Caution :
If these cautions are not followed, it may result in injury or damage.
Make sure to follow the designated dimensions, specifications, and horizontal/vertical angles. Make sure that the frame is
not warped, since it may affect the movement of the door.
If cutting any parts, make sure to remove any burrs before installation. Also check the upper track for any left-over burrs or
scraps and remove these.
This product is a part for architectural fittings. After installation, make sure to test the finished product thoroughly to ensure
that it is well-functioning and safe.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time
every year is recommended).
When installing the "pocket door" specification, make the "easy-maintenance" structure.
For example, use a removable panel.
We recommend that the installation is carried out by two people, in order to ensure proper installation and avoid
unnecessary stress on the parts.
Max. 2500 mm 2501 – 2700 mm
784 – 1500 mm 850 – 1500 mm
34 mm
80 kg/door
1 mm upward, 4 mm downward
Prohibited Required
INSTALLATION
Part No.FD80DHCHP-PD
Door pocket
Door
