SUGATSUNE MonoFlat LIN-X hinge Instruction Manual

Thank you for purchasing this MonoFlat LIN-X hinge by SUGATSUNE. Before proceeding with the installation,
please read this instruction manual carefully for the best possible result and ensure your safety.

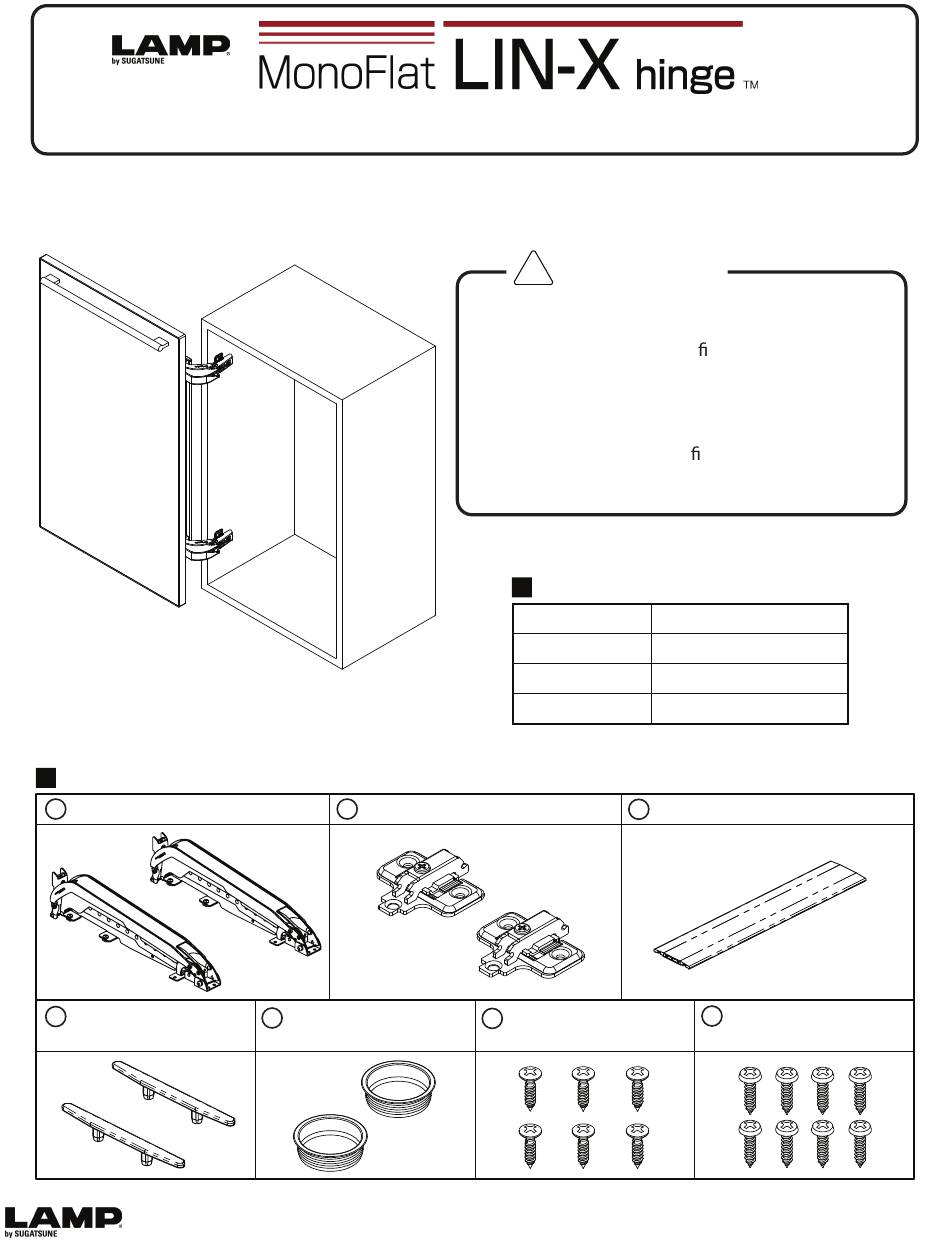

Parts List

1 LIN-X Body.....2 pcs.
4
Connecting Plate Cover
2 pcs.
MonoFlat LIN-X 600 Instruction Manual
2 Mounting Plate.....2 pcs.
5 Cup Cover.....2 pcs.
！
WARNING
●
Failure to observe the following precautions
may result in injury and/or lead to damage to
surrounding cabinets or ttings.
●
Choose suitable screws to ensure proper
installation of the cabinet and door.
●
Ensure that door size, weight and material
correspond to the speci cations in this manual.
●
Do not disassemble or modify the system.
Product Specification
Door Width
Door Height
Door Thickness
Door Weight
3
L=540mm
6 Countersunk Head Tapping
Screw.....3.5x15.....6 pcs.
1
PAT.P
550~650 mm
600~900 mm
15~24 mm
Max. 9 kg (per door)
Connecting Plate.....1 pc.
7 Binding & Tapping Screw
3.5x15.....8 pcs.
