SUGATSUNE VT-DF-A 1820 Installation Manual

Advertisement

Quick Links

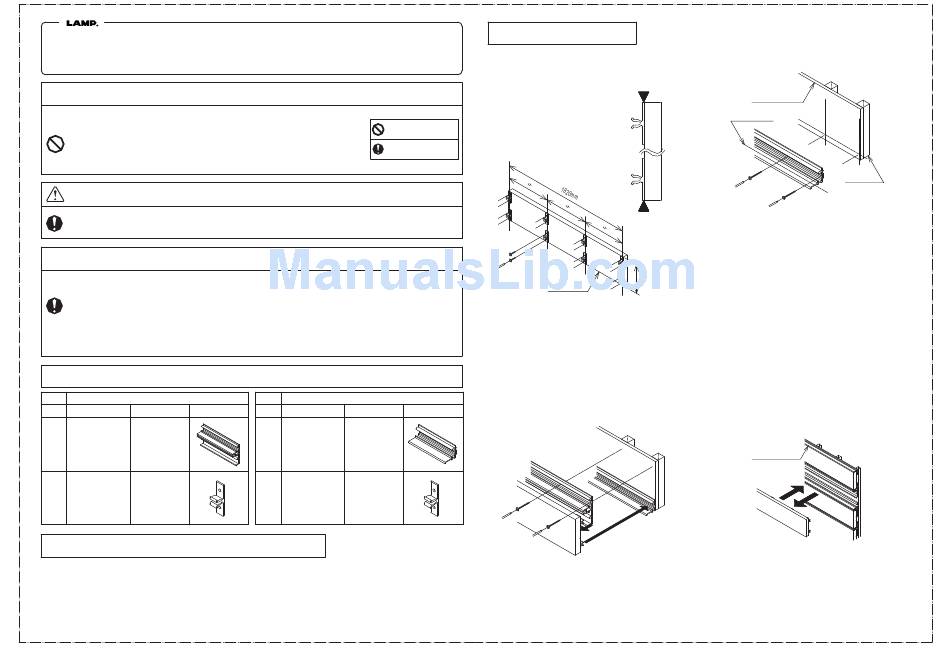

Slotted Panel Bracket VT-DF-A 1820
Level Adjustable Shelving System:
Top/Bottom Bracket VT-DF-E 1820
Before the installation, read this manual thoroughly for proper fitting.
・As this product is for indoor use, do not use it outdoors or in the place splashed with water.
・Ensure sufficient heat insulation when fixing it directly to columns, etc. so that the bracket will not
 suffer from heat bridge or due condensation.
・The use in high temperature/humidity environment is not allowed.
・Check that the installation of the bracket makes it level or plumb and that twisting does not occur.
Safety notice.
<Be sure to observe the following instructions to prevent injury or accident.>
・Use nonslip gloves when carrying the parts. Be careful to secure enough ventilation when using adhesives.
・Before the delivery, the installation supervisor should check the installation result without fail and repair problems if any.
Checking before the installation
・Check that the wall on which the brackets for shelves are fixed is strong enough.
 ※ If not, be sure to provide reinforcing material. Otherwise the brackets may fall off.
・Check the quantity of the parts and if any flaws or dents exist.
 Our company will not be held responsible for the flaws or dents caused after the installation.
・Check the wall finish to which the Slotted Panel Bracket is fitted (check that it is plumb and even) .
・Be sure to provide marking before installation.
Check the Package Contents  
Slotted Panel Bracket VT-DF-A 1820
Shape
NO.
Name
Q'ty contained
Slotted Panel
Bracket
A
1
VT-DF-A 1820
L=1820
Panel Catch
(Panel fixing parts)
B
8
VT-DF-C20
Tools and screws necessary for the installation.
※Necessary screws shall be prepared by customer.
○Electric drill, level, driver.
Bracket fixing screws (Tapping screws of 4 x 50; five pieces. per bracket).
Catch fixing screws (pan-head, truss or bind tapping screws of nominal approx. 4 x 20; 16 pieces per panel).
Installation Manual
This symbol represents
the "Prohibited matters".
This symbol represents
the "Mandatory matters"
to be performed without fail.
Top/Bottom Bracket VT-DF-E1820
Shape
NO.
Name
Q'ty contained
Top/Bottom
Bracket
A
1
VT-DF-E1820
L=1820
Panel Catch
(Panel fixing parts)
B
8
VT-DF-C20
Installing the bracket   
1. Fitting catches
※Place the panel on the ends of catches.
Min.105mm
20mmpanel
Max.450mm
Fit the catches (VT-DF-C20) to the t20 panel prepared
by the customer with fixing screws according to the illustration
after checking the fitting position.
Fit the catches to the necessary number of panels
in the same manner as above.
3. Fitting the panel and the bracket
Fix VT-DF-A1820 to the upper catch of the panel as shown
in the illustration.
Fix the panel to the bottom brackets with the lower catch of the panel.
Fix A1820 with pilot holes to the wall with bracket fixing screws.
For VT-DS-A1820, five fixing points or so shall be required.
2. Marking of the position to fit the bracket
Finishing material
Reference line
Substrate
(stud, etc.)
Mark with level, etc. the position to fit the shelf bracket,
assuming the height of the horizontal line of the upper surface
of the top/bottom bracket as the reference.
Check that there is no unevenness on the wall surface
on which the bracket is installed.
Without finishing material on the substrates, they will look bad
when the panel is removed.
Therefore applying finishing material is recommended.
After checking the position to fit the top/bottom bracket,
drill pilot holes. Then fix the bracket with bracket fixing screws
according to the illustration.
For VT-DS-E1820, five fixing points or so shall be required.
4. Illustration of the panel
and bracket installed
Top Bracket
※Fit necessary number of panels and A1820s one after
after another in the same manner as above.
Use top bracket for the top panel.
Check that the brackets and panels are level and plumb
and that there is neither unevenness nor gap.
Check that panels can be fixed and removed.
