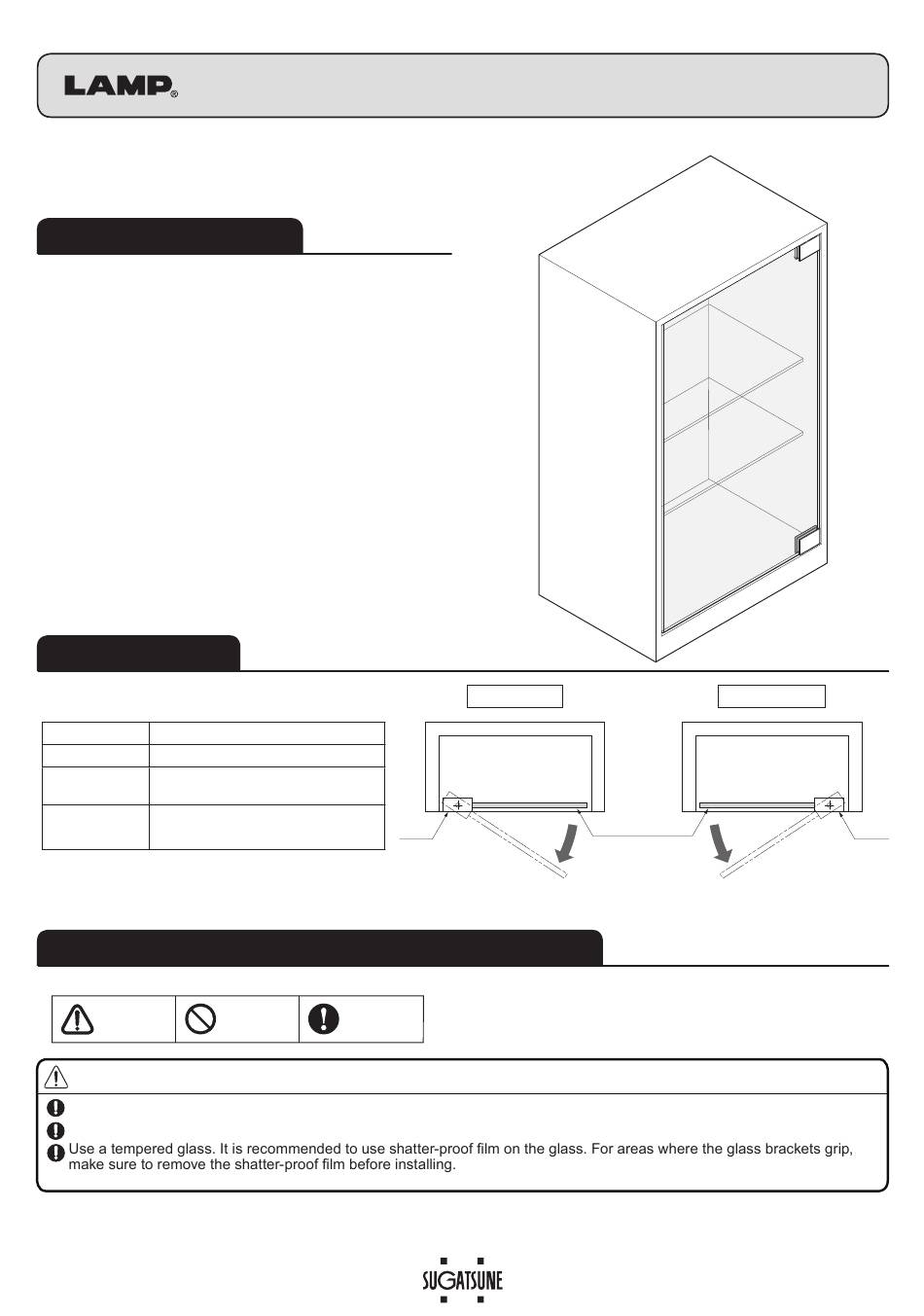

SUGATSUNE LAMP GS-GH50 Installation Manual

Glass pivot hinge

Advertisement

Quick Links


GS-GH50
Thank you for selecting our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.

ABOUT THE PRODUCT

● Pivot hinge for glass show case.
● Door can be mounted with assembled hinges.
● Horizontal and vertical door position is adjustable at
mounted status.
● Hinges and locks with same design concept.

SPECIFICATIONS

Glass width
Glass height
Glass
8、10、12、12.7 mm
thickness
Door weight

FOR YOUR SAFETY AND CORRECT INSTALLATION

Meaning of symbols
Warning
Caution
Caution
If not followed, injury or damage may result.
       Apply door stoppers to protect the hinges and glass door when closing.
Prepare a cabinet which can endure the weight of the door.
Glass Pivot Hinge
Max. 900 mm
Max. 2500 mm
490N / set
(50 kgf / set)
Prohibited
Required
Left opening
Hinge

Right opening
Glass door
Hinge
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAMP GS-GH50 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUGATSUNE LAMP GS-GH50

  • Page 1   Glass Pivot Hinge Installation Manual GS-GH50    Thank you for selecting our product. Before installation, please read this manual thoroughly to ensure correct installation. Please keep this manual at hand for future reference. ABOUT THE PRODUCT ● Pivot hinge for glass show case. ● Door can be mounted with assembled hinges.
  • Page 2 INSTALLATION DRAWING (EXAMPLE) Caution Place a door stopper to prevent the glass door from being damaged when the door is over rotated inward. Left opening Right opening Hinge B Hinge A Top pivot Top pivot To be adjusted To be adjusted within 5- 10 within 5- 10 Min.
  • Page 3 COMPONENT PARTS (PER BOX) Hinge B Hex key 5:1 pc (provided)  Screw A:2 pcs Screw B:6 pcs Gasket A(No stamp) Countersunk head screw Countersunk head Gasket B( 8-10 Stamped) M5×10 tapping screw 5×30 Top pivot Hex key with ball point pc (provided)  3:1 Gasket A (12,12.7 mm glass)...
  • Page 4 SUGATSUNE AMERICA, INC          Tokyo, JAPAN Shanghai, CHINA California, USA Phone: +81 (0)3 3866 2260 E-mail:export@sugatsune.co.jp Phone: +86 21 3632 1858  E-mail:lamp@sugatsune.com.cn Phone: +1 310 329 6373 E-mail:sales@sugatsune.com SUGATSUNE KOGYO (UK) LTD Guangzhou, CHINA Chicago, USA          Reading, UK Phone: +86 20 6639 3552  E-mail:lamp@sugatsune.com.cn...
