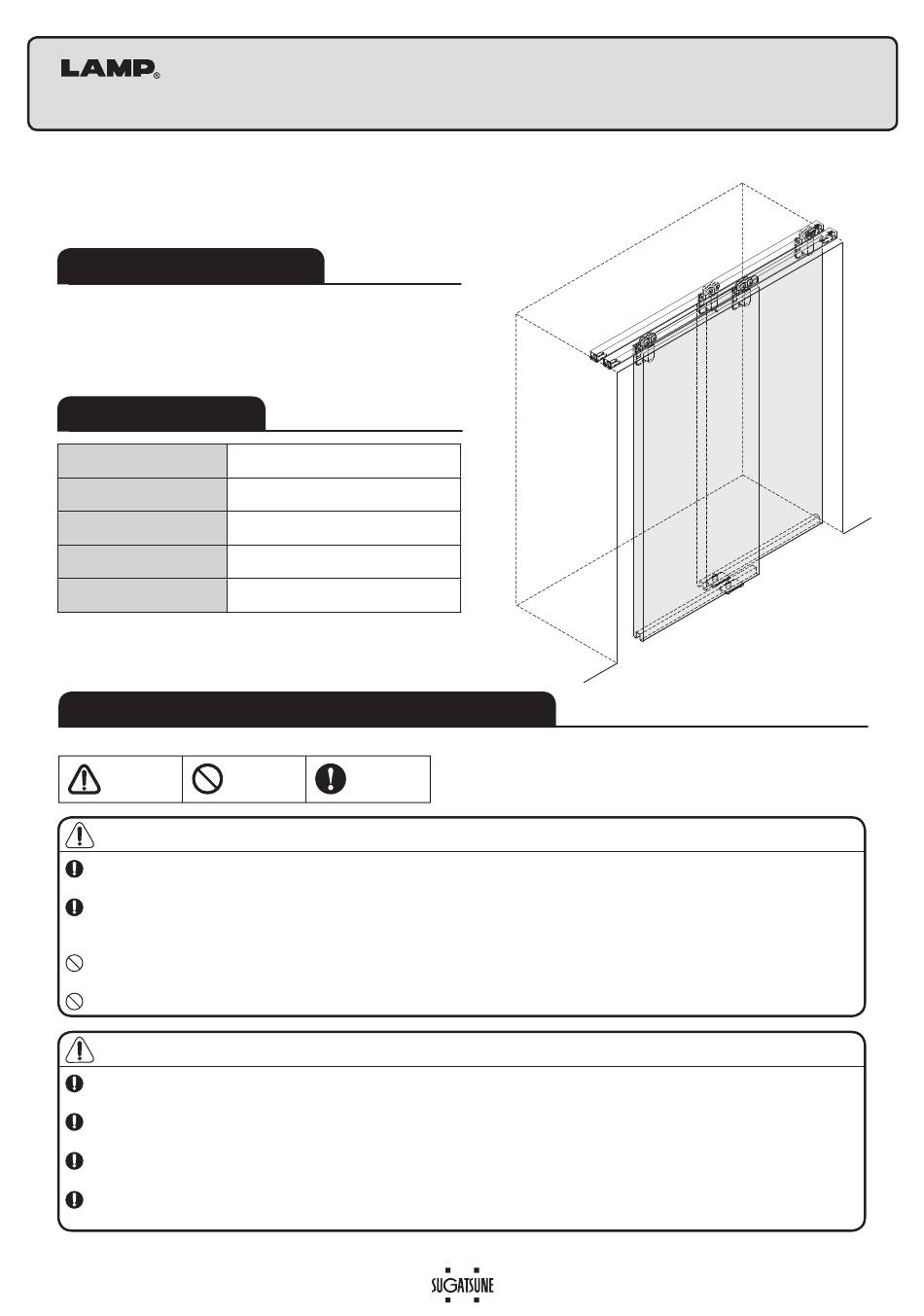

FD30-H SLIDING DOOR SYSTEM Installation Manual
(Side-Mount Roller Standard Sliding)
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
This product is parts set for sliding door system for indoor use.
●
●
Easy door installation and adjustment.
SPECIFICATIONS
Max.Door width
Max.Door height
Min.Door thickness
Max.Door weight
Height adjustable range
FOR YOUR SAFETY WORK AND OPERATION
Meaning of symbols
Warning
Prohibited
Caution
WARNING:
If these warnings are not followed, it may result in death or serious injury.
This (sliding door system) should be installed by an experienced person who has correct knowledge. If the system is not
installed correctly, the door will not operate smoothly, and or may cause injury.
It is necessary to manufacture the frame with sufficient strength so it endures the weight of the door and impact shocks
upon opening/closing the door. A frame with poor strength might result in improper and slower movement of the door. In the
worst case, the door might drop down and cause injury.
Do not try to use this product for any other purposes other than originally intended for. Do not use the parts for applications
that are out of specification.
Do not disassemble nor modify any parts than those described in this document.
Caution:
If these cautions are not followed, it may result in injury or damage.
Make sure to follow the designated measurements and specifications as well as horizontal and verticals angles. Make sure
that the frame is not warped, since it may affect the movement of the door.
If cutting any parts, make sure to remove any burr before installation. Also check the upper track for any left-over burr or
scrap and remove these.
This sliding door system is a part for architectual fittings. After installation, make sure to test the finished product thoroughly
to ensure that it is well-functioning and safe.
Make sure to test the screws for slack at regular intervals (one month from first usage, half year and then one time every
year is recommended).
1000 mm
2400 mm
28 mm
30 kg / door
± 4 mm
Required
Part No.FD30HUP
1
