Installation Manual
ALT-ST15-D10
POCKET DOOR SYSTEM (OVERLAY) SOFT CLOSING
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.

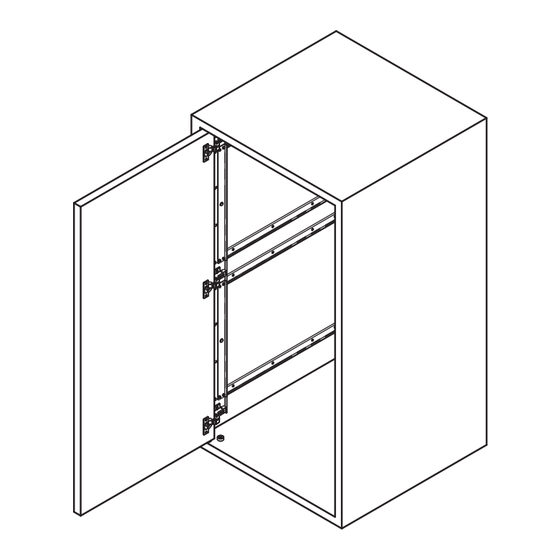

ABOUT THE PRODUCT
●
This product is hardware for vertical pocket doors in furniture,
enabling slow door closing.
●
The door is stored inside the cabinet.
●
The door incline can be easily adjusted via a 5-stage angle
retention mechanism.
Item Name Guide
ALT - ST15 - D10S - 16
SPECIFICATION
Type
Rail Q'ty
Door Width
Door Height
Door Thickness
Door Weight
1
www.sugatsune.com
www.sugatsune.com
Type
Size of rail
S
2
500 - 700
［19-11/16" - 27-9/16"］
Max. 9 kg [19.8 lbs]
M
2
Max.600[24"]
700 - 900
［27-9/16" - 35-7/16"］
18 - 20 ［ 23/32" - 25/32"］
Max. 9 kg [19.8 lbs]
L
4
900 - 1200
［35-7/16" - 47-1/4"］
Max. 15 kg ［ 33 lbs］
(800) 562-5267
(800) 562-5267
LL
4
1200 - 1600
［47-1/4" - 63"］
Max. 15 kg ［ 33 lbs］
Advertisement
Related Manuals for SUGATSUNE ALT-ST15-D10 Series
Summary of Contents for SUGATSUNE ALT-ST15-D10 Series
- Page 1 ［47-1/4" - 63"］ 18 - 20 ［ 23/32" - 25/32"］ Door Thickness Max. 15 kg ［ 33 lbs］ Max. 15 kg ［ 33 lbs］ Door Weight Max. 9 kg [19.8 lbs] Max. 9 kg [19.8 lbs] www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
- Page 2 Do not cut rails. Rail sizes (inches) include 16, 19, 22, 24, and 28. This catch holds the door at the pulled-out position. Be sure to mount it on the uppermost and lower slide rails (For details, see P.4 www.sugatsune.com (800) 562-5267...
- Page 3 Item Name Installation Position Note: Slider should always be installed towards front of the cabinet. ALT - 2V5BR1 For Lower Right and Upper Left ALT - 2V5BR2 For Upper Right and Lower Left Bottom board www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
- Page 4 ⑯ Bind head tapping screw 3.5×15 Caution Positioned to not interfere with slides. Mount the protector at the top and bottom edges of the cabinet. ❷ Temporarily fix front and back sides for all other slides. ⑨ ⑧ www.sugatsune.com (800) 562-5267...
- Page 5 Center of Cabinet Rail Placement Rail Placement L Type LL Type (4 slide rails) (4 slide rails) 13 ［ 1/2" ］ Cabinet 13 ［ 1/2" ］ Opening Cabinet Opening Center of Cabinet Center of Cabinet www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
- Page 6 Move the connecting plate from Tighten the part (both ends) the front to the back, adjusting all the screw positions so that Fasten all the parts (near centre) it moves smoothly Screws: ⑯ Bind head tapping screw 3.5×15 www.sugatsune.com (800) 562-5267...
- Page 7 Hinge Placement (3 Hinges) LL Type 34 ［ 1-11/32" ］ 34 ［ 1-11/32" ］ φ40 ［ 1-9/16" ] Depth:13[1/2" ] φ40 ［ 1-9/16" ] Depth:13[1/2" ] Center of Door Height Center of Door Height www.sugatsune.com www.sugatsune.com (800) 562-5267 (800) 562-5267...
-
Page 8: How To Remove
*When there are adjustment bolts at top and bottom, align their positions. Back Light door Heavy door Before adjustment After adjustment ② Connecting plate ② Connecting plate Tighten all the screws once the door is in the desired position. ⑫ Adjustment bolt www.sugatsune.com (800) 562-5267... - Page 9 > <1> Depth adjustment screw <3> Horizontal adjustment screw Closing speed adjustment (3 stages) ⑥ Damper unit Slow Fast SUGATSUNE KOGYO CO., LTD. SUGATSUNE AMERICA, INC. SUGATSUNE SHANGHAI CO., LTD. SUGATSUNE KOGYO INDIA California, USA PRIVATE LIMITED Tokyo, JAPAN Shanghai, CHINA...
