INSYS GPRS 5.1 serial
13.1

Serial Interface

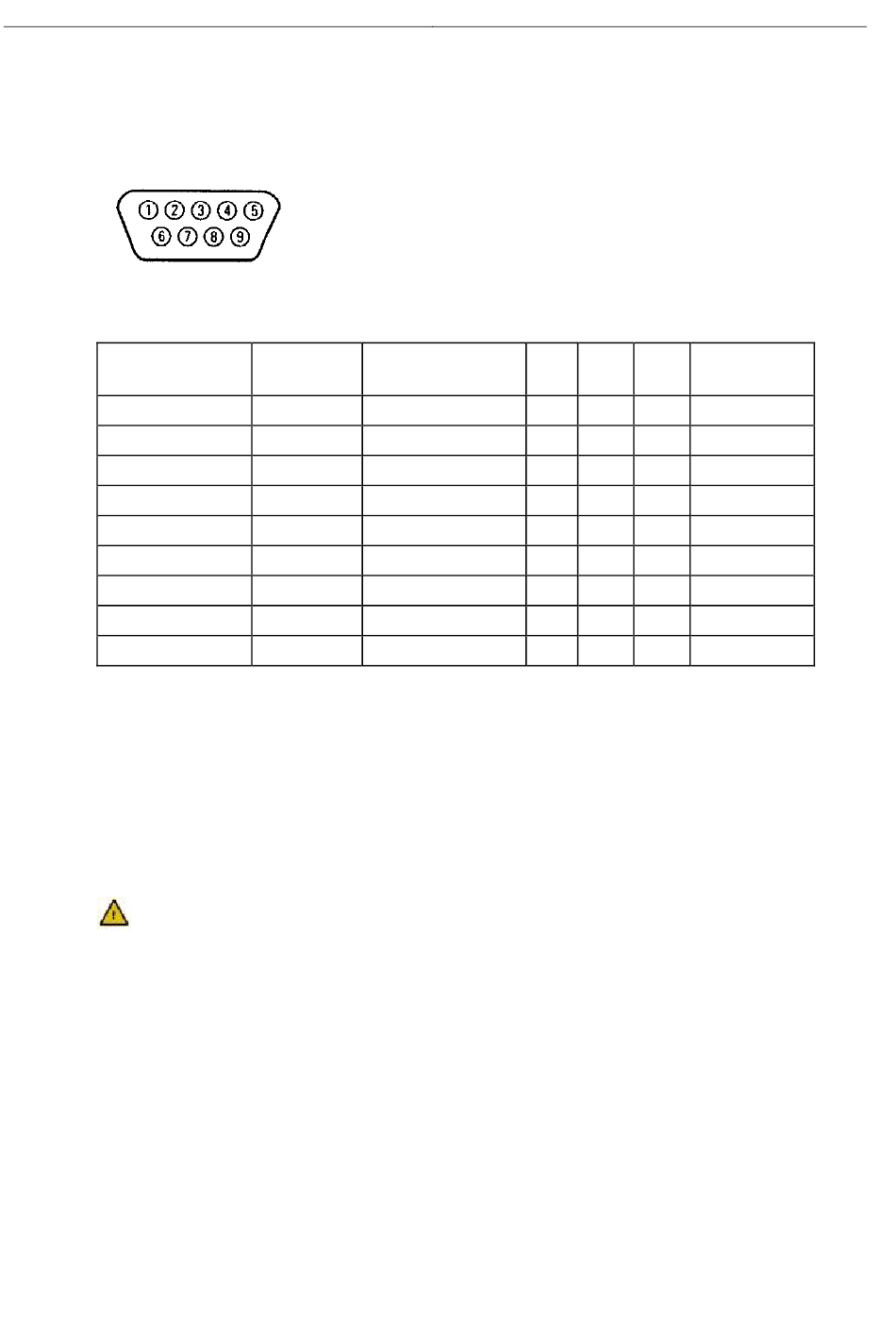

Layout of the 9-pin D-SUB jack
Description of the signals on the 9-pin D-SUB connector on DCE side:
9-pin D-Sub DCE
Pin No.
1
2
3
4
5
6
7
8
9
13.2

SIM Card

The INSYS GPRS 5.1 serial requires a 3V/1.8V SIM card from a GSM provider for
operation. The SIM card is the identification for the network provider.
The SIM card must be placed into the carrier with the contacts downward to en-
sure that the contacts are on top of each other.
Change the SIM card only when the device is switched off.
Description Function
DCD Data Carrier Detect
RXD Receive Data
TXD Transmit Data
DTR Data Terminal Ready
GND Ground
DSR Data set ready
RTS Request to send
CTS Clear To Send
RI Ring Indication
Connections, Display and Control Elements
CCITT EIA DIN E/A DCE to DTE
V-24 RS232 66020
109 CF M5
104 BB D2
103 BA D1
108 CD S1
102 AB E2
107 CC M1
105 CA S2
106 CB M2
125 CE M3
O
O
I
I
O
I
O
O
