INSYS GPRS 5.1 serial

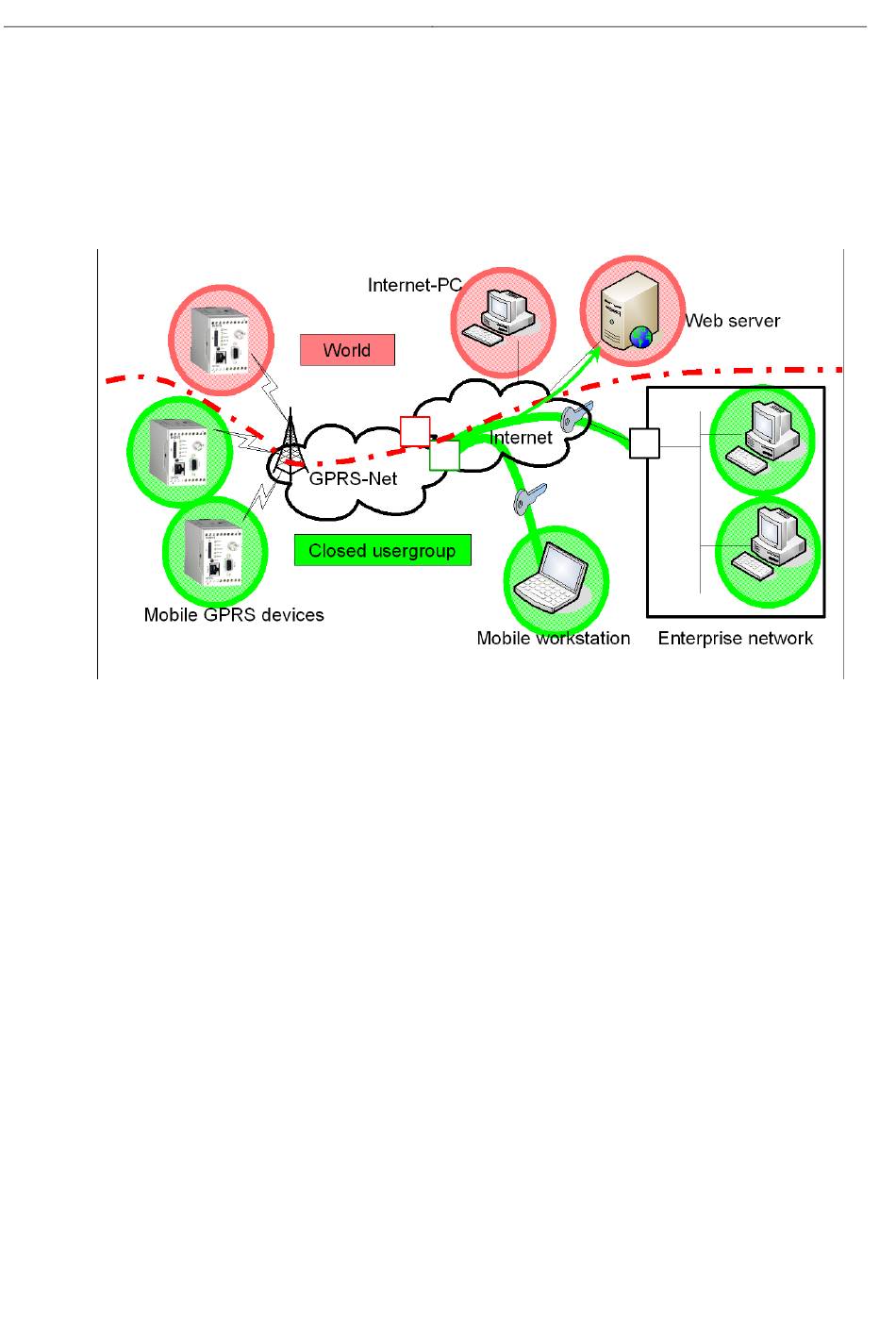

8.4.1 Fixed IP address and VPN connection

The service provider mdex (http://www.mdex.eu) offers the service "fixed.IP".
With this service, one or more devices in a virtual private network can be ad-
dressed. SIM cards are thus grouped to form a closed network with a private IP
address area. Connections from the company network to the devices will then be
established via a VPN tunnel.
The service fixed.IP from mdex will enable GPRS devices to communicate with
each other as well as with computers in the Internet via a VPN connection.
8.5

Data Rates

The INSYS GPRS 5.1 serial has the following characteristics:

GPRS Multislot class 12, Coding Scheme 1 to 4

EDGE multislot class 12, Modulation and Coding Scheme 1 to 9

GPRS End device class B

PBCCH Support
GPRS/EDGE has several classes (multislot classes) which are relevant for the
transmission speed. The classes provide the maximum transmission speed for up-
link and downlink.
The table below shows the number of time slots for the classes, which can be
used for uplink, downlink, and for the device altogether.
GPRS/EDGE devices support all variants up to their own Multislot class.
GSM, GPRS, and EDGE General
