English
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe the
following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
○ Lithium-ion batteries that exceed a power output of
100Wh are considered to be in the freight classifi cation
of Dangerous Goods and will require special application
procedures.
○ For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.
○ If the BSL36B18 (sold separately) is installed in the
power tool, the power output will exceed 100 Wh and
the unit will be classifi ed as Dangerous Goods for freight
classifi cation.

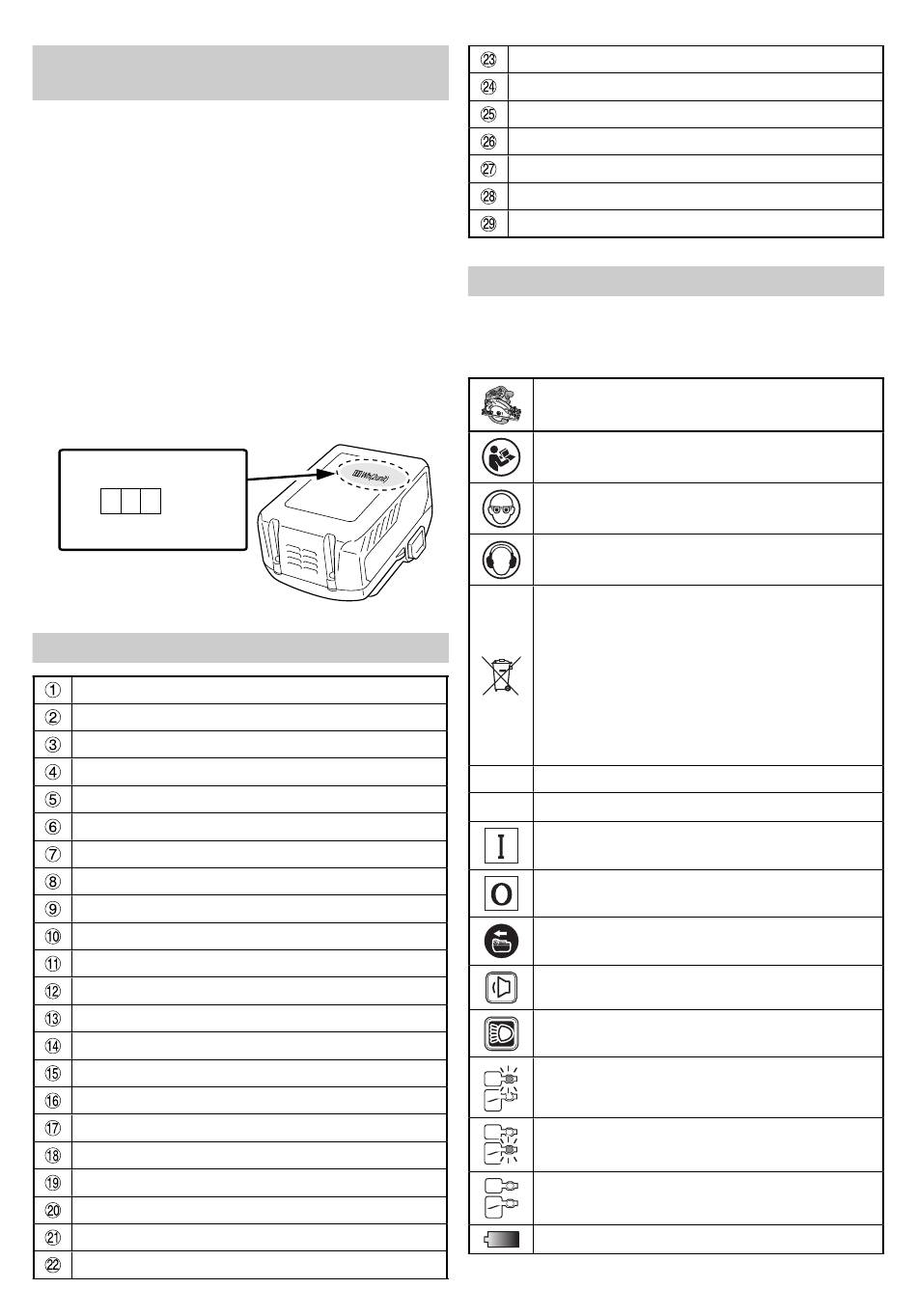

Power Output
Wh
2 to 3 digit number
NAMES OF PARTS (Fig. 1 – Fig. 28)
Switch
Switch lock
Cutting depth lever
Incline wing nut
Guide fastener wing bolt
Lower guard
Bolt
Washer (B)
Saw blade
Guide piece
Base
Incline lever
Lock lever
Guide fastener wing bolt
Stopper lever
LED light
Battery
Hex. bar wrench (large)
Handle
Mode selector switch
Silent mode indicator lamp
Remaining battery indicator lamp
Lighting mode switch
Lighting mode indicator lamp
Long guide
Guide
Dust collection adapter
Fluorine plate
Washer (A)
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
C18DBAL: Cordless Circular Saw
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Always wear hearing protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2012/19/
EU on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
V
Rated voltage
n
No-load speed
0
Switching ON
Switching OFF
Disconnect the battery
Mode selector switch
Lighting mode switch
ON Always ON (turn off after 2 minute)
ON
OFF
ON
Light only SW-ON
ON
OFF
ON
Always OFF
ON
OFF
Battery capacity
6
