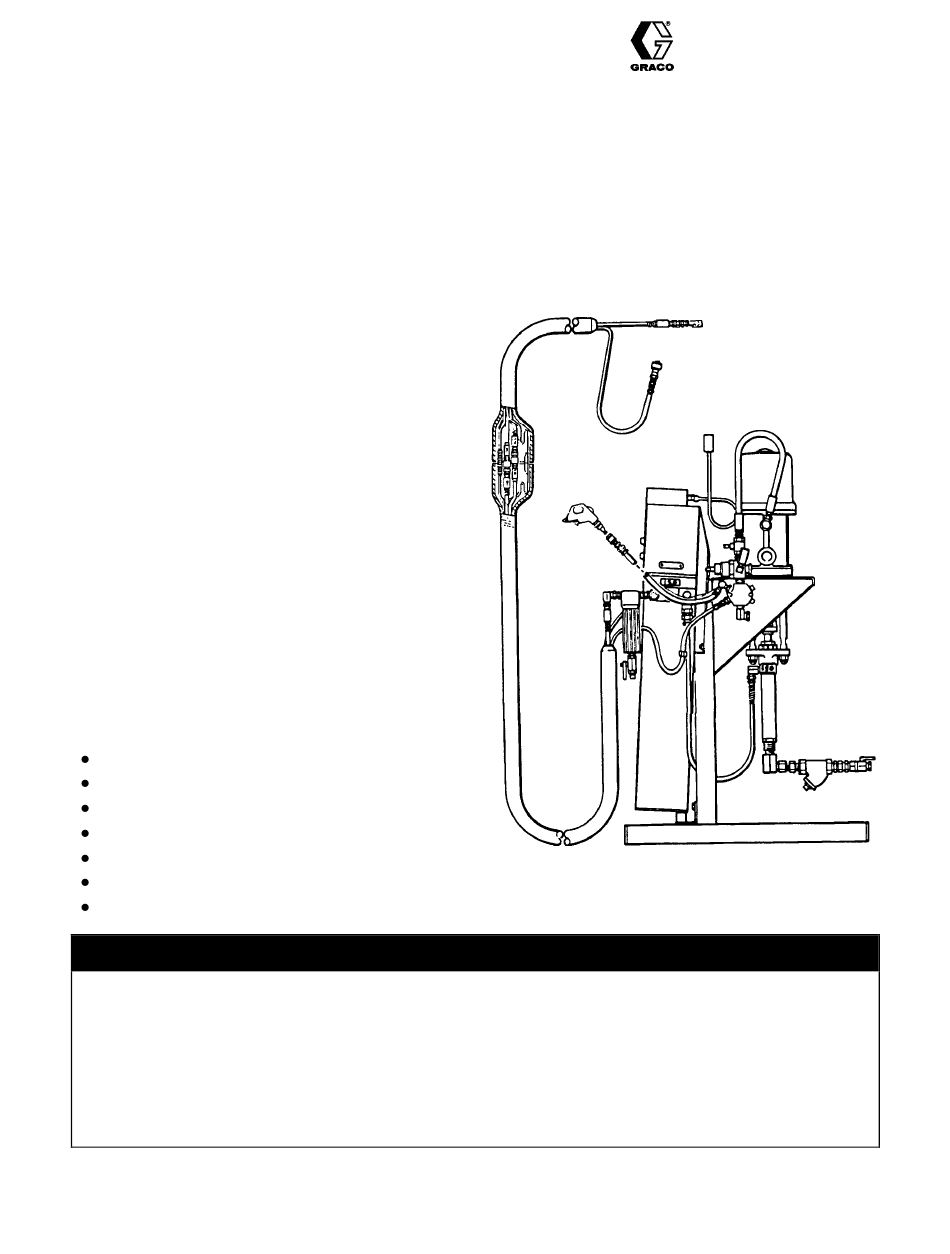

INSTRUCTIONS - PARTS LIST
LINE X
Air Powered
LX2000 SPRAYER
3000 PSI (207 bar) MAXIMUM WORKING PRESSURE
240 Volt, 1 or 3 Phase, 50/60 Hertz
Delivery
7.5 lb/min at 48°F temperature rise
(3.88 Kg/min at 27°C temperature rise)
Power Requirements
Electrical:
240 Volt Maximum
208 Volt Minimum
Single phase:
37 Amps with 315' (91.4m)
hose
Three phase:
27 Amps with 315' (91.4m)
hose
Compressed Air:
Model 973-005 includes:
Heater and heated hose controls
President plural component pump
Pump stand
50' (15m) 3/8" ID heated hose
15' (4.6m) 1/4" ID heated whip hose
(2) 1:1 55 gallon feed pumps
(1) Helix agitator
Reactive Chemical Hazard
Graco Inc. does not manufacture or supply any of the reactive chemical materials that may be used in this
equipment and is not responsible for their effects. Because of the vast number of chemicals that could be
used and their varying chemical reactions, before using this equipment, the buyer and the user should
determine all facts relating to the materials used, including any of the potential hazards involved.
Particular inquiry and investigation should be made into potential dangers relating to toxic fumes, fires,
explosions, reaction times, and exposure of human beings to the individual components or their resultant
mixtures. Graco assumes no responsibility for loss, damage, expense or claims for bodily injury or
property damage, direct or consequential, arising from the use of such chemical components.
GRACO INC. - EAS
80-120 psi
(5.6-8.3 bar)
30 CFM (0.84 m³/min)
WARNING
P.O. Box 1441
©
COPYRIGHT 1997 Graco Inc.
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
MINNEAPOLIS, MN 55440-1441
684-027
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco LINE X LX2000
Summary of Contents for Graco LINE X LX2000
- Page 1 Reactive Chemical Hazard Graco Inc. does not manufacture or supply any of the reactive chemical materials that may be used in this equipment and is not responsible for their effects. Because of the vast number of chemicals that could be used and their varying chemical reactions, before using this equipment, the buyer and the user should determine all facts relating to the materials used, including any of the potential hazards involved.
-
Page 2: Table Of Contents
If you are using other similar accessories, refer to NOTE: Identifies helpful procedures and instructions received with that information. equipment. Graco accessories are listed on the back cover. 1 684-027... -
Page 3: Warnings
WARNING HIGH PRESSURE SPRAY CAN CAUSE SERIOUS INJURY. FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS. Read and understand all instruction manuals before operating equipment. FLUID INJECTION HAZARD General Safety Safety Latch This equipment generates very high fluid pressure. Whenever you stop spraying, even for a moment, Spray from the gun, leaks or ruptured components always set the gun safety latch in the closed or can inject fluid through your skin and into your body... - Page 4 Graco hose rupture and cause serious bodily injury; including injection, and property damage.
- Page 5 FIRE OR EXPLOSION HAZARD 5. Air compressor or hydraulic power supply: Static electricity is created by the high velocity flow of fluid through the pump and hose. If every part of follow manufacturer’s recommendations. the spray equipment is not properly grounded, 6.
-
Page 6: Typical Installation Drawing
201 Pump Stand Air Dryer Ring 202 Y-Line Strainer suit your needs, contact your Graco Air Hose, Feed Pump Kit 204 Fluid Hose, Disp Pump representative. Main Air Supply to Dryer to heater Control Box Cable, Heater 207 Heater LX2000 Sprayer Component Manuals... -
Page 7: Installation
INSTALLATION 1. Secure the sprayer stand (201) to the floor in a a. Fill the bowl of the desiccant dryer. suitable location. Refer to the mounting hole Unscrew the ring (10) to remove the diagram in manual 307-551. dryer bowl. Refer to the Typical Installation. - Page 8 9. Each hose assembly is 50’ (15 m) long. maximum combined length of 300’ (92 m) can be used, in addition to a 15’ (4.6 m) whip hose assembly. The whip hose assembly is smaller in diameter, which makes maneuvering the hose easier for the operator.
- Page 9 b. Between the middle and outer prong of 7. Connect the whip hose to the main hose the connector, the resistance should be assembly. more than 1 megohm. If it is less, a. Connect the corresponding fluid hoses. there is a fault in one of the connectors (D) or the heat tapes, which will cause b.
- Page 10 13. Ground the system. WARNING FIRE, EXPLOSION, AND ELECTRIC SHOCK HAZARD Before operating the system, ground it explained your separate component manuals and local code. Also read seciong FIRE, EXPLOSION, ELECTRIC SHOCK HAZARD. heated hose grounded through connection to a properly grounded heater. In a mobile installation, be sure the truck or trailer is grounded to a true earth ground.
-
Page 11: Operation
Typical Installation. Never substitute a different type of coupler and c. Close the air valve (214) to the fitting! Use original Graco parts. proportioning pump air motor. Refer to the Typical Installation on page 5. d. Fill the displacement pump wet-cup 2/3 full is IPO (ISO pump Oil, supplied). - Page 12 OPERATION (continued) 1) Set both air regulators (65) to WARNING the lowest pressure needed to provide adequate dry air to the supply drums. A setting of 2 If either pressure relief valve (66) is not (0.14 bar) normally operating properly, or if the drum pressure ever provides enough dry air to the exceeds 5.5 PSI (0.38 bar), replace the valve drums.
- Page 13 WARNING Pressure Relief Procedure Always relieve the fluid pressure in the sprayer and hoses before checking or adjusting any part of the system or any component, to reduce the risk of serious bodily injury, including fluid Wrap hose connections with electrical tape injection, splashing in the eyes or on the skin, or injury from moving parts or electric shock.
-
Page 14: Routine Sprayer Operation
Turn the circuit breakers (63) to “I” for d. Let the material heat for 15 minutes. e. Set the heated hose ATC (77) to MED. NOTE: Graco recommends always using the hose ATC even if the heater ATC is not used. 13 684-027... -
Page 15: Maintenance
The first time you use the heater, * ATC SETTING operate it without using the heater ATC AMBIENT (72). Check the temperature gauges TEMP regularly during the day and adjust the fluid temperature as needed. This will 60°F 115°F 120°F 125°F 135°F help you determine the right ATC range... - Page 16 NOTES: 15 684-027...
- Page 17 PARTS DRAWING Detail A Air Manifold Connections 684-027 16...
-
Page 18: Parts List & Drawings
PARTS LIST Basic Sprayer Components REF PART REF PART DESCRIPTION DESCRIPTION 217-296 STAND, pump (see 307-551 208-851SP PUMP, President Plural Component (see 306-989 for parts) for parts) 101-078 STRAINER, “Y”; 20 mesh Delete 222-012 and add screen, 3/4” npt (fbe) 222-019 Pump Lowers Includes items 202a (See 307-944 for parts) -
Page 19: How To Order Replacement Parts
2. Check the parts list to identify the correct part number; do not use the ref. no. when ordering. 3. Order all parts from your nearest Graco distributor. 6 digit PART NUMBER... - Page 20 Graco. These items sold, but not manufactured by Graco (such as electric motor, switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
