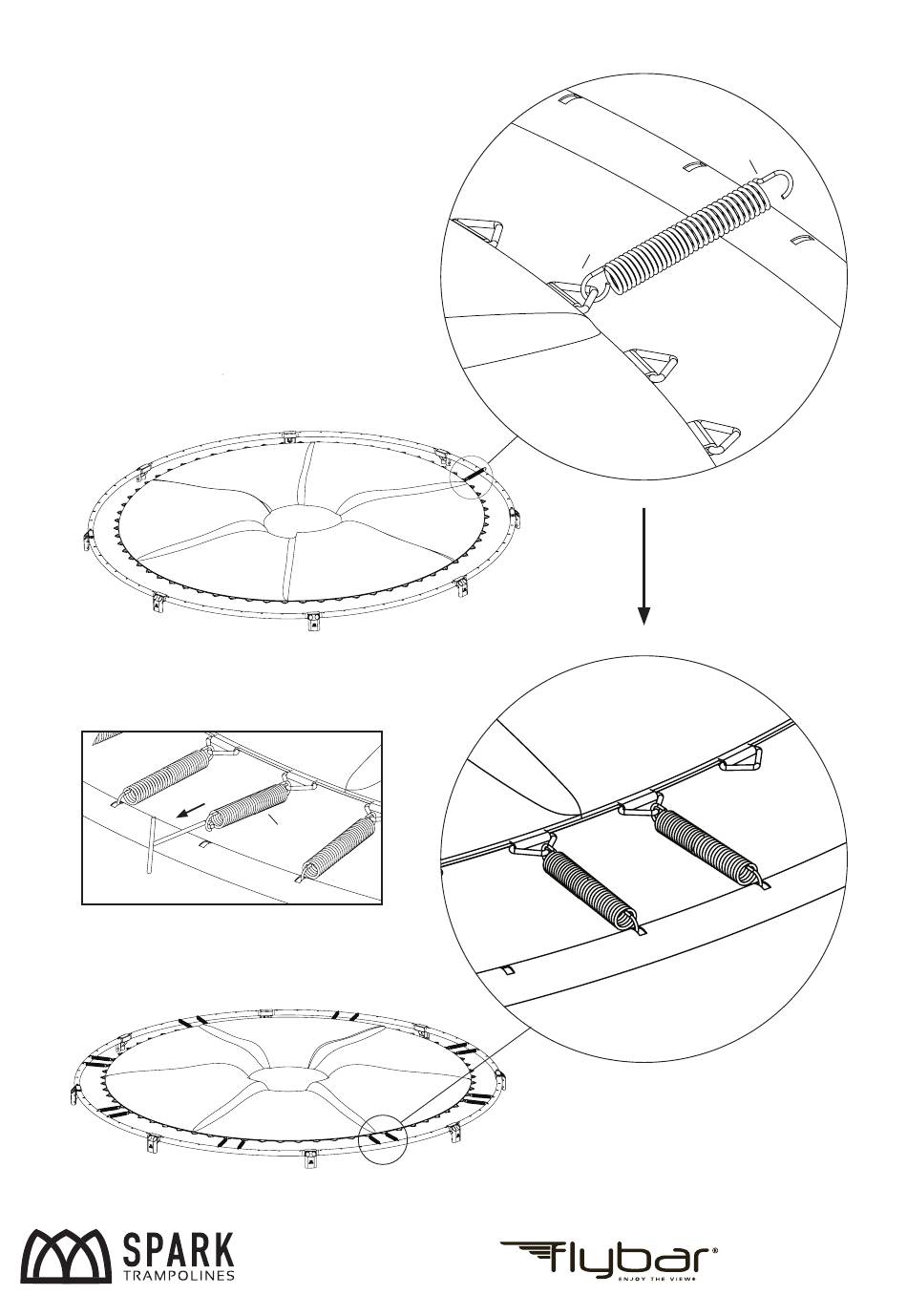

STEP 7: Install Springs
Firstly pick up a SPRING, and connect one end
with smaller opening to the triangle hook of the
F
JUMP MAT. Put 2 springs in every 8th hole so the
mat tension is evenly spread. Use SPRING TOOL
(if necessary)
E
4
5
6
5
D
Use of Spring Tool
