Flybar Spark Manual page 13

STEP 11: Install the CROSS UPPER POLEs
STEP 13: Install Cross Upper Poles
After installing the CROSS MIDDLE POLEs, now pick up one CROSS UPPER POLE
and loosen the screws on the top (image below). Do not take the screws out.
After installing the cross middle poles, now pick up one cross upper pole and loosen the screws on
the top (image below). Do not take the screws out. You can now adjust the cross upper pole angle and
You can now adjust the CROSS UPPER POLE angle and plug it into the CROSS
plug it into the cross Middle pole. The screw heads should face outward. It should look like the image
MIDDLE POLE. The Screw heads should face outward. It should look like the
below. Finally tighten the screws. Congratulations, you are just one step away from finish building your
personal spark.
image on next page. Finally tighten the screws. Congratulations, you are just one
step away from finish building your personal SPARK.
*If you have any problems by this stage, please do not try to install the trampoline and call 1300 782 661
11
5 6
Version 1.0
Screws
7 8
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
DRAWN

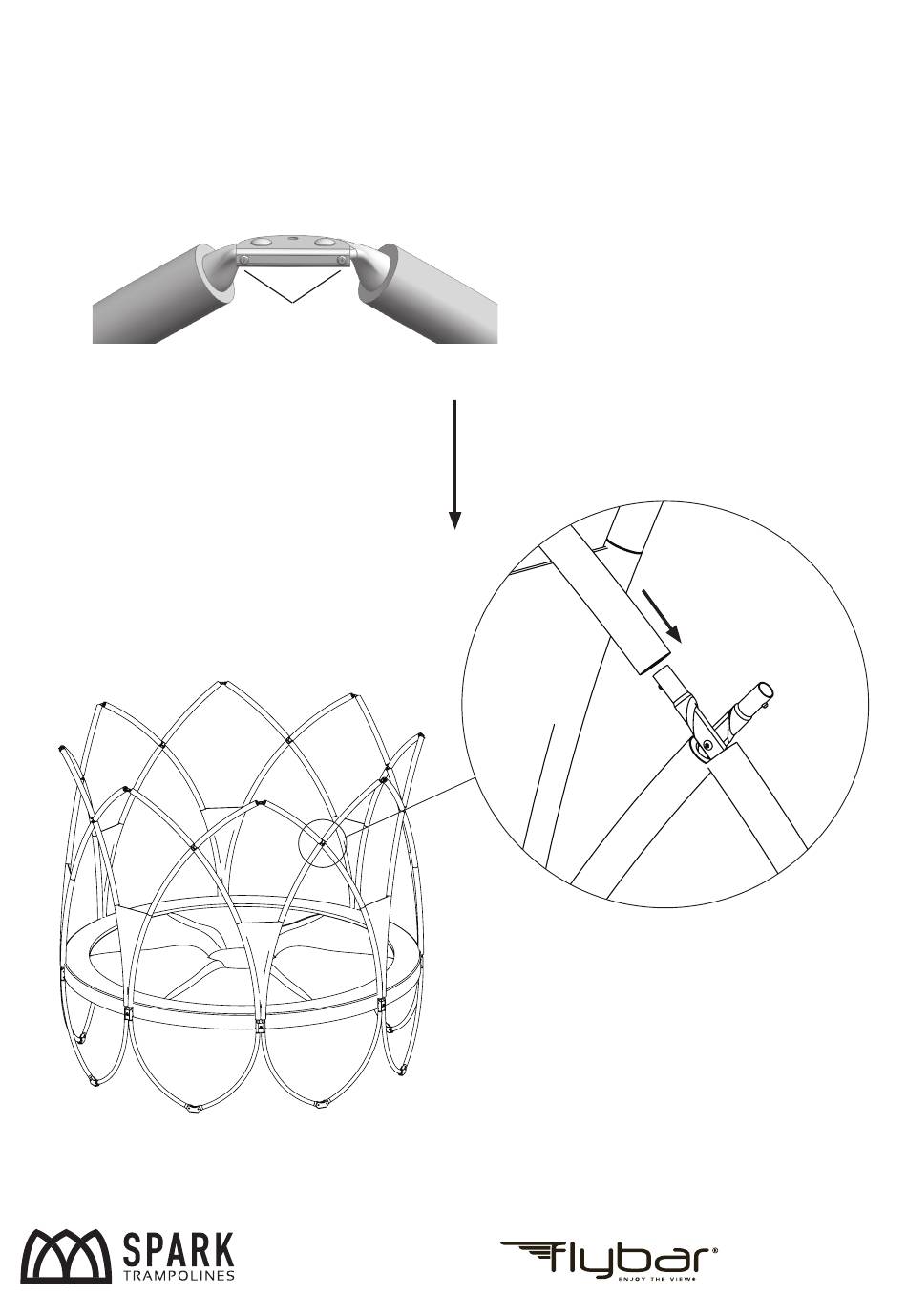

1. Loosen the screws
2. Adjust the Angle
3. Plug it into the CROSS MIDDLE POLE
4. Make sure the screw heads are facing
outward
5. Tighten the screws
