Suggested Locations For Wiring Inlets; Wall Mount Installation - Altronix WayPoint-307A Manual

Fig. 2

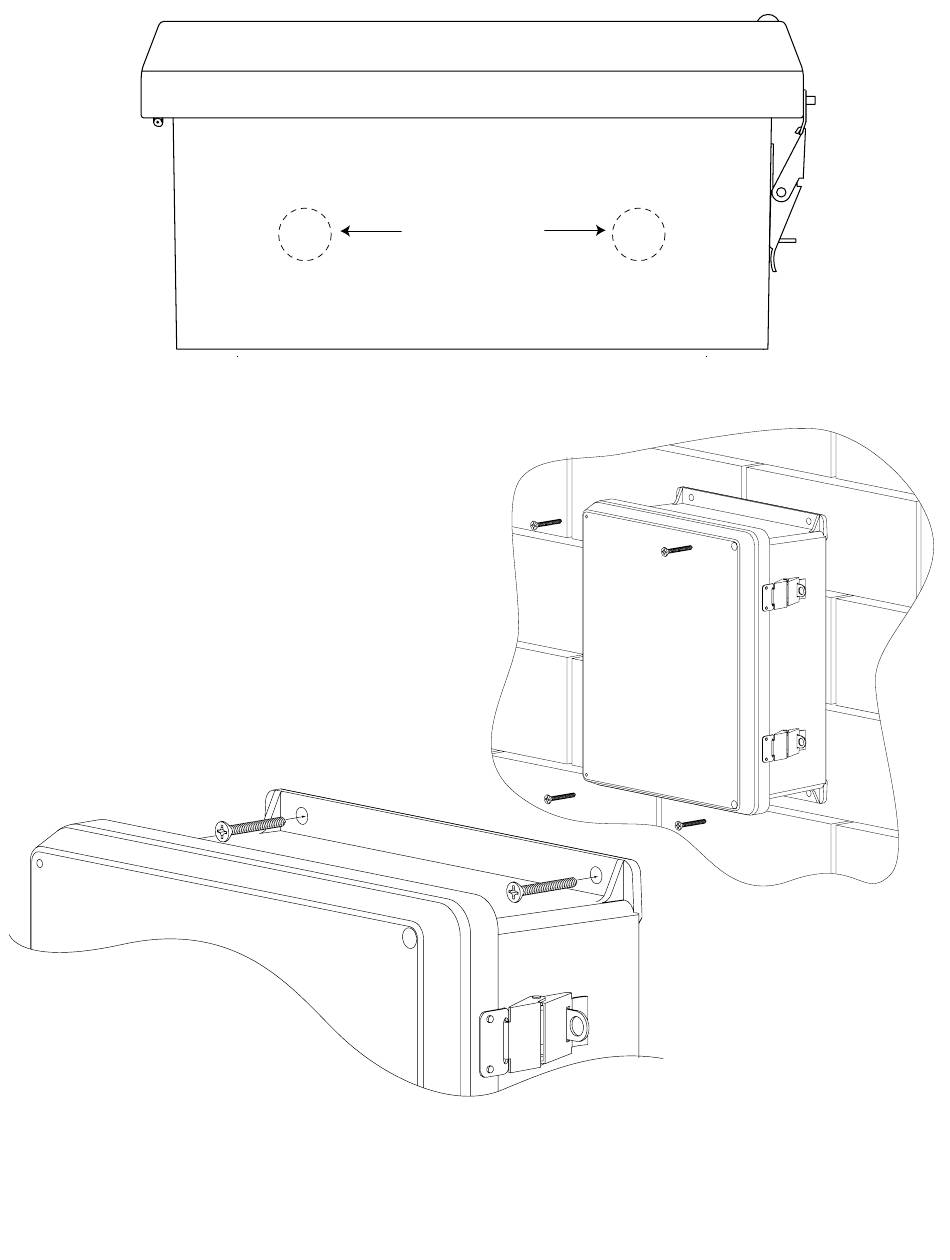

Suggested Locations
for Wiring Inlets
Bottom of Enclosure

Wall Mount Installation

1- Place unit at desired location and secure with mounting screws
(not included) (Fig. 3 and Fig. 3a, pg. 3).
Fig. 3
Fig. 3a
- 3 - WayPoint-307A
