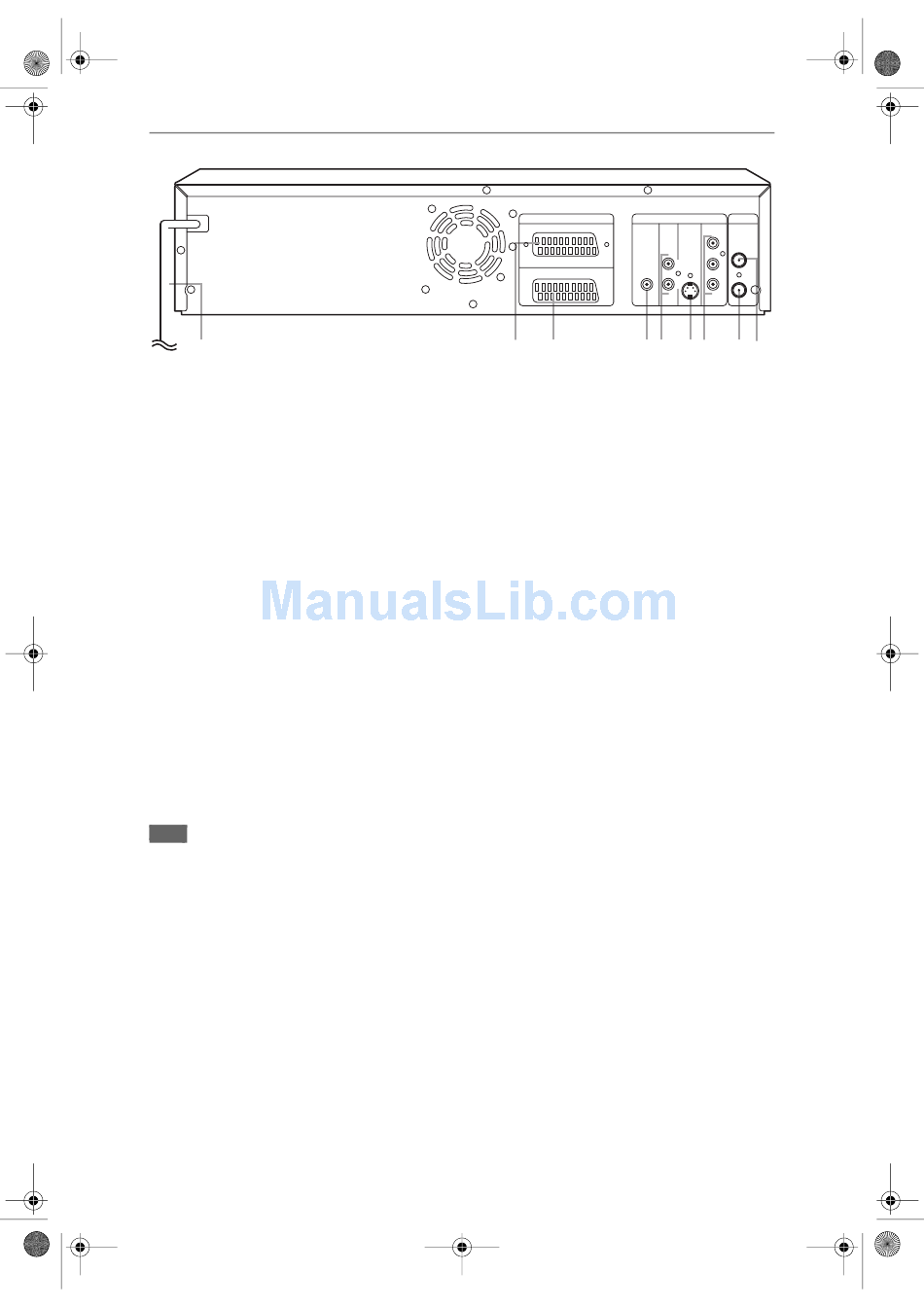

Rear Panel
1
1 Mains cable
• Connect to a standard AC outlet.
2 AV2 (DECODER) socket (DVD / VCR)
• Connect to VCR, camcorder, or other
Audio-Video equipment. Use a commercially
available Scart cable.
3 AV1 (TV) socket (DVD / VCR)
• Connect to the Scart socket on your TV. Use a
commercially available Scart cable.
4 DIGITAL AUDIO OUT (COAXIAL) jack
(DVD)
• Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder, DTS decoder
or MPEG decoder. Use a commercially
available Coaxial cable.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.
• This unit does not have an RF modulator.
12
EN
DVD/VCR
DIGITAL
AV2(DECODER)
AUDIO OUT
COAXIAL
AV1(TV)
2 3 4 5
5 AUDIO OUT jacks (DVD)
• Connect to the audio input jacks on your TV.
Use a commercially available Audio cable.
6 S-VIDEO OUT jack (DVD)
• Connect to the S-Video input jack on your TV.
Use a commercially available S-Video cable.
7 COMPONENT VIDEO OUT jacks (DVD)
• Connect to the component video input jacks on
your TV.
• Use a commercially available Component Video
cable.
8 ANTENNA OUT (DVD / VCR)
• Connect to the Aerial jack on your TV, cable box
or direct broadcast system. Use the supplied RF
cable.
9 ANTENNA IN (DVD / VCR)
• Connect to an antenna or cable.
DVD ANTENNA
AUDIO S-VIDEO COMPONENT
OUT OUT VIDEO OUT
Y
IN
P
L B
/C
B
P
R R
/C
R
OUT
6 7 8 9
