Yoder Smokers YS480 Procedure Of Replacing page 5

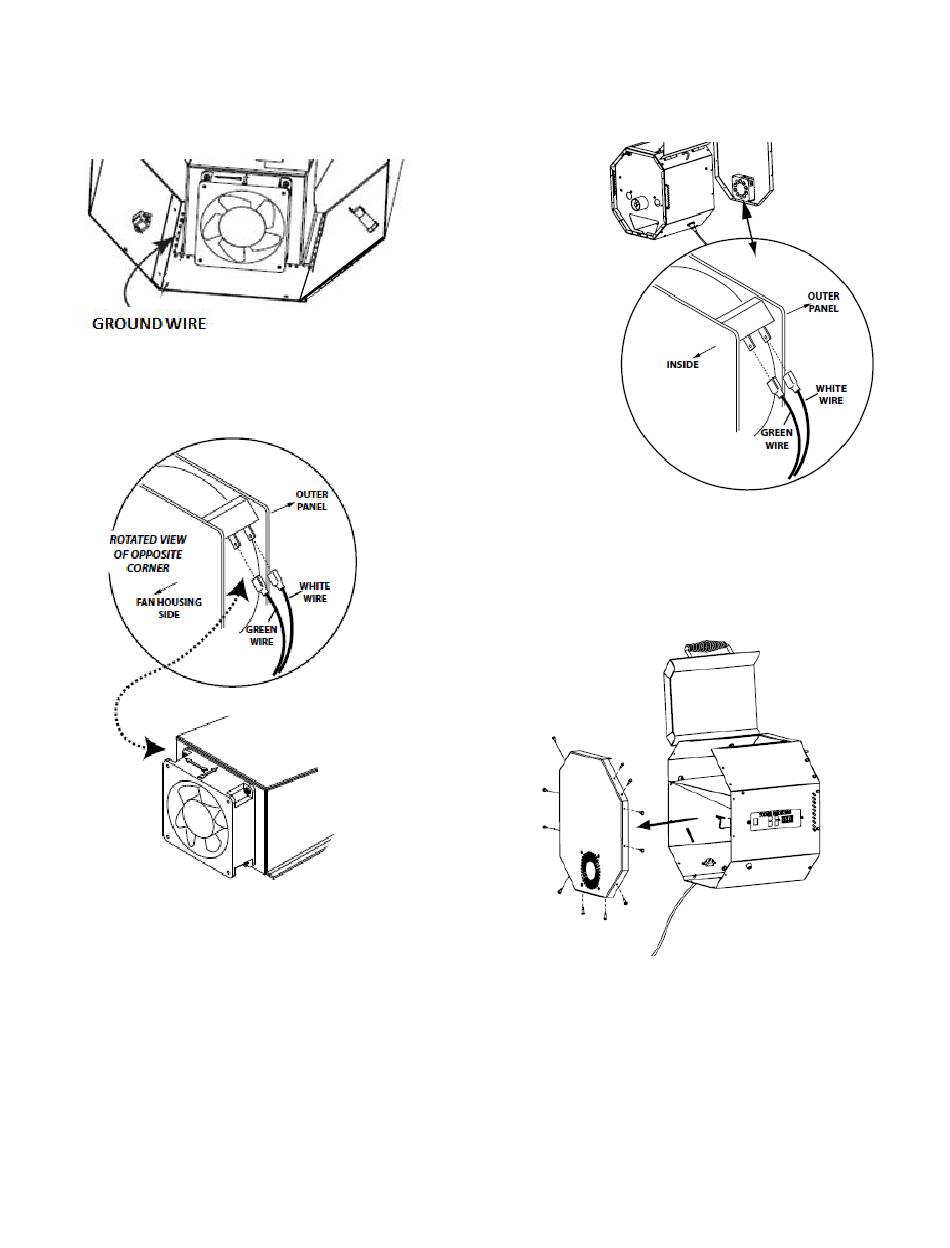

15. (240 volt models only) Position the
housing so that the screw that was
removed for the ground wire can be
inserted into the housing. Secure the
ground wire using the screw, nut and
star washer removed in step 9.
16. Connect the two wires (one green, one white)
to the inner fan.
17. Connect the two wires (one green, one white)
to the outer fan. NOTE: (Connect the two
purple wires to the fuse holder on Comp cart
models only)
18. Install the end panel using the eleven
x 3/4" Hex Head Self-Drilling Screws) screws to
secure the hopper end panel.
END OF PROCEDURE
4
(#10
