Procedure for replacing the fans in a Yoder Smokers Pellet Grill

(YS480, YS640, YS1500 Models)

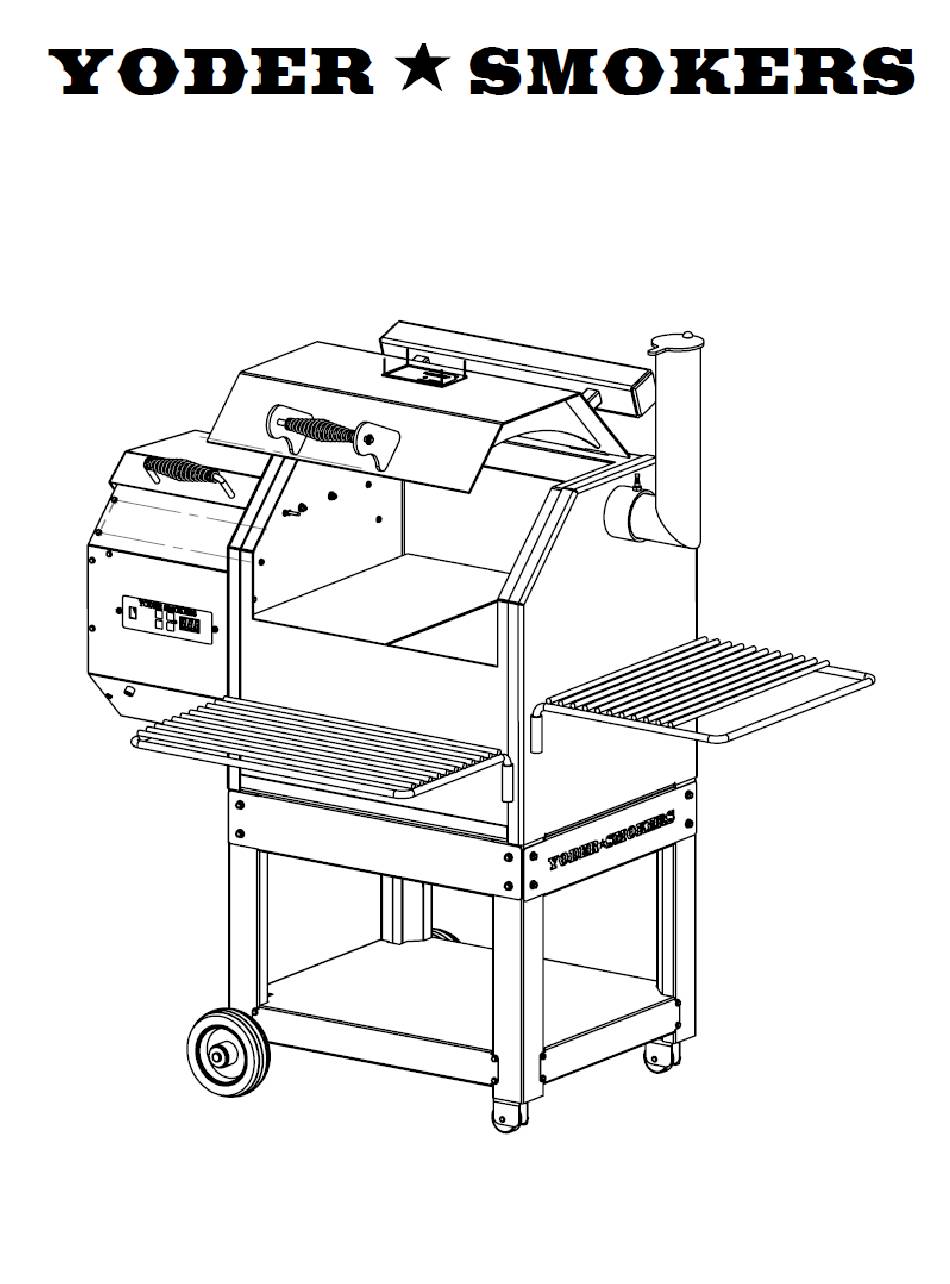

Page 1 Procedure for replacing the fans in a Yoder Smokers Pellet Grill (YS480, YS640, YS1500 Models)
Page 2 ! CAUTION: BEFORE BEGINNING THIS PROCEDURE, INSURE THAT THE POWER CORD TO THE SMOKER IS DISCONNECTED! FAILING TO DO SO MAY RESULT IN BODILY INJURY. 1. Remove the eleven screws (#10 x 3/4” Hex Remove the fan diffuser from the outer fan by loosening the two 632x38MS screws and two Head Self-Drilling Screws) securing the hopper 632HN nuts.
Page 3 5. Important: On the top of both fans are Install the fan diffuser to the outer fan using the two 632x38MS screws and two 632HN nuts. directional arrows indicating the correct orientation for the fans. Make sure that the new fan matches the air flow orientation as shown below.
Page 4: Ground Wire
12. Install the new inner fan making sure 9. Next use a flat head screwdriver to loosen the that the air flow arrow is pointed towards housing from the silicone that is securing the the housing and the wire terminals are inner fan housing in place.
Page 5 15. (240 volt models only) Position the 17. Connect the two wires (one green, one white) housing so that the screw that was to the outer fan. NOTE: (Connect the two removed for the ground wire can be purple wires to the fuse holder on Comp cart inserted into the housing.
