Summary of Contents for Yoder Smokers YS640

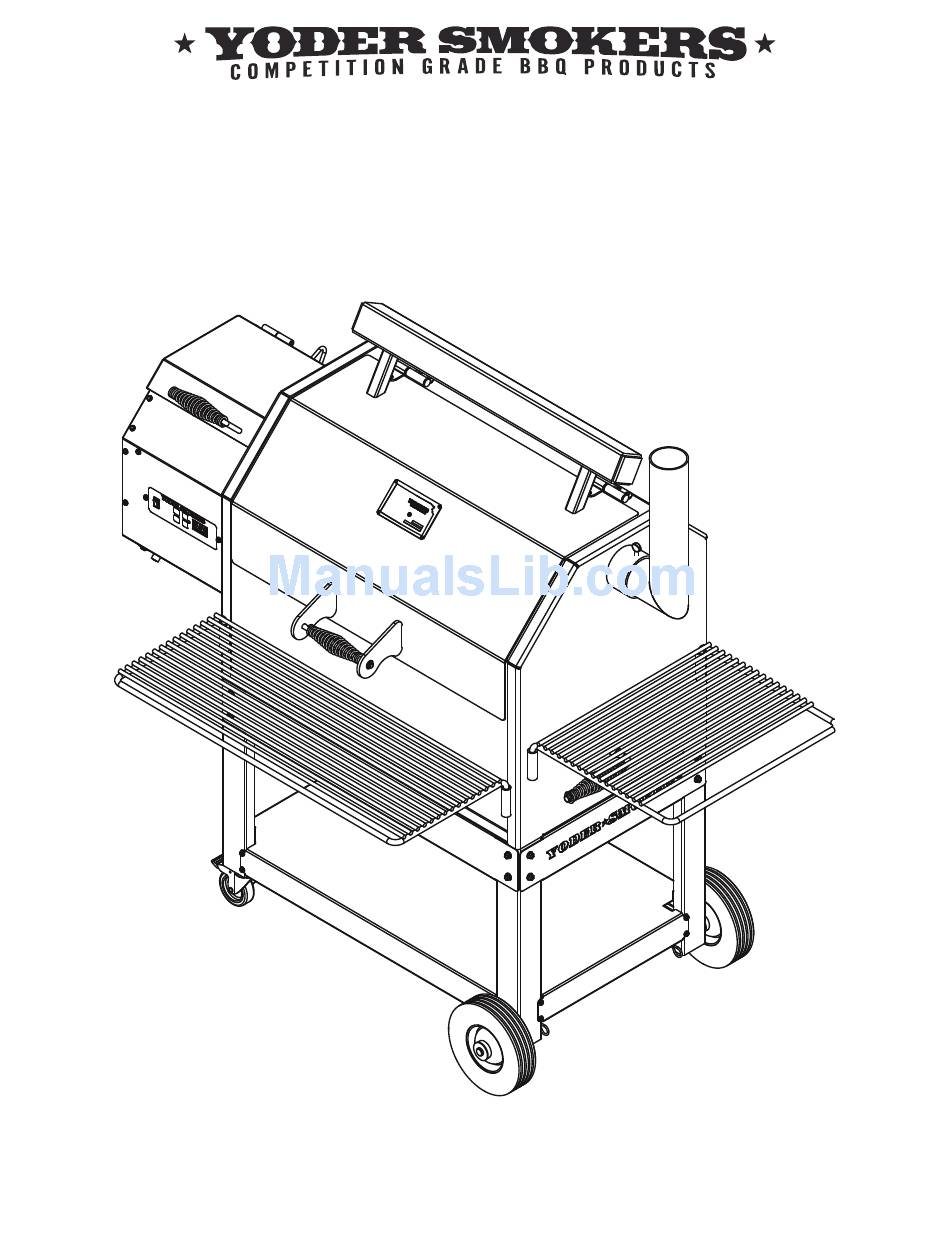

- Page 1 Yoder Smokers Lid Seal Kit Installation Instructions ( YS640 / YS480 ) APR, 2017 - VER 1.0...
- Page 2 Before you begin, to avoid personal injury, it is HIGHLY recommended that at TWO people are available to install this kit. Items included in kit: • (2) Stainless Steel Hinge Shims • (4) Stainless Steel Flat Head Phillips Screws, #10 x 3/4” Long •...
- Page 3 Step 5 – Find the 1/2” wide x 21-1/2” long Seal Strips. Adhere (1) to the left side and (1) to the right side of the lid, as shown. Step 6 – Inside the cooking Chamber, locate #10 Flange nuts below hinges.
- Page 4 Step 11 – Repeat Steps 7-10 on the hinge closest to the chimney. Step 12 – Close lid to make sure it sits square and is centered on the chamber, as shown. Step 13 – Carefully open lid. Step 14 – Using a #2 Screwdriver and 3/8” wrench, tighten all (4) #10 Flange Nuts on screws.
