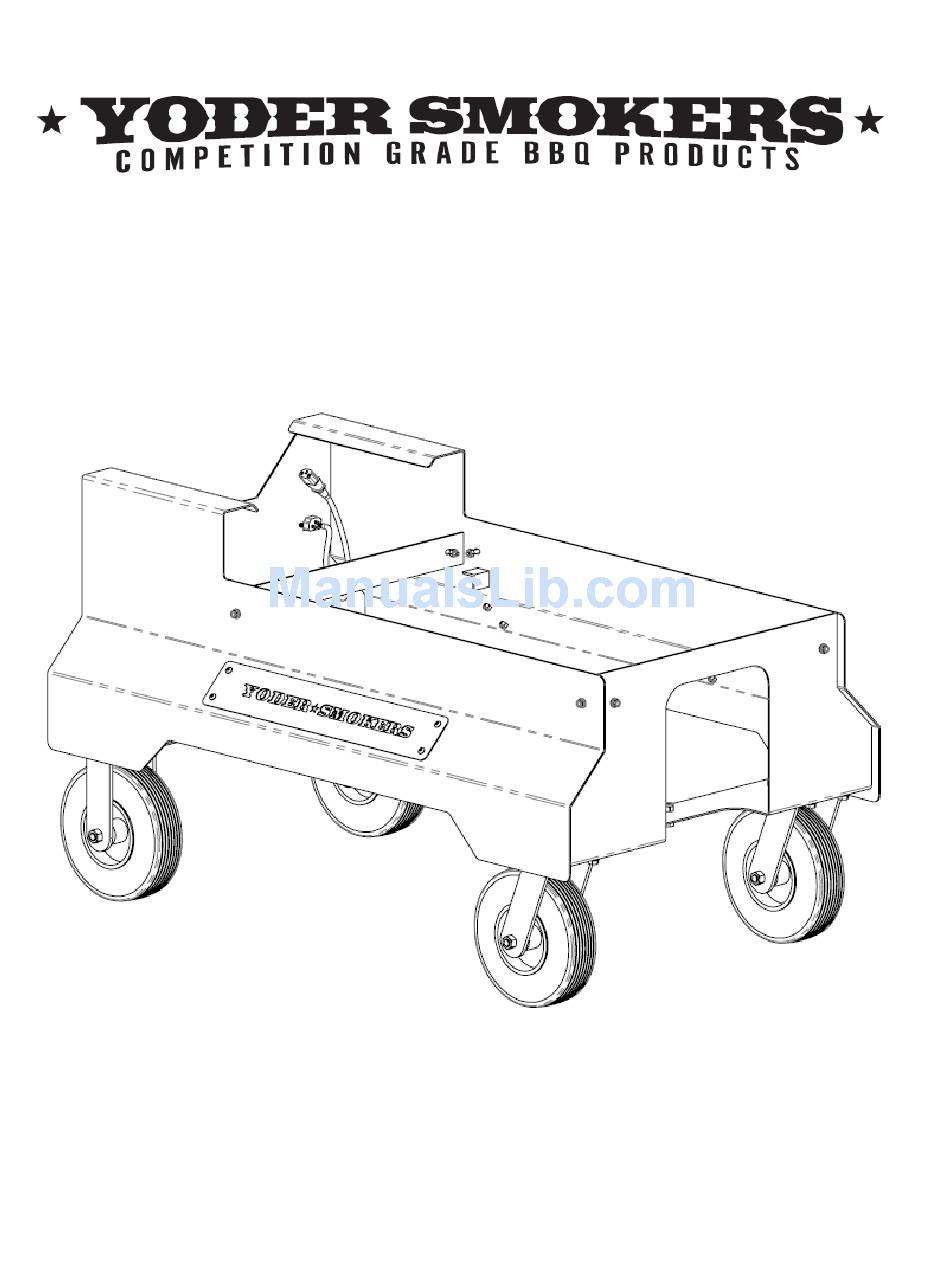

Instructions for installing a YS480/YS640 competition cart

Page 1 Instructions for installing a YS480/YS640 competition cart...
Page 2 Tools Needed 1. 5/16” socket 2. 7/16” wrench 3. 3/8” socket 4. Ratchet 5. 1/2” drill bit 6. 1/4” drill bit 1. Remove the cooking grates, diffuser plate and burn grate. 2. Using a 5/16” socket, remove the 11 screws securing the end panel to the hopper assembly.
Page 3 4. Next, mark the location to relocate the fuse 7. Note: This next step will require at least 2 holder. (See FIG 6) Use a ¼” bit to make the people to complete. Place the comp cart starter hole. Then use a ½” bit to drill the next to the grill making sure that the hole for the fuse holder.
Page 4 10. Insert the bolts into the 6 holes located on the outside of the cart and secure them on the inside with the lock nuts using the 3/8” socket and 7/16” wrench. FIG 10 11. Plug in the power cord extension into the hopper.
