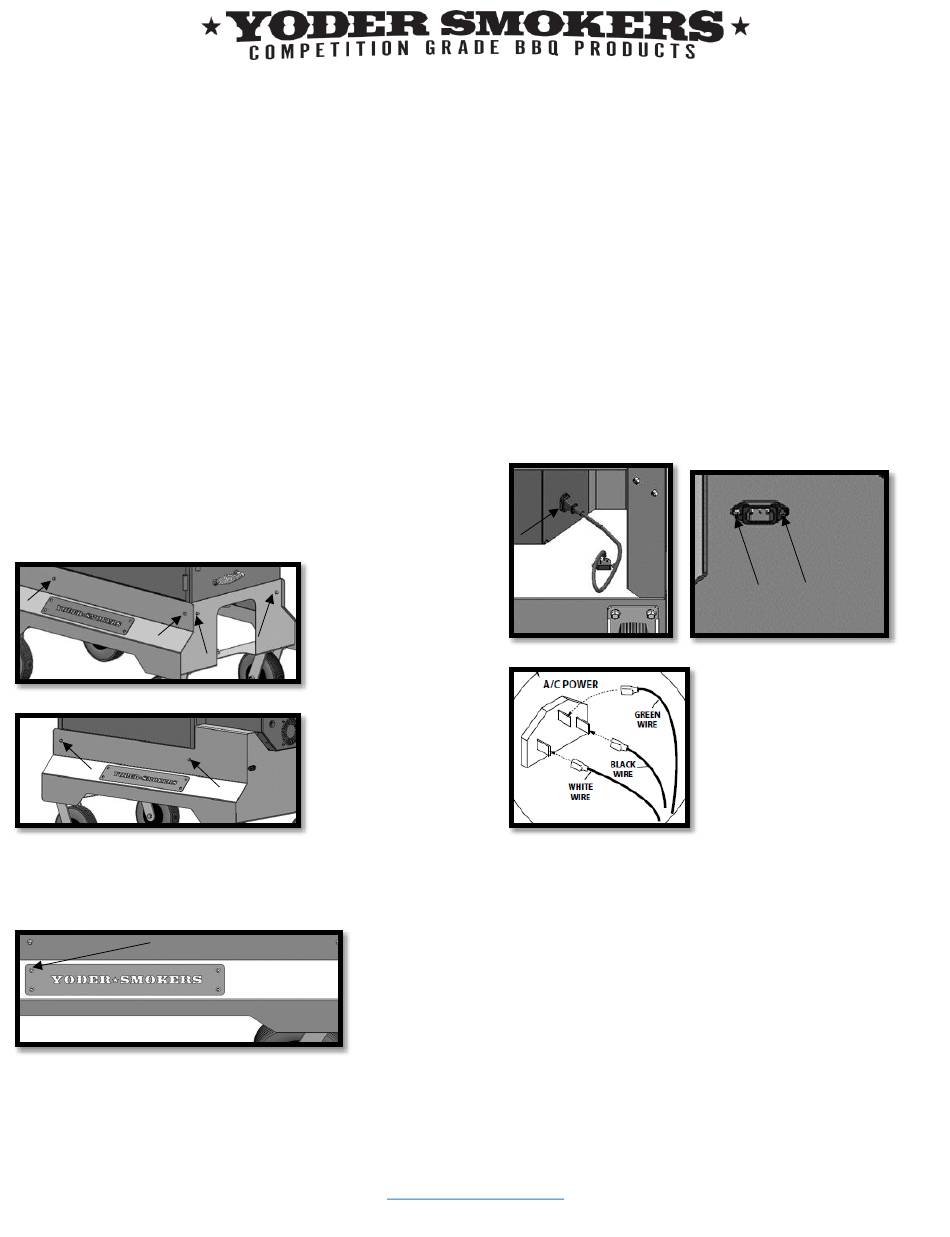

Yoder Smokers YS640 Installation Instructions

IMPORTANT! Grill must be unplugged from power prior to performing the following procedure.
Parts Included:
1-Comp Cart Front Panel
1-Comp Cart Back Panel
1-Hopper End Panel
1-Chimney End Panel
2-Hopper Trim Panel
*NOTE* Prior to installing the magnetic wrap to your comp cart,
it is recommended to lay the wrap on a flat surface overnight
with an ambient air temperature of at least 70°F.
Installation Instructions:
1. Use the 3/8" Wrench and 7/16" wrench to remove the
6 bolts from the comp cart shown in FIG 1 and FIG 2.
FIG 1
FIG 2
2. Use the 5/32" Allen wrench and 7/16" wrench to
remove the Yoder Smokers signs from both sides of
the comp cart shown in FIG 3.
FIG 3
YS640/YS480 Magnetic Wrap Installation Instructions
www.yodersmokers.com
1.877.409.6337
Tools Needed:
3/8" Wrench
7/16" Wrench
Phillips Screwdriver
5/32" Allen Wrench
5/16" Wrench
3. Unplug the male end of the power cord extension
from the hopper.
(FIG 4)
the male plug but instead has 3 wires coming out of the
hopper, refer to FIG 6 to disconnect the wires from the power
Then use the Phillips screwdriver and 5/16"
socket.
wrench to remove the power socket and pull the plug
through the comp cart. (FIG 5)
FIG 4
FIG 6
Prior to installing the magnetic wrap, clean the surface of the
competition cart to remove any dirt/dust from the surface. It is
recommended that the wrap, the cart, and the ambient air
temperature are at least 60°F. If attempting to install at a
lower temperature, we recommend using a hair dryer to warm
up the temperature of the wrap and the temperature of the
cart until warm to the touch. Use extreme caution to not
overheat the wrap.
*NOTE* If your grill does not have
FIG 5
