storage drawer system
YS480 / YS640 ASSEMBLY AND INSTALLATION

Advertisement

loading

Related Manuals for Yoder Smokers YS480

Summary of Contents for Yoder Smokers YS480

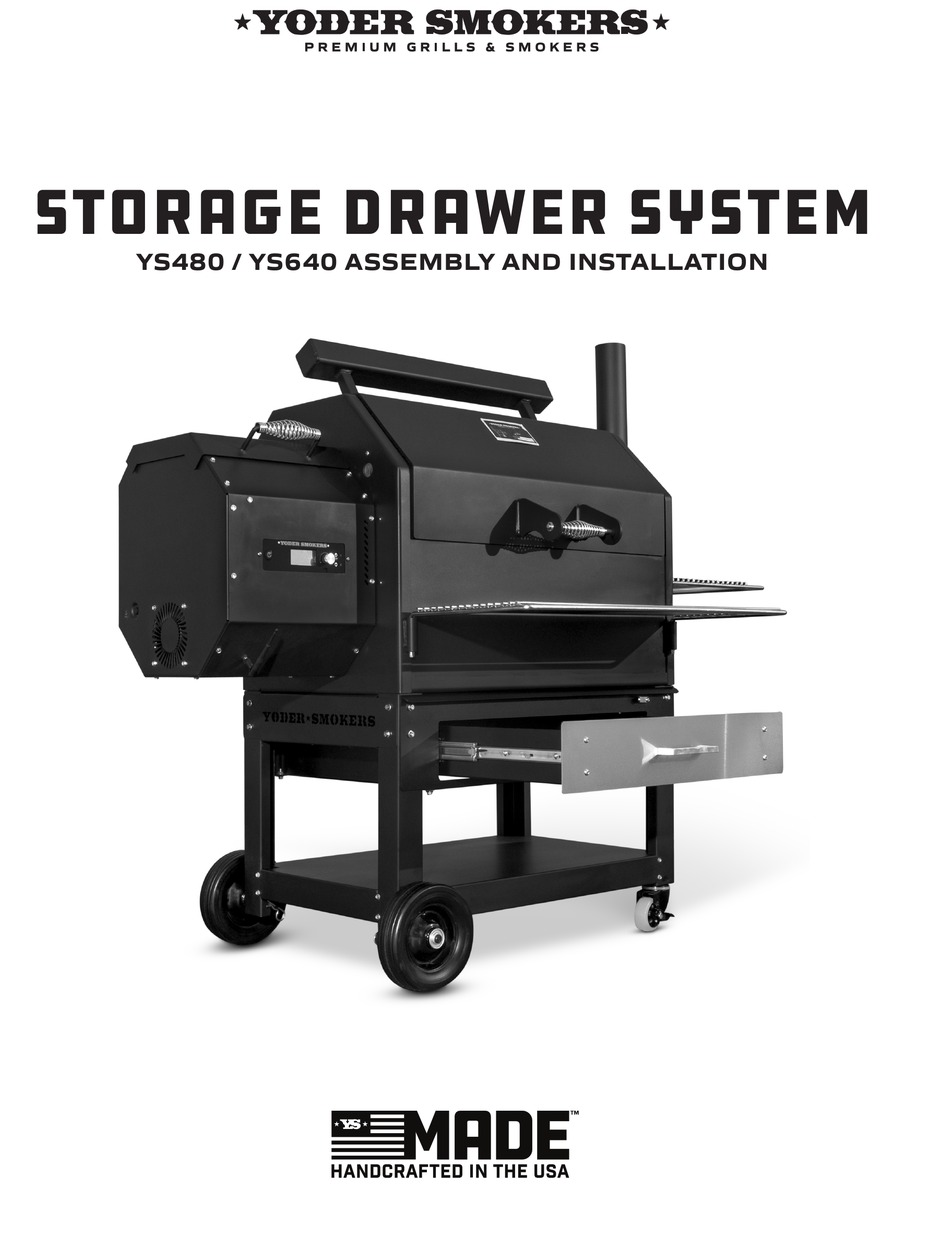

  • Page 1 YS480 / YS640 ASSEMBLY AND INSTALLATION...

  • Page 2: Recommended Tools

    RECOMMENDED TOOLS NUT DRIVERS SOCKET WRENCH 3” SOCKET EXTENSION 5/16” SOCKET 3/8” SOCKET 7/16” WRENCH IT IS RECOMMENDED THAT TWO PEOPLE PERFORM THE INSTALLATION...

  • Page 3: Parts + Hardware

    DRAWER LINER DRAWER DRIP EDGE FRONT SKIRT PANEL REAR SKIRT PANEL HARDWARE KIT REPLACEMENT PARTS INDEX 1/4-20 BOLTS..QTY 15 1/4-20 NUTS....QTY 15 PART YS640 YS480 DRAWER / LINER A93309 A93309-102 ASSEMBLY REAR SKIRT PANEL A93307 A93307-102 FRONT SKIRT PANEL A93308 A93308-102...
  • Page 4 Step 01 Remove drawer from drawer liner using the release levers on the drawer slide rails as shown in Figure 01. Set the drawer aside for later installation. RELEASE LEVER FIG 01 Step 02 Locate hardware kit, front panel assembly, and drawer liner assembly. Secure front panel to drawer liner using provided ¼-20 bolts and nuts (Qty 2) as shown in Figure 02.
  • Page 5 Step 03 Secure the drip edge to the drawer liner/front panel assembly using ¼-20 bolts and nuts (Qty. 3) as shown in Figure 3. (Note drip edge orientation on Figure 4) DRIP EDGE FIG 03 DRIP EDGE (END VIEW) FIG 04...
  • Page 6 Step 04 Using a 3/8” socket and 7/16” wrench, REMOVE the rear skirt panel by removing the 4 bolts and nuts as shown in Figure 05. FIG 05 Step 05 Install the new rear skirt panel (See Figure 06) using the provided ¼-20 bolts and nuts (Qty 4).
  • Page 7 Step 06 Using a 3/8” socket and 7/16” wrench, REMOVE the front skirt panel from the cooker by removing the 4 bolts and nuts as shown in Figure 07. FIG 07 Step 07 Install the new front panel/drawer liner assembly (See Figure 08) using the provided ¼-20 bolts and nuts (Qty 4).
  • Page 8 Step 08 Secure the drawer liner assembly to the rear skirt panel using ¼-20 bolts and nuts (Qty 2) as shown in Figure 09. FIG 09 Step 09 Install the drawer assembly into the drawer liner by aligning the rails on the drawer with the tracks on the drawer liner assembly and pushing the drawer close.
  • Page 9 GREASE BUCKET AND COOKING GRATE HOOKS 2ND LEVEL COOKING GRATE STORAGE HOOKS GREASE BUCKET HOOK...
  • Page 10 FOR PRODUCT SUPPORT: 877.409.6337 (Ext. 2) customerservice@yodersmokers.com W W W . Y O D E R S M O K E R S . C O M...
