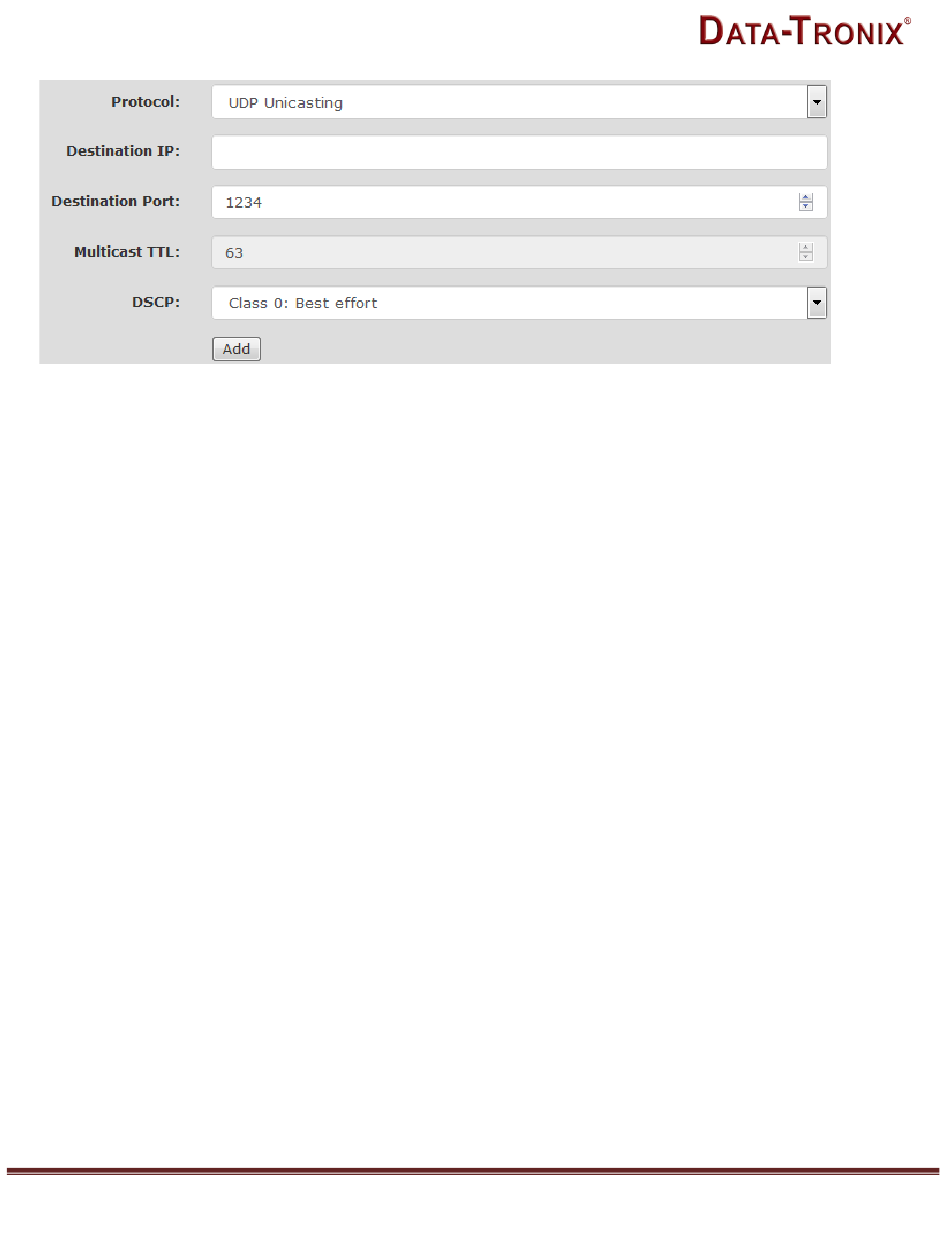

Unicasting Setup
Unicast via UDP/RTP/TCP by using the drop-down tool to select the desired method
Enter 'Destination IP', 'Destination Port', and select the desired DSCP from the drop-down list. Default is Class
0: Best effort.
Click "Add" after setting and the IP will be shown in the Streaming List.
To remove a Destination IP – simply select the IP address and Click 'Remove'.
Note: Add up to 16 Destinations to the Streaming List.
***SAVE AND CONFIRM all changes made on the Streaming Setup page
NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0
Page 17
