Connecting to the GUI Interface:

Factory Default IP: 192.168.1.9

1. Connect an Ethernet cable directly (no Cross Over cable required) to the Web Management
Port on the rear panel of the encoder or connect the Ethernet cable to an Ethernet switch.
Connect an Ethernet Cable to your PC/Laptop.
2. Modify your PC/Laptop IP address to 192.168.1.100.
3. Enter '192.168.1.9:8888' into your web browser.
4. Enter GUI and make required device changes.
5. Save all changes as required, upload and reboot changes.
6. Verify parameters then end web session.

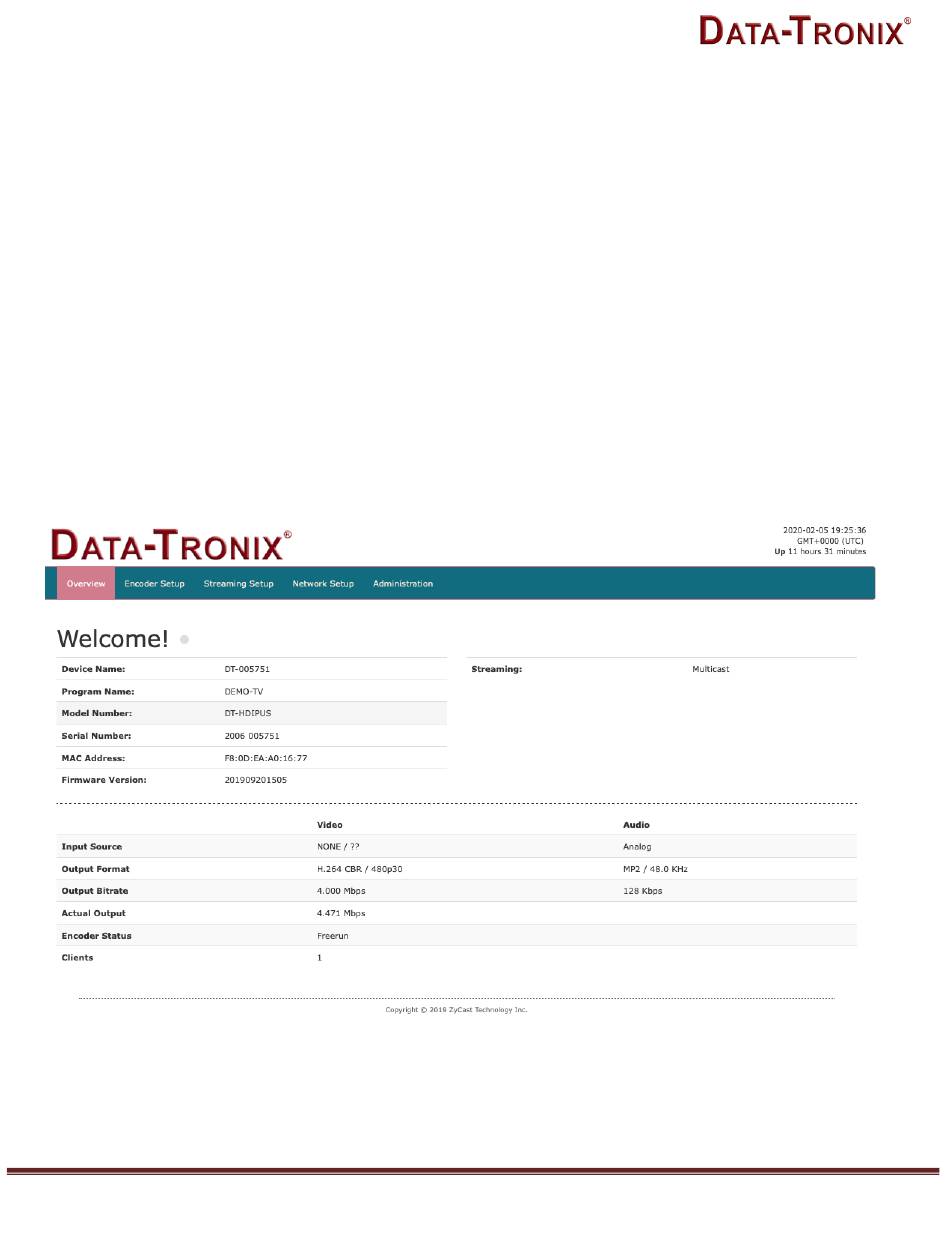

Overview / Welcome page displays current status of the encoder including Input type, Output format type,
Output Bitrate, Actual Output, Encoder Status, and # of connected Clients.
