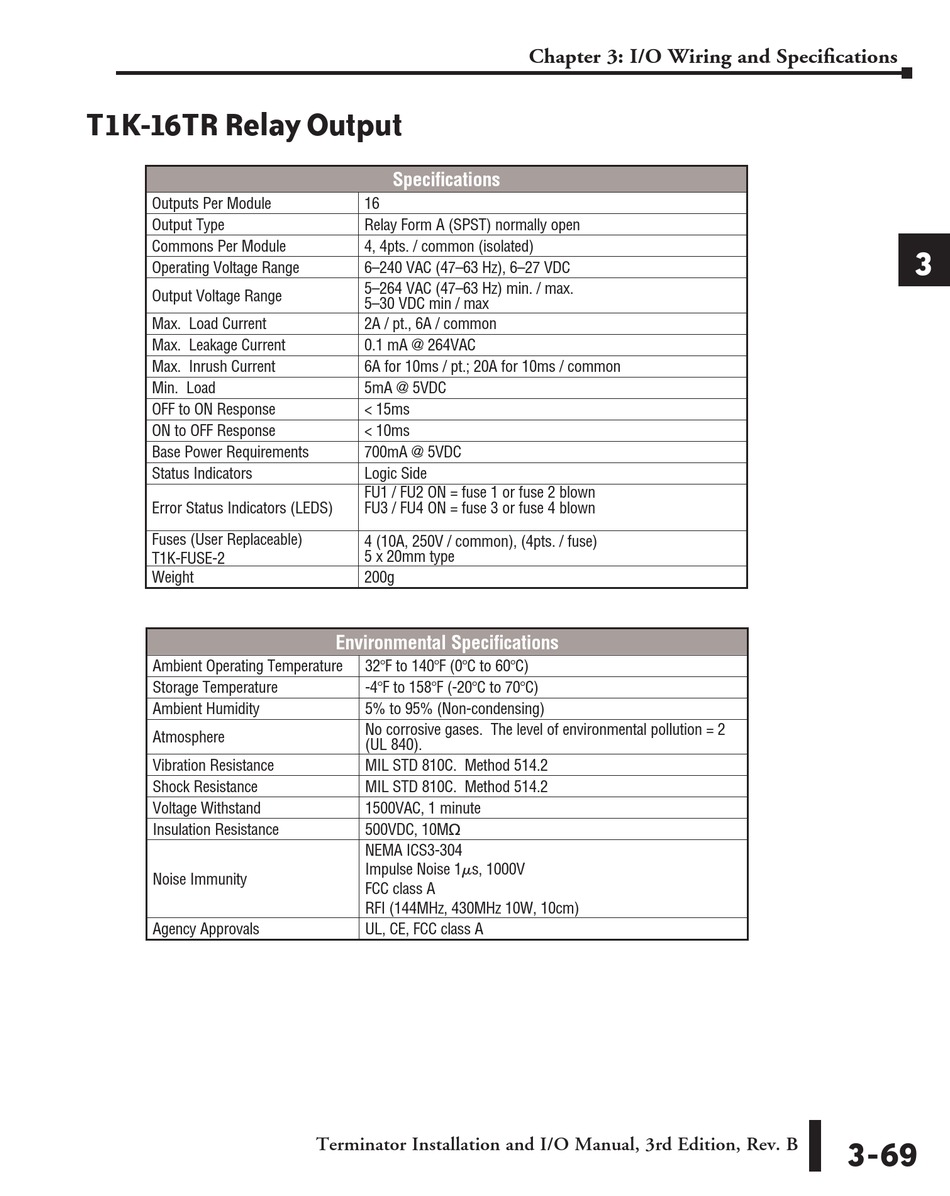

T1K-16TR Relay Output

Outputs Per Module
Output Type
Commons Per Module
Operating Voltage Range
Output Voltage Range
Max. Load Current
Max. Leakage Current
Max. Inrush Current
Min. Load
OFF to ON Response
ON to OFF Response
Base Power Requirements
Status Indicators
Error Status Indicators (LEDS)
Fuses (User Replaceable)
T1K-FUSE-2
Weight
Ambient Operating Temperature
Storage Temperature
Ambient Humidity
Atmosphere
Vibration Resistance
Shock Resistance
Voltage Withstand
Insulation Resistance
Noise Immunity
Agency Approvals
Specifications
16
Relay Form A (SPST) normally open
4, 4pts. / common (isolated)
6–240 VAC (47–63 Hz), 6–27 VDC
5–264 VAC (47–63 Hz) min. / max.
5–30 VDC min / max
2A / pt., 6A / common
0.1 mA @ 264VAC
6A for 10ms / pt.; 20A for 10ms / common
5mA @ 5VDC
< 15ms
< 10ms
700mA @ 5VDC
Logic Side
FU1 / FU2 ON = fuse 1 or fuse 2 blown
FU3 / FU4 ON = fuse 3 or fuse 4 blown
4 (10A, 250V / common), (4pts. / fuse)
5 x 20mm type
200g
Environmental Specifications
32!F to 140!F (0!C to 60!C)
-4!F to 158!F (-20!C to 70!C)
5% to 95% (Non-condensing)
No corrosive gases. The level of environmental pollution = 2
(UL 840).
MIL STD 810C. Method 514.2
MIL STD 810C. Method 514.2
1500VAC, 1 minute
500VDC, 10Mq
NEMA ICS3-304
Impulse Noise 1es, 1000V
FCC class A
RFI (144MHz, 430MHz 10W, 10cm)
UL, CE, FCC class A
Terminator Installation and I/O Manual, 3rd Edition, Rev. B
Chapter 3: I/O Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3-69
