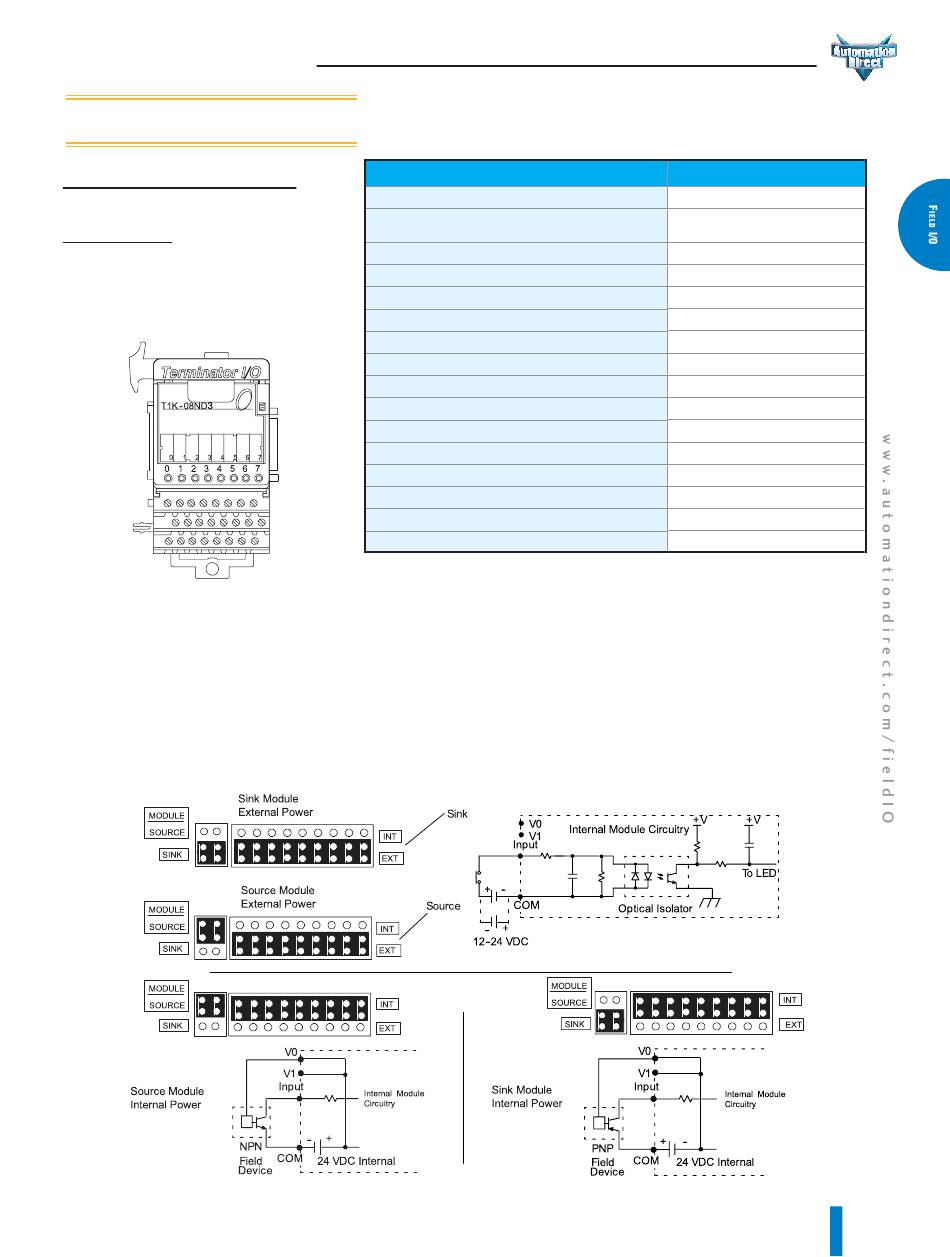

DC I
M
NPUT
T1K-08ND3
8-point 12/24VDC
input module
The 8-point DC module uses a T1K08B
or T1K-08B-1 base, which is purchased
separately.
Note: When using external power, the
module can be wired to either sink
current or source current regardless of
the module's sink/source jumper posi-
tion. When using internal power, the
sink/source jumpers determine the
module's configuration.
ODULES
Inputs Per Module
Commons, Non-isolated
Operating Voltage Range
Input Voltage Range
Peak Range
Input Current (Typical)
Input Impedance
ON Voltage Level
OFF Voltage Level
Min. ON Current
Max. OFF Current
OFF to ON Response
ON to OFF Response
Base Power Required
Status Indicators
Weight

Terminator I/O Specifications

Module Specifications
External Power
Internal Power
T1K-08ND3
8 (sink/source)
Ext. power: 2, isolated (4 pts. /com)
Int. power: 2, all 8 pts. internally connected
12-24VDC
10.8-26.4 VDC min./max.
30 VDC
4mA @ 12 VDC, 8.5mA @ 24 VDC
2.8 K ohm
> 10.0 VDC
< 2.0 VDC
4mA
0.5mA
2-8ms, Typ: 4ms
2-8ms, Typ: 4ms
35mA @ 5VDC
Logic side
70g
Universal Field I/O
655
